REAR WHEEL (MODEL AY50WR K1 / K2 / AY50W K3)

REAR WHEEL (MODEL AY50WK4) FOR SUZUKI KATANA 50 2002

REAR WHEEL (MODEL AY50)

Item numbers

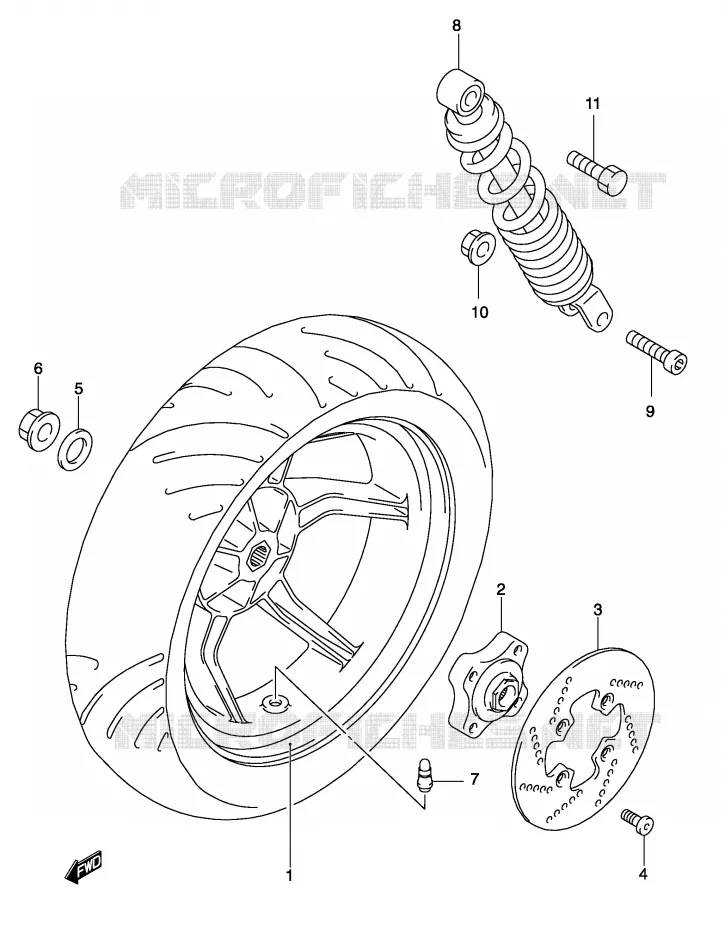

REAR WHEEL (MODEL AY50WK4) Suzuki SCOOTER 50 KATANA 2002 AY50WRK2(P19)

1

WHEEL COMP, REAR (13M/CXMT3.50

64110-02EB0-E0G 6411002EB0E0G

Not available

1

WHEEL COMP, REAR (13M/CXMT3.50

64110-02EB0-EE3 6411002EB0EE3

Not available

2

HOUSING, DISC PLATE

69220-02E00-E91 6922002E00E91

Not available

3

DISC, REAR BRAKE

69211-35E00-000 6921135E00000

Not available

4

BOLT

09106-08154-000

09106-08155-000

$6,97

Unit Price

5

WASHER

09160-02E00-E0Z 0916002E00E0Z

Not available

6

NUT

08319-31168-000

08319-3116A-000

$25,97

Unit Price

7

DISCONTINUE

43130-35E00-000

Not available

8

ABSORBER ASSY, REAR SHOCK

62100-35E00-163 6210035E00163

Not available

9

BOLT, LOWER

D7107-10455-000 D710710455000

Not available

10

NUT

D8319-60108-000 D831960108000

Not available

11

BOLT, UPPER

D1007-10405-000 D100710405000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the REAR WHEEL (MODEL AY50WK4) of your Suzuki of KATANA. Let us know if you have any questions.
