INDICATORS (E4, E21, E25, E34)

INDICATORS (E18, E39) FOR SUZUKI DR 500 1984

INDICATORS (E22)

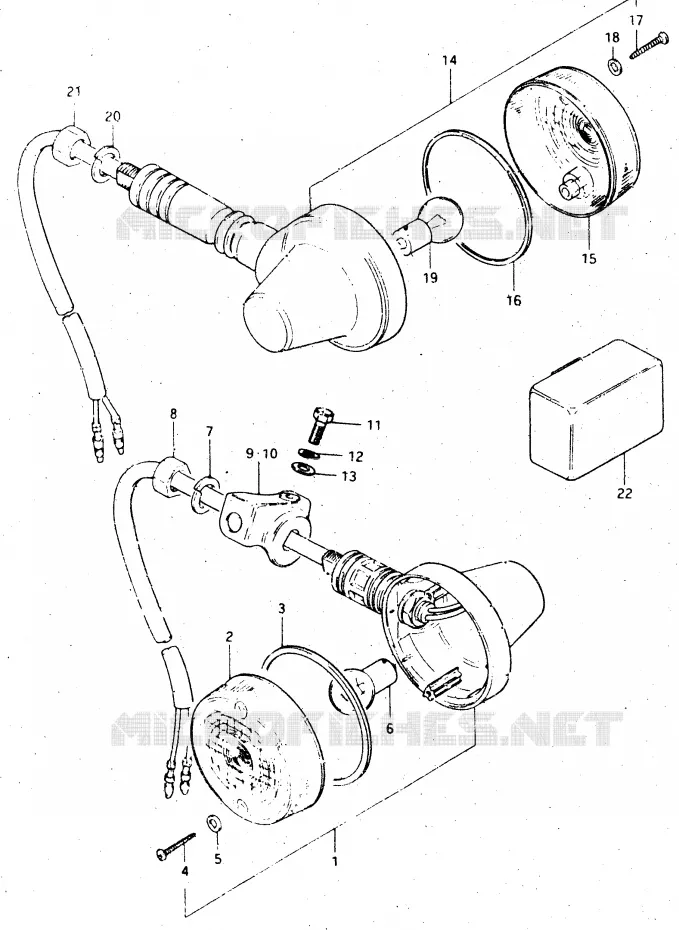

INDICATORS (E18, E39) Suzuki MOTO 500 DR 1984 DR500SE(E1)
1
LAMP, FRONT TURN SIGNAL

35601-37481-000   3560137481000

3560137481000
Not available
1
LAMP, FRONT TURN SIGNAL

35601-48551-000   3560148551000

3560148551000
Not available
2
LENS, FR TURNSIGNAL LAMP

35612-48530-000  

35612-01A70-000
 3561248530000

Unit Price

2
LENS

35612-48510-000   3561248510000

3561248510000
Not available
3
GASKET
GASKET

35613-28620-000   3561328620000

3561328620000

Unit Price

4
SCREW

03211-04258-000  

03211-0425B-000
 0321104258000

Unit Price

5
GASKET
GASKET

35627-43010-000   3562743010000

3562743010000

Unit Price

6
BULB (6V, 21W)

09471-06033-000   0947106033000

0947106033000
Not available
7
WASHER, LOCK

08321-21125-000  

08321-0112A-000
 0832121125000

Unit Price

8
NUT

08310-12125-000  

08310-0012A-000
 0831012125000

Unit Price

9
DISCONTINUED

51251-29900-08C   512512990008C

512512990008C
Not available
10
DISCONTINUED

51252-29900-08C   512522990008C

512522990008C
Not available
11
BOLT, FRONT

01107-06128-000   0110706128000

0110706128000
Not available
12
LOCK WASHER

08321-21068-000   0832121068000

0832121068000
Not available
13
WASHER

08322-21068-000   0832221068000

0832221068000
Not available
14
LAMP, REAR TURN SIGNAL

35603-37482-000   3560337482000

3560337482000
Not available
15
LENS

35612-48510-000   3561248510000

3561248510000
Not available
16
GASKET
GASKET

35613-28620-000   3561328620000

3561328620000

Unit Price

17
SCREW

03211-04258-000  

03211-0425B-000
 0321104258000

Unit Price

18
GASKET
GASKET

35627-43010-000   3562743010000

3562743010000

Unit Price

19
BULB (6V, 21W)

09471-06033-000   0947106033000

0947106033000
Not available
20
WASHER, LOCK

08321-21125-000  

08321-0112A-000
 0832121125000

Unit Price

21
NUT

08310-12125-000  

08310-0012A-000
 0831012125000

Unit Price

22
RELAY, TURN SIGNAL

38610-38200-000   3861038200000

3861038200000
Not available
22
RELAY, TURN SIGNAL

38610-48611-000   3861048611000

3861048611000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the INDICATORS (E18, E39) of your Suzuki of DR. Let us know if you have any questions.

Genuine parts for Suzuki 500 DR 1984
