TAIL LIGHT (E39)

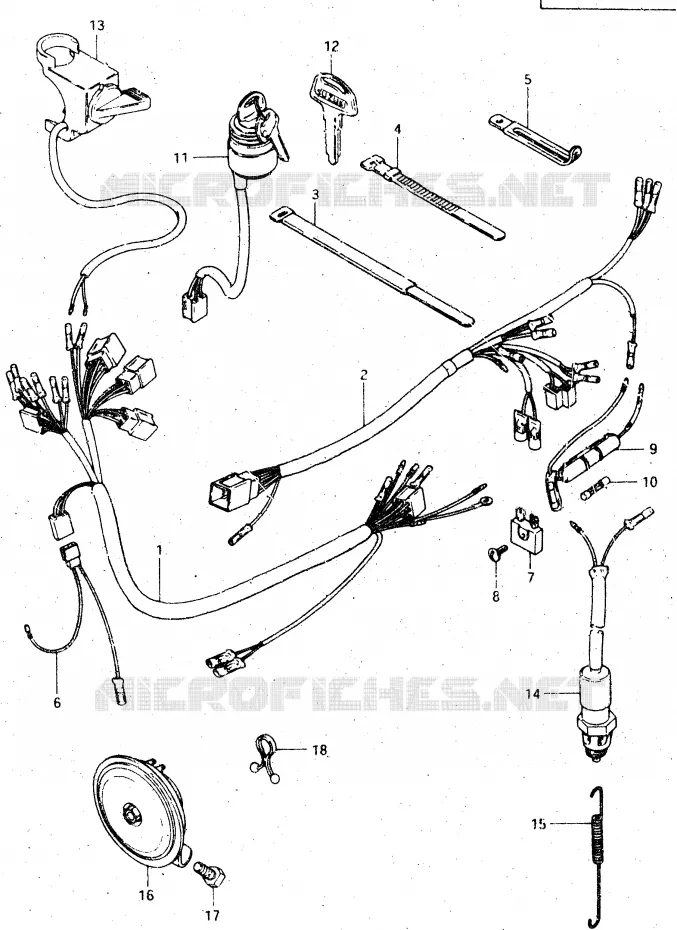

WIRING HARNESS FOR SUZUKI DR 500 1984

RIGHT SWITCH - HANDGRIP

WIRING HARNESS NO.1

36610-37410-000 3661037410000

Not available

WIRING HARNESS NO.1

36610-37420-000 3661037420000

Not available

WIRING HANRESS NO.2

36620-37410-000 3662037410000

Not available

CL CABLE LOW CLAMP

09407-18301-000

09407-18302-000

$6,97

Unit Price

CLAMP, CARBURETOR AIR VENT

09407-11301-000 0940711301000

Not available

FUEL HOSE CLAMP
CLAMP

09407-12402-000 0940712402000

$5,97

Unit Price

CLAMP

09403-09307-000

09403-09328-000

$3,97

Unit Price

LEAD WIRE, DC LIGHTING

36853-37220-000 3685337220000

Not available

LEAD WIRE, DC LIGHTING

36853-37230-000 3685337230000

Not available

LEAD WIRE, AC LIGHTING

36853-37240-000 3685337240000

Not available

LEAD WIRE, DC LIGHTING

36853-37280-000 3685337280000

Not available

LEAD WIRE, AC LIGHTING

36853-37290-000 3685337290000

Not available

32880-19X50
RECTIFIRE ASSY

32800-19063-000

Not available

DISCONTINUE
SCREW

09125-05043-000 0912505043000

Not available

CASE ASSY, FUSE

36740-15011-000 3674015011000

$20,97

Unit Price

FUSE (15A)

09481-13001-000 0948113001000

Not available

SWITCH ASSY, IGNITION

37110-48501-000 3711048501000

$128,97

Unit Price

SWITCH ASSY, IGNITION

37110-48511-000 3711048511000

Not available

SWITCH ASSY, IGNITION

37110-48521-000 3711048521000

Not available

KEY, BLANK

37145-19710-000

37146-49300-000

$24,97

Unit Price

DISCONTINUED

37830-37410-000 3783037410000

Not available

SWITCH ASSY, STOP LAMP

37740-48071-000 3774048071000

$36,97

Unit Price

BRAKE SWITCH SPRING
SPRING

09443-06016-000 0944306016000

$5,97

Unit Price

HORN ASSY

38500-37284-000 3850037284000

Not available

BOLT, FRONT

01107-06128-000 0110706128000

Not available

CLIP

09408-00020-000 0940800020000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the WIRING HARNESS of your Suzuki of DR. Let us know if you have any questions.
