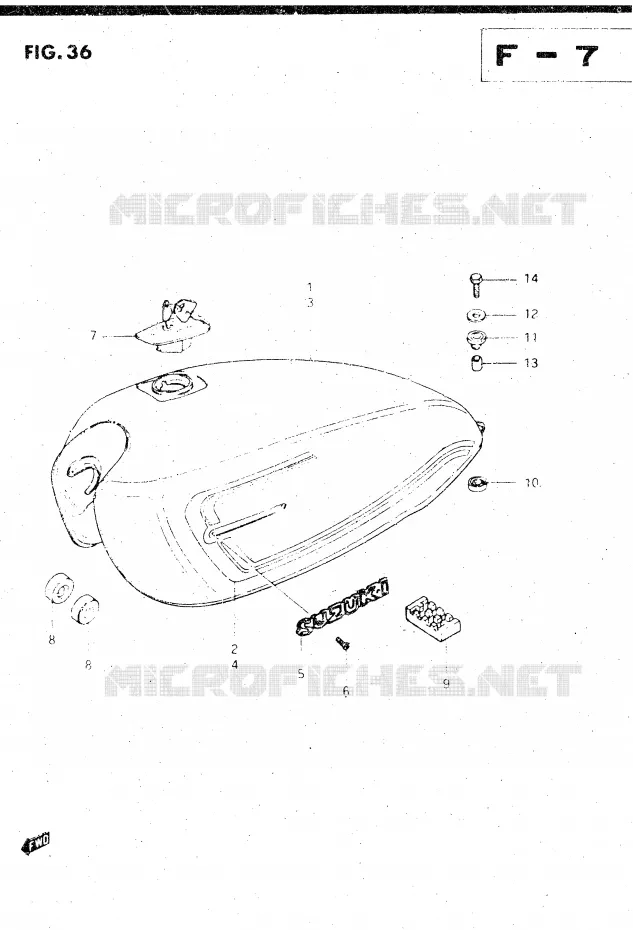

FUEL TANK (MODEL Z) FIG36 (F-7) : MODEL D

FUEL TANK (MODEL D) FOR SUZUKI GS-E 500 1982

SEAT

FUEL TANK (MODEL D) Suzuki MOTO 500 GS-E 1982 GS500EZ(Z/D)
1
TANK, FUEL (RED)

44101-34820-00J   441013482000J

441013482000J
Not available
1
TANK, FUEL (SILVER)

44101-34820-13Z   441013482013Z

441013482013Z
Not available
2
TAPE SET

68110-34520-69P   681103452069P

681103452069P
Not available
3
TANK, FUEL (BLUE)

44100-34520-05H   441003452005H

441003452005H
Not available
4
TAPE SET

68110-34520-89S   681103452089S

681103452089S
Not available
5
EMBLEM, FUEL TANK
EMBLEM

68111-11400-000   6811111400000

6811111400000

Unit Price

6
SCREW

02132-03065-000  

02122-0306B-000
 0213203065000

Unit Price

7
CAP SET, FUEL TANK

44200-49017-KEY  

44200-49811-000
 4420049017KEY

Unit Price

8
CUSHION
CUSHION

09329-10007-000  

09329-10026-000
 0932910007000

Unit Price

9
CUSHION,FUEL TANK CTR
CUSHION, FUEL TANK CTR

44541-34500-000  

44541-34501-000
 4454134500000

Unit Price

10
CUSHION<br />CUSHION, REAR LOWER
CUSHION
CUSHION, REAR LOWER

09320-14013-000   0932014013000

0932014013000

Unit Price

11
CUSHION(9X24X18)
CUSHION(9X24X18)

09320-10020-000  

09320-10071-000
 0932010020000

Unit Price

12
WASHER, 6.5X24X1.6

09160-06004-000  

09160-06134-000
 0916006004000

Unit Price

13
SPACER, 6.5X9X18

09180-06072-000  

09180-06271-000
 0918006072000

Unit Price

14
BOLT FIG.48 (G-10) : GSX1100XD/EXD FIG.49 (G-11) : GSX1100ESD

01107-06308-000   0110706308000

0110706308000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FUEL TANK (MODEL D) of your Suzuki GSE 500 of GS-E. Let us know if you have any questions.
