CYLINDER

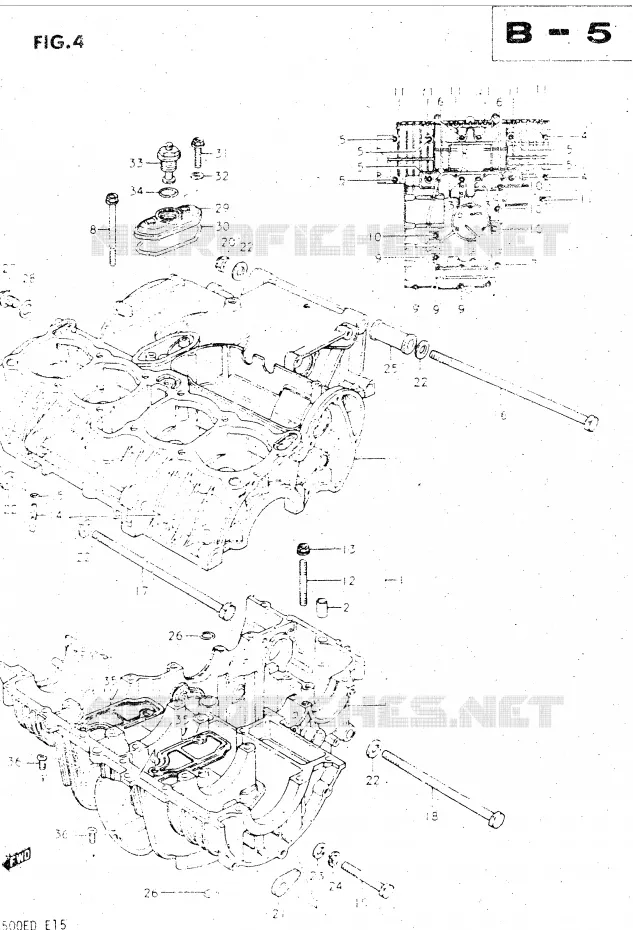

CRANKCASE FOR SUZUKI GS-E 500 1982

LEFT CRANKCASE COVER

DISCONTINUED

11300-47812-000 1130047812000

Not available

09206-13001-000

04211-13189-000

$3,97

Unit Price

BOLT, ENG MOUNT
BOLT (8X120)

09103-08109-000 0910308109000

$4,97

Unit Price

BOLT

01517-08908-000

01550-08907-000

$6,97

Unit Price

BOLT

01517-08708-000

01550-08707-000

$6,97

Unit Price

.BOLT, RH

01517-08558-000 0151708558000

Not available

BOLT

01517-08458-000

01550-08457-000

$6,97

Unit Price

BOLT

01517-06908-000

01517-06907-000

$6,97

Unit Price

BOLT

01517-06608-000

01550-0660A-000

$4,97

Unit Price

BOLT

01517-06508-000

01550-06503-000

$3,97

Unit Price

BOLT

01517-06408-000

01550-06407-000

$4,97

Unit Price

STUD BOLT

01421-06408-000 0142106408000

Not available

NUT 6MM

09159-06017-000

08316-10063-000

$3,97

Unit Price

DISCONTINUE
NOZZLE, OIL GALLERY

09364-05005-000 0936405005000

Not available

RING
O RING

09280-03003-000 0928003003000

$3,97

Unit Price

DISCONTINUED

09100-10144-000 0910010144000

Not available

DISCONTINUED

09100-10138-000 0910010138000

Not available

BOLT(10X165)

09100-10137-000

09100-10078-000

$20,97

Unit Price

BOLT

01107-10555-000 0110710555000

Not available

NUT

09159-10028-000 0915910028000

Not available

ENGINE MOUNT NUT N02
NUT

09159-10020-000 0915910020000

$10,97

Unit Price

WASHER

08322-11105-000 0832211105000

Not available

DISCONTINUED

09160-10054-000 0916010054000

Not available

LOCK WASHER

08321-21105-000 0832121105000

Not available

SPACER (L:50)

11610-45000-000 1161045000000

Not available

KICK GEAR O RING
O RING, OIL GALLERY

09280-13001-000 0928013001000

$6,97

Unit Price

PLUG

09247-14012-000

09247-14026-000

$6,97

Unit Price

SPARK PLUG GASKET
GASKET

09168-14004-000 0916814004000

$2,97

Unit Price

DISCONTINUE
HOUSING, OIL PRESSURE SWITCH

16445-45000-000 1644545000000

Not available

O RING, PRESSURE SWITCH HOUSING
O RING

16448-45000-000 1644845000000

$19,97

Unit Price

BOLT (6*25)

01517-06258-000 0151706258000

Not available

GASKET

09168-06015-000

Not available

SWITCH ASSY, OIL PRESSURE

37820-45060-000

37820-45061-000

$46,97

Unit Price

CENT SPACER O RING
O RING

09280-19001-000 0928019001000

$2,97

Unit Price

PLATE, OIL SEPARATOR

11521-47000-000 1152147000000

Not available

.SCREW

02112-06088-000 0211206088000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CRANKCASE of your Suzuki GSE 500 of GS-E. Let us know if you have any questions.
