REAR CALIPER

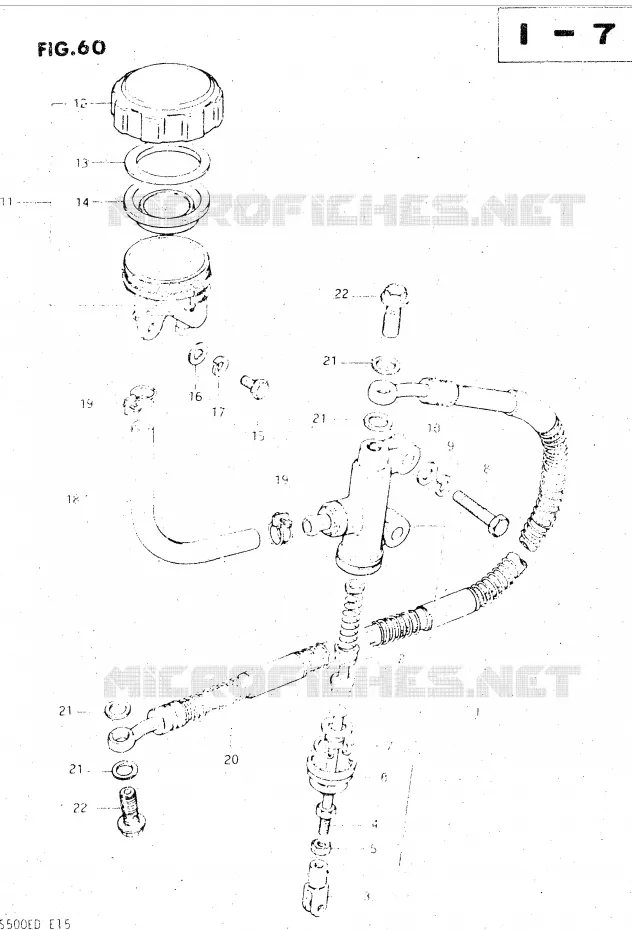

REAR BRAKE MASTER CYLINDER FOR SUZUKI GS-E 500 1982

OPTIONS

REAR BRAKE MASTER CYLINDER Suzuki MOTO 500 GS-E 1982 GS500EZ(Z/D)
1
DISCONTINUE

69600-47003-000  

6960047003000
Not available
2
PISTON & CUP SET

69820-45820-000   6982045820000

6982045820000
Not available
3
DISCONTINUE<br />YOKE
DISCONTINUE
YOKE

69692-34300-000   6969234300000

6969234300000
Not available
4
DISCONTINUE<br />ROD, PUSH
DISCONTINUE

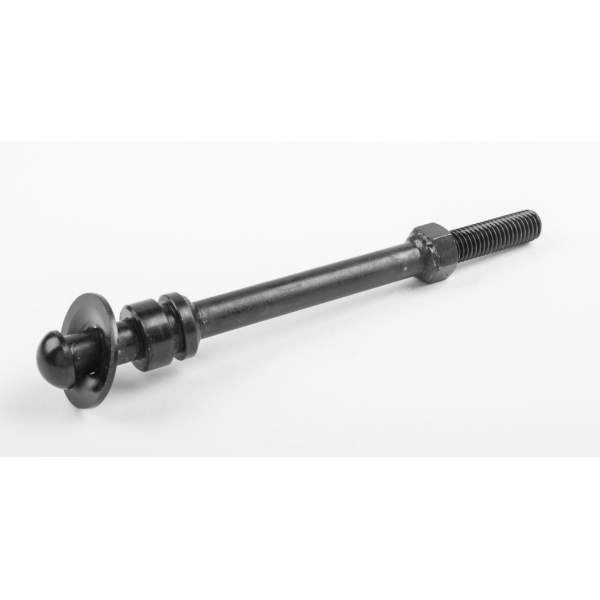

ROD, PUSH

69670-45001-000   6967045001000

6967045001000
Not available
5
NUT

69693-34300-000   6969334300000

6969334300000
Not available
6
RR MASTER CYL BOOT<br />BOOT
RR MASTER CYL BOOT
BOOT

69691-45001-000   6969145001000

6969145001000

Unit Price

7
CIRCLIP
CIRCLIP

51162-70040-000   5116270040000

5116270040000

Unit Price

8
BOLT, LOWER

01107-08308-000   0110708308000

0110708308000
Not available
9
8 MM LOCK WASHER

08321-21088-000  

08321-01087-000
 0832121088000

Unit Price

10
WASHER

08322-11088-000  

08322-01087-000
 0832211088000

Unit Price

11
TANK ASSY, RESERVOIR

69740-34200-000   6974034200000

6974034200000
Not available
12
.CAP

59669-18605-000   5966918605000

5966918605000
Not available
13
PLATE, DIAPHRAGM
PLATE, DIAPHRAGM

59668-18441-000   5966818441000

5966818441000

Unit Price

14
DIAPHRAGM
DIAPHRAGM

59667-18441-000   5966718441000

5966718441000

Unit Price

15
BOLT, FENDER REAR

01107-06168-000   0110706168000

0110706168000
Not available
16
WASHER

08322-21068-000   0832221068000

0832221068000
Not available
17
LOCK WASHER

08321-21068-000   0832121068000

0832121068000
Not available
18
DISCONTINUED

69731-34500-000   6973134500000

6973134500000
Not available
19
CLAMP

09400-16302-000  

09400-16304-000
 0940016302000

Unit Price

20
HOSE, REAR BRAKE

69480-34503-000   6948034503000

6948034503000
Not available
21
WASHER FIG.84 (J-15) : GSX1100Z/D/XD

09161-10005-000   0916110005000

0916110005000
Not available
22
UNION

09360-10007-000  

09360-10061-000
 0936010007000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the REAR BRAKE MASTER CYLINDER of your Suzuki GSE 500 of GS-E. Let us know if you have any questions.
