SEAT (MODEL E) REFER TO FIG39 FOR MODEL F

SEAT (MODEL Z) FOR SUZUKI GSX-E 500 1985

REAR FAIRING - SEAT COWL (GSX500EE) REFER TO FIG41 (H-3) FOR GSX500ESE

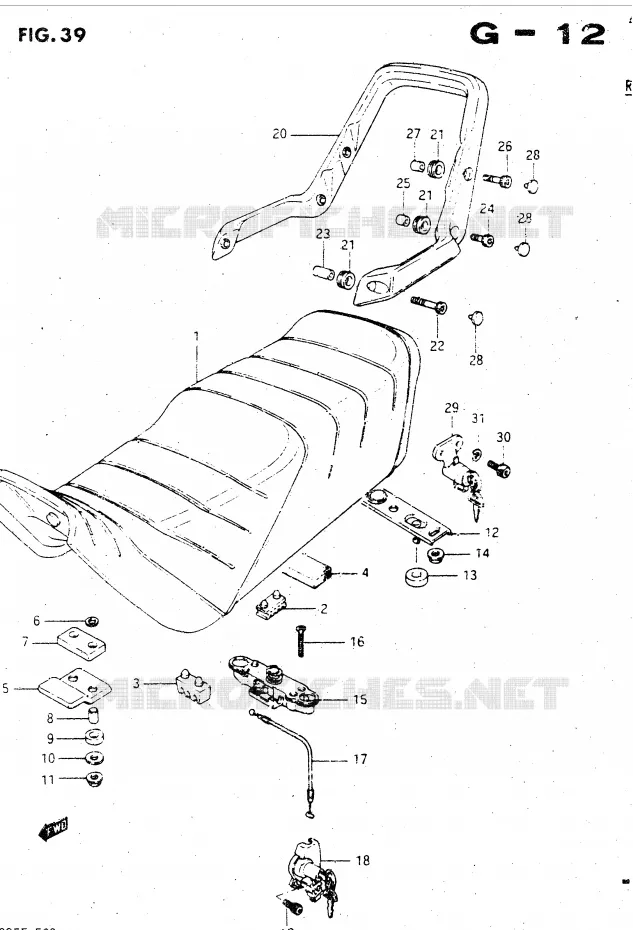

SEAT (MODEL Z) Suzuki MOTO 500 GSX-E 1985 GSX500ESF(E39)
1
DISCONTINUED

45100-43402-48H   451004340248H

451004340248H
Not available
1
DISCONTINUED

45100-43402-53L   451004340253L

451004340253L
Not available
1
SEAT ASSY (BLAC)

45100-43412-48H   451004341248H

451004341248H
Not available
1
SEAT ASSY (BLUE)

45100-43412-53L   451004341253L

451004341253L
Not available
2
CUSHION,SEAT(40X20X15)<br />CUSHION
CUSHION, SEAT(40X20X15)
CUSHION

45149-31300-000   4514931300000

4514931300000

Unit Price

3
CUSHION,SUPPORT(50X25X32)<br />CUSHION
CUSHION, SUPPORT(50X25X32)
CUSHION

45149-45330-000   4514945330000

4514945330000

Unit Price

4
CUSHION(30X60X10)
HOLDER, BATTERY STOP

94982-29400-000  

9498229400000
Not available
5
PLATE, FRONT HOOK

45119-43401-000   4511943401000

4511943401000
Not available
6
WASHER

08322-21068-000   0832221068000

0832221068000
Not available
7
CUSHION, UPPER

45125-13600-000   4512513600000

4512513600000
Not available
8
SPACER(6.1X8X12)

09180-06035-000  

09180-06249-000
 0918006035000

Unit Price

9
CUSHION, LOWER

09324-26470-000   0932426470000

0932426470000
Not available
10
WASHER(6.5X18X1.6)

09160-06006-000  

09160-06084-000
 0916006006000

Unit Price

11
NUT 6MM

08316-16066-000  

08319-31067-000
 0831616066000

Unit Price

12
STRIKER, SEAT LOCK

45210-43400-000   4521043400000

4521043400000
Not available
13
CUSHION

45213-43400-000   4521343400000

4521343400000
Not available
14
NUT

08316-26066-000  

08316-10067-000
 0831626066000

Unit Price

15
LOCK ASSY,SEAT STRIKER<br />STRIKER, SEAT LOCK
LOCK ASSY, SEAT STRIKER
STRIKER, SEAT LOCK

45220-13601-000   4522013601000

4522013601000

Unit Price

16
SCREW

02112-06306-000  

02112-0630A-000
 0211206306000

Unit Price

17
DISCONTINUE

45280-43400-000  

4528043400000
Not available
18
DISCONTINUED

95700-43400-KEY   9570043400KEY

9570043400KEY
Not available
19
BOLT

07110-06165-000  

07130-0616B-000
 0711006165000

Unit Price

20
HANDLE, PILLION RIDER

46210-43400-000   4621043400000

4621043400000
Not available
21
DISCONTINUE
GROMMET

45522-43401-000   4552243401000

4552243401000
Not available
22
BOLT

09106-08037-000  

07130-0855B-000
 0910608037000

Unit Price

23
SPACER

46219-43400-000   4621943400000

4621943400000
Not available
24
BOLT

09106-08042-000  

07130-0835B-000
 0910608042000

Unit Price

25
SPACER

46219-43420-000   4621943420000

4621943420000
Not available
26
BOLT

09106-08039-000  

07130-0840B-000
 0910608039000

Unit Price

27
SPACER

46219-43411-000   4621943411000

4621943411000
Not available
28
CAP,MUF SPRT BOLT
CAP, MUF SPRT BOLT

09250-06008-000  

09250-06016-000
 0925006008000

Unit Price

29
LOCK ASSY, HELMET

95700-43410-KEY   9570043410KEY

9570043410KEY
Not available
30
BOLT

07110-06165-000  

07130-0616B-000
 0711006165000

Unit Price

31
08321-0106A
.LOCK WASHER

08321-21064-000  

0832121064000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the SEAT (MODEL Z) of your Suzuki of GSX-E. Let us know if you have any questions.

Genuine parts for Suzuki 500 GSX-E 1985
