CYLINDER

CRANKCASE FOR SUZUKI GSX-E 500 1985

CRANKCASE COVER

DISCONTINUED

11300-43831-000 1130043831000

Not available

CLUTCH COVER PI **S1
PIN

09206-13004-000 0920613004000

$3,97

Unit Price

PIN, 11 X20

09206-11005-000

09206-11017-000

$12,97

Unit Price

BOLT (6X100)

09103-06060-000 0910306060000

$4,97

Unit Price

DISCONTINUED

09103-08061-000 0910308061000

Not available

BOLT (8X110)

09103-08122-000 0910308122000

$6,97

Unit Price

DISCONTINUED

09103-08091-000 0910308091000

Not available

BOLT

07110-08556-000

07130-0855B-000

$5,97

Unit Price

BOLT

01517-06404-000

01550-0640A-000

$3,97

Unit Price

BOLT

01517-06555-000

01550-06553-000

$4,97

Unit Price

BOLT

01517-06855-000 0151706855000

Not available

BOLT

01517-06955-000 0151706955000

Not available

.BOLT (8X60)

01517-08605-000 0151708605000

Not available

BOLT

01517-08905-000

01550-0890B-000

$7,97

Unit Price

DISCONTINUED

01421-06505-000 0142106505000

Not available

NUT 6MM

08316-16064-000

08319-31067-000

$3,97

Unit Price

GASKET, OIL GALLERY
GASKET

09168-06018-000 0916806018000

$2,97

Unit Price

O RING

09280-04004-000 0928004004000

$2,97

Unit Price

JET, OIL GALLERY
JET, OIL GALLERY MISSION

09493-20014-000 0949320014000

$23,97

Unit Price

KICK GEAR O RING
O RING

09280-13001-000 0928013001000

$6,97

Unit Price

WASHER, CL RLSE CAM S

08211-10201-000

09181-10195-000

$3,97

Unit Price

JET, OIL GALLERY CRANK SHAFT

09493-28011-000 0949328011000

Not available

PLUG, OIL GALLERY

09248-16003-000

09248-16007-000

$22,97

Unit Price

O RING(D:2.4, ID:16.8)
O RING

09280-17002-000 0928017002000

$8,97

Unit Price

BOLT (10X160)

09100-10136-000 0910010136000

Not available

BOLT(10X165)

09100-10137-000

09100-10078-000

$20,97

Unit Price

BOLT, ENG MTG, L195

09103-10072-000

09103-10118-000

$17,97

Unit Price

01500-10353
DISCONTINUED

01107-10355-000

Not available

NUT

08319-31105-000

08319-3110A-000

$3,97

Unit Price

ENGINE MOUNT NUT N02
NUT

09159-10020-000 0915910020000

$10,97

Unit Price

NUT

09159-10039-000 0915910039000

Not available

WASHER

08322-11105-000 0832211105000

Not available

LOCK WASHER

08321-21105-000 0832121105000

Not available

SPACER (L:105.5)

09180-10093-000 0918010093000

Not available

BUSH, ENG MOUNT
BUSH (L:35)

09319-10042-000 0931910042000

$31,97

Unit Price

SWITCH ASSY, OIL PRESSURE

37820-33200-000

37820-33D11-000

$33,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

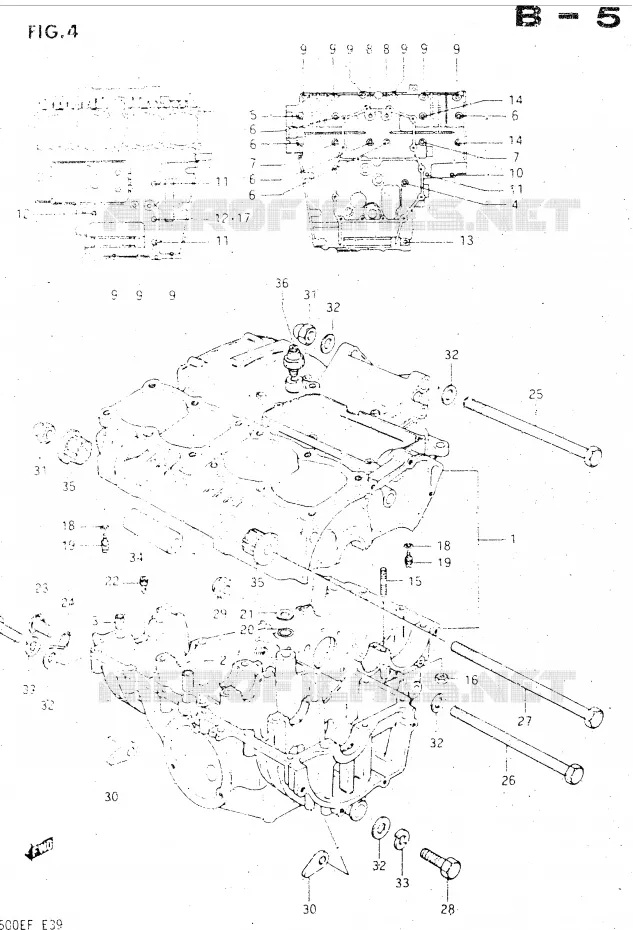

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CRANKCASE of your Suzuki of GSX-E. Let us know if you have any questions.

Select your Suzuki 1985 model
