REAR SHOCK ABSORBER (MODEL F)

SHOCK ABSORBER LINKAGE FOR SUZUKI GSX-E 500 1985

REAR WHEEL

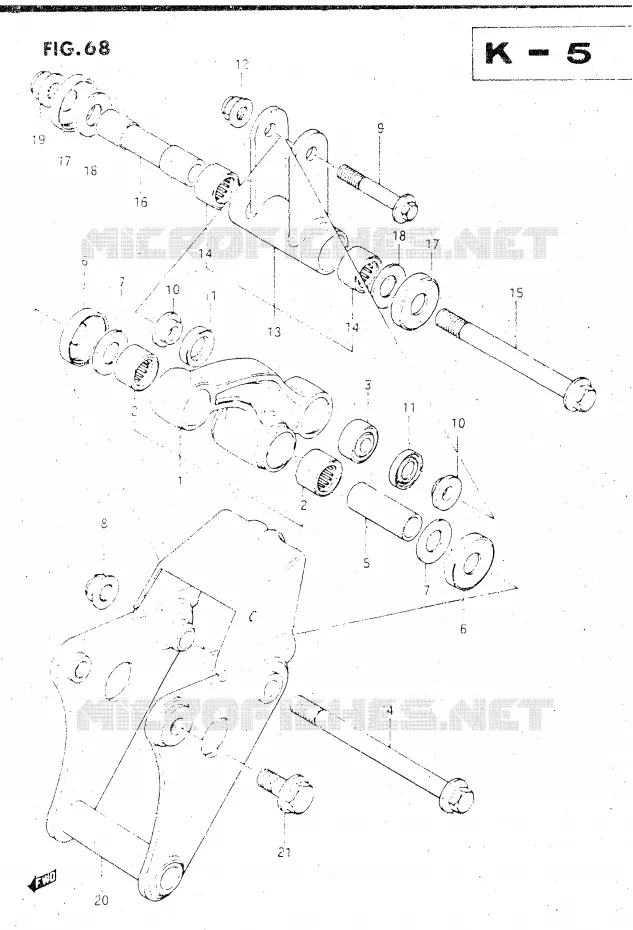

SHOCK ABSORBER LINKAGE Suzuki MOTO 500 GSX-E 1985 GSX500ESF(E39)
1
LEVER SET, CUSHION (SILVER)

62600-43810-737   6260043810737

6260043810737
Not available
2
BEARING

09263-17011-000  

09263-17027-000
 0926317011000

Unit Price

3
BEARING, PISTON PIN
BEARING, FRONT/REAR

09269-10003-000   0926910003000

0926910003000

Unit Price

4
SHAFT

62621-43400-000   6262143400000

6262143400000
Not available
5
SPACER

62623-43400-000   6262343400000

6262343400000
Not available
6
DISCONTINUE
DUST SEAL

61262-41500-000  

6126241500000
Not available
7
WASHER
THRUST WASHER

08211-12281-000   0821112281000

0821112281000

Unit Price

8
NUT

08319-31128-000  

08319-3112A-000
 0831931128000

Unit Price

9
BOLT(10X52)<br />BOLT, FRONT/REAR
BOLT(10X52)
BOLT, FRONT/REAR

09103-10030-000   0910310030000

0910310030000

Unit Price

10
SPACER<br />SPACER, FRONT/REAR
SPACER
SPACER, FRONT/REAR

62684-43401-000   6268443401000

6268443401000

Unit Price

11
DUST SEAL,RR CUSHION LEVER RR<br />DUST SEAL, FRONT/REAR
DUST SEAL, RR CUSHION LEVER RR
DUST SEAL, FRONT/REAR

62683-43400-000   6268343400000

6268343400000

Unit Price

12
NUT

08319-31108-000  

08319-31107-000
 0831931108000

Unit Price

13
ROD SET, CUSHION LEVER

62600-43830-737   6260043830737

6260043830737
Not available
14
BEARING

09263-17011-000  

09263-17027-000
 0926317011000

Unit Price

15
BOLT, LOWER

62313-43401-000   6231343401000

6231343401000
Not available
16
SPACER, LOWER

62316-43400-000   6231643400000

6231643400000
Not available
17
DISCONTINUE
DUST SEAL

61262-41500-000  

6126241500000
Not available
18
WASHER
THRUST WASHER

08211-12281-000   0821112281000

0821112281000

Unit Price

19
NUT

08319-31128-000  

08319-3112A-000
 0831931128000

Unit Price

20
BRACKET, SHOCK ABSORBER

62690-43401-000   6269043401000

6269043401000
Not available
21
BOLT, 12X23
BOLT, BRACKET

09103-12005-000   0910312005000

0910312005000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the SHOCK ABSORBER LINKAGE of your Suzuki of GSX-E. Let us know if you have any questions.

Genuine parts for Suzuki 500 GSX-E 1985
