WIRING HARNESS (LT-A500XP:P33)

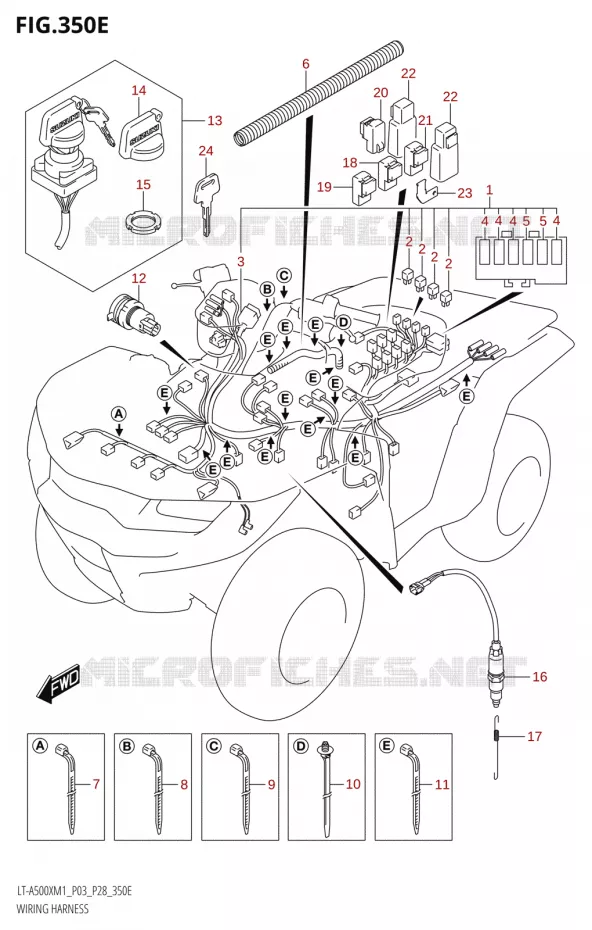

WIRING HARNESS (LT-A500X:P03,P28) FOR SUZUKI KINGQUAD 500 2021

WIRING HARNESS (LT-A500XP:P03,P28)

HARNESS, WIRING

36610-35K62-000 3661035K62000

$1 062,97

Unit Price

.RECTIFIER ASSY

32800-16A00-000 3280016A00000

$28,97

Unit Price

DISCONTINUE
.COVER, SPEED

36618-31G00-000 3661831G00000

Not available

.FUSE(10A)

09481-10501-000

Not available

.FUSE(15A)

09481-15501-000 0948115501000

$2,97

Unit Price

GUIDE, WIRING HARNESS

36619-31G00-000 3661931G00000

$16,97

Unit Price

BAND, WIRING HARNESS

09407-11401-000

09407-14403-000

$3,97

Unit Price

CLAMP(L:187)

09407-18401-000 0940718401000

$2,97

Unit Price

CLAMP, WIRING HARNESS
CLAMP(L:165)

09407-18402-000 0940718402000

$3,97

Unit Price

CLAMP
CLAMP(L:170)

09407-17403-000 0940717403000

$8,97

Unit Price

CLAMP

09407-19401-000

09407-22403-000

$3,97

Unit Price

TERMINAL, POWER SOURCE
TERMINAL, POWER SOURCE(12V, 12W)

38850-03G10-000 3885003G10000

$77,97

Unit Price

37110-34K10
SWITCH ASSY, IGNITION

37110-34K01-000 3711034K01000

Not available

MASCOT, KEY

37142-19B00-000

37142-19B01-000

$10,97

Unit Price

.NUT, IGNITION SWITCH

37112-24500-000 3711224500000

$14,97

Unit Price

SWITCH ASSY, STOP LAMP

37740-38F01-000 3774038F01000

$123,97

Unit Price

SPRING

09443-06080-000 0944306080000

$10,97

Unit Price

PLEASE ORDER 38740-31G10
RELAY ASSY

38740-31G11-000 3874031G11000

$44,97

Unit Price

PLEASE ORDER 38740-31G10
RELAY ASSY

38740-31G11-000 3874031G11000

$44,97

Unit Price

PLEASE ORDER 38740-31G10
RELAY ASSY

38740-31G11-000 3874031G11000

$44,97

Unit Price

PLEASE ORDER 38740-31G10
RELAY ASSY

38740-31G11-000 3874031G11000

$44,97

Unit Price

RELAY ASSY

38860-65G00-000 3886065G00000

Not available

BRACKET, SIDE STAND RELAY

38741-05300-000 3874105300000

$7,97

Unit Price

KEY, BLANK(TYPE:C)

37146-19B00-000 3714619B00000

$12,97

Unit Price

KEY, BLANK(TYPE:D)

37146-19B10-000 3714619B10000

$12,97

Unit Price

KEY, BLANK(TYPE:E)

37146-19B20-000 3714619B20000

$12,97

Unit Price

KEY, BLANK(TYPE:F)

37146-19B30-000 3714619B30000

$12,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the WIRING HARNESS (LT-A500X:P03,P28) of your Suzuki KINGQUAD 500 AXI 4WD AUTOMATIC of KINGQUAD. Let us know if you have any questions.
