CRANKCASE

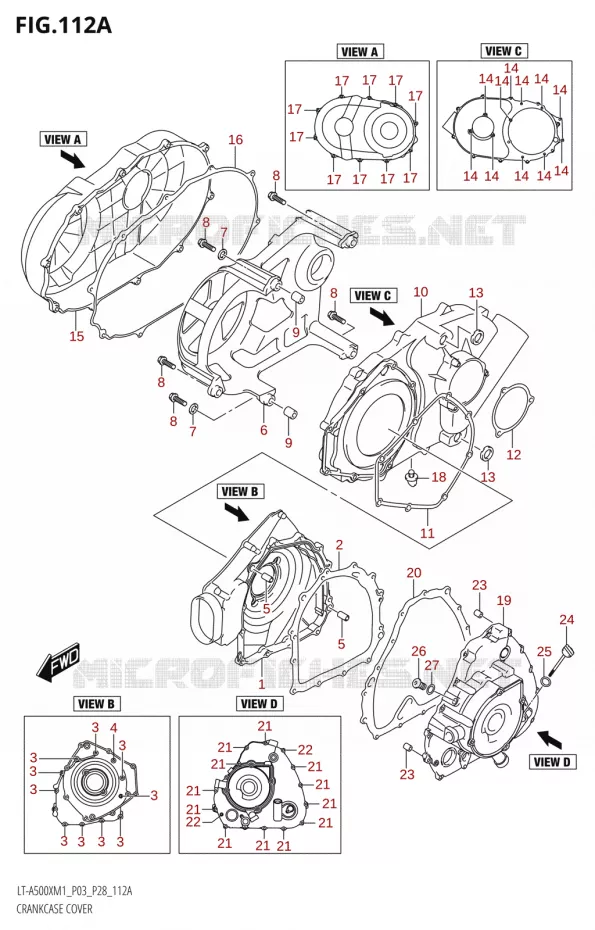

CRANKCASE COVER FOR SUZUKI KINGQUAD 500 2021

V-BELT COOLING DUCT

COVER, CLUTCH

11341-11H00-000 1134111H00000

$196,97

Unit Price

GASKET, CLUTCH COVER

11482-11H00-000 1148211H00000

$16,97

Unit Price

BOLT

01547-0625A-000

01547-0625B-000

$3,97

Unit Price

BOLT

01547-0635A-000 015470635A000

$3,97

Unit Price

PIN 11X16
PIN

04211-11169-000 0421111169000

$2,97

Unit Price

HOUSING, V-BELT BEARING

11342-11H00-000 1134211H00000

$280,97

Unit Price

GASKET, V-BELT BEARING HOUSING

11488-11H01-000 1148811H01000

$5,97

Unit Price

BOLT

01547-0635A-000 015470635A000

$3,97

Unit Price

PIN
PIN(8.5X18X2.3)

04211-09149-000 0421109149000

$2,97

Unit Price

COVER, V BELT INNER

11370-11H00-000 1137011H00000

$171,97

Unit Price

GASKET, V-BELT COVER INNER FR

11484-11H01-000 1148411H01000

$25,97

Unit Price

GASKET, V-BELT COVER INNER RR

11485-31G00-000 1148531G00000

$11,97

Unit Price

GASKET, V-BELT COVER INNER HOLE

11487-11H01-000 1148711H01000

$6,97

Unit Price

BOLT

01547-0625A-000

01547-0625B-000

$3,97

Unit Price

COVER, V BELT OUTER

11380-11H00-000 1138011H00000

$166,97

Unit Price

GASKET, V-BELT COVER OUTER

11486-11H01-000 1148611H01000

$27,97

Unit Price

BOLT

01547-0625A-000

01547-0625B-000

$3,97

Unit Price

PLUG, WATER DRAIN

11375-31G00-000 1137531G00000

$5,97

Unit Price

COVER, MAGNETO

11350-11H10-000 1135011H10000

$305,97

Unit Price

GASKET, MAGNETO COVER
GASKET, MAGNETO COVER(NA)

11483-11H00-000 1148311H00000

$29,97

Unit Price

BOLT

01547-0625A-000

01547-0625B-000

$3,97

Unit Price

BOLT

01547-0635A-000 015470635A000

$3,97

Unit Price

PIN 11X16
PIN

04211-11169-000 0421111169000

$2,97

Unit Price

GAUGE, OIL LEVEL

11971-09F60-000 1197109F60000

$13,97

Unit Price

O-RING, OIL FILLER
O-RING(D:3.1, ID:16.8)

09280-17003-000 0928017003000

$2,97

Unit Price

PLUG, CYL HEAD
PLUG(14X12)

09248-14011-000

Not available

GASKET, FUEL INJECTOR

09168-14009-000

09168-14011-000

$2,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CRANKCASE COVER of your Suzuki KINGQUAD 500 AXI 4WD AUTOMATIC of KINGQUAD. Let us know if you have any questions.
