FINAL BEVEL GEAR (FRONT)

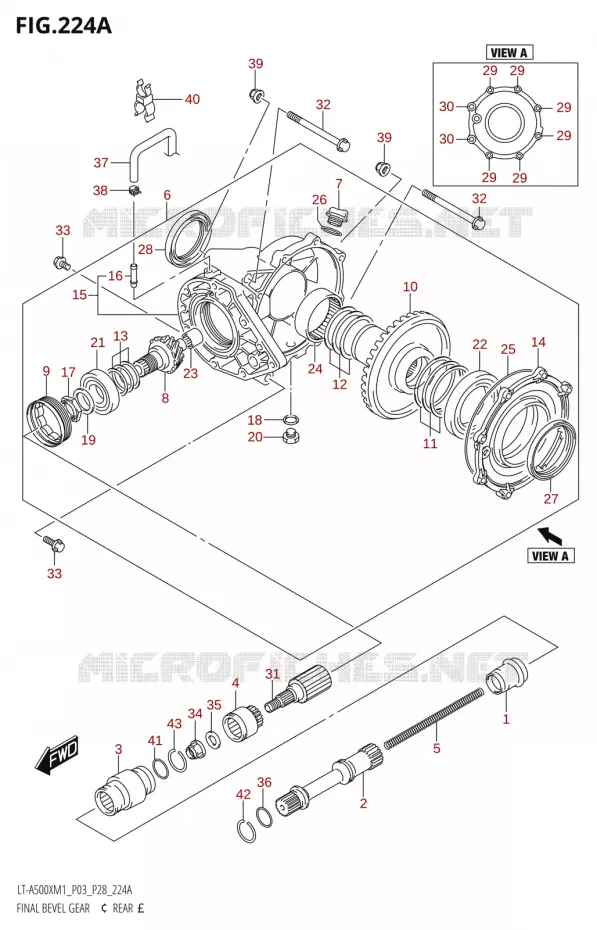

FINAL BEVEL GEAR (REAR) FOR SUZUKI KINGQUAD 500 2021

FUEL EVAP SYSTEM

BOOT, JOINT SHAFT

27153-31G41-000

27153-31G42-000

$17,97

Unit Price

SHAFT, REAR PROPELLER

27155-34K00-000 2715534K00000

$104,97

Unit Price

JOINT, REAR PROP SHFT
JOINT, REAR PROPELLER SHAFT

27157-34K00-000 2715734K00000

$103,97

Unit Price

COUPLING, REAR OUTPUT SHAFT

27171-34K00-000 2717134K00000

$124,97

Unit Price

SPRING, RR PROPELLER SHAFT
SPRING, REAR PROPELLER SHAFT

27192-31G10-000 2719231G10000

$8,97

Unit Price

CASE ASSY, RR FINAL GEAR
CASE ASSY, REAR FINAL GEAR

27410-31G50-000 2741031G50000

$1 117,97

Unit Price

.PLUG

09259-20008-XC0 0925920008XC0

$12,97

Unit Price

GEAR, RR FINAL DRIVE BEVEL
.GEAR, RR FINAL DRIVE BEVEL(NT:10)

27311-31G50-000 2731131G50000

$246,97

Unit Price

.STOPPER, FINAL DRIVE BEARING

27312-38F00-000 2731238F00000

$53,97

Unit Price

GEAR, RR FINAL DRIVEN
.GEAR, RR FINAL DRIVEN(NT:36)

27320-31G00-000 2732031G00000

$327,97

Unit Price

SHIM SET
.SHIM SET(T:0.30/0.35/0.40/0.50/0.60)

27326-31810-000 2732631810000

$37,97

Unit Price

SHIM SET
.SHIM SET(T:0.30/0.35/0.40/0.50/0.60)

27327-31810-000 2732731810000

$26,97

Unit Price

SHIM SET, FINAL DRIVE GEAR
.SHIM SET, FINAL DRIVE GEAR(T:0.30/0.35/0.40/0.50/0.60)

27445-24810-000 2744524810000

$19,97

Unit Price

CASE, RR FINAL GEAR, L
.CASE, REAR FINAL GEAR, L

27451-31G10-000 2745131G10000

$118,97

Unit Price

CASE, RR FINAL GEAR, R
.CASE, REAR FINAL GEAR, R

27460-31G10-000 2746031G10000

$256,97

Unit Price

..UNION

09364-08016-000 0936408016000

$9,97

Unit Price

.NUT

09140-28006-000 0914028006000

$24,97

Unit Price

GASKET, 13.8X18.8X0.4
.GASKET(13.8X18.8X4.8)

09168-14002-000 0916814002000

$3,97

Unit Price

WASHER
.SHIM(28X38X1)

09181-28195-000 0918128195000

$6,97

Unit Price

PLUG ENGINE OIL
.PLUG

09247-14013-000 0924714013000

$3,97

Unit Price

BEARING
.BEARING(28X68X18)

09262-28023-000 0926228023000

$150,97

Unit Price

BALL BEARING
.BEARING(65X100X11)

09262-65001-000 0926265001000

$162,97

Unit Price

BEARING
.BEARING(20X34X18)

09263-20062-000 0926320062000

$54,97

Unit Price

BEARING
.BEARING(55X67X20)

09263-55003-000 0926355003000

$103,97

Unit Price

.O-RING(D:2.45, ID:156)

09280-00046-000 0928000046000

$29,97

Unit Price

O-RING, OIL FILLER
.O-RING(D:3.1, ID:16.8)

09280-17003-000 0928017003000

$2,97

Unit Price

SEAL, FINAL DRIVEN GE
.OIL SEAL(59X88X8)

09283-59001-000 0928359001000

$41,97

Unit Price

SEAL, FINAL DRIVEN GE
.OIL SEAL(59X88X8)

09283-59001-000 0928359001000

$41,97

Unit Price

.BOLT(8X35)

09103-08357-000 0910308357000

$5,97

Unit Price

.BOLT(10X45)

09103-10294-000 0910310294000

$6,97

Unit Price

SHAFT, RR FINAL DRIVE GEAR

27594-31G80-000 2759431G80000

$164,97

Unit Price

BOLT(10X110)

09103-10148-000 0910310148000

$12,97

Unit Price

BOLT(10X30)

09103-10405-000 0910310405000

$4,97

Unit Price

NUT

09159-16003-000 0915916003000

$6,97

Unit Price

WASHER, SEC DRIVE**S1
WASHER(16X30X3)

09160-16026-000 0916016026000

$6,97

Unit Price

O-RING(D:3.1, ID:19.4)

09280-20002-000 0928020002000

$3,97

Unit Price

HOSE, BREATHER

27491-31G00-000 2749131G00000

$32,97

Unit Price

FUEL HOSE CLIP

09401-10403-000

09401-10402-000

$9,97

Unit Price

NUT
NUT(M10)

09159-10115-000 0915910115000

$5,97

Unit Price

CLAMP

09408-00235-000 0940800235000

$19,97

Unit Price

O-RING(D:3.1, ID:34.4)

09280-35008-000 0928035008000

$6,97

Unit Price

CIRCLIP PISTON PIN
RING, SNAP

09381-21002-000 0938121002000

$2,97

Unit Price

C-RING, RRPROP
C-RING

09380-36005-000 0938036005000

$9,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FINAL BEVEL GEAR (REAR) of your Suzuki KINGQUAD 500 AXI 4WD AUTOMATIC of KINGQUAD. Let us know if you have any questions.
