TOOL BOX (MODEL W / X / Y) REFER TO FIG.44D(I-8) FOR MODEL K1/K2

TOOL BOX (MODEL K1 / K2) FOR SUZUKI QUADMASTER 500 2000

LABEL (MODEL W) REFER TO FIG.45A(I-10) FOR MODEL X/Y/K1/K2

Item numbers

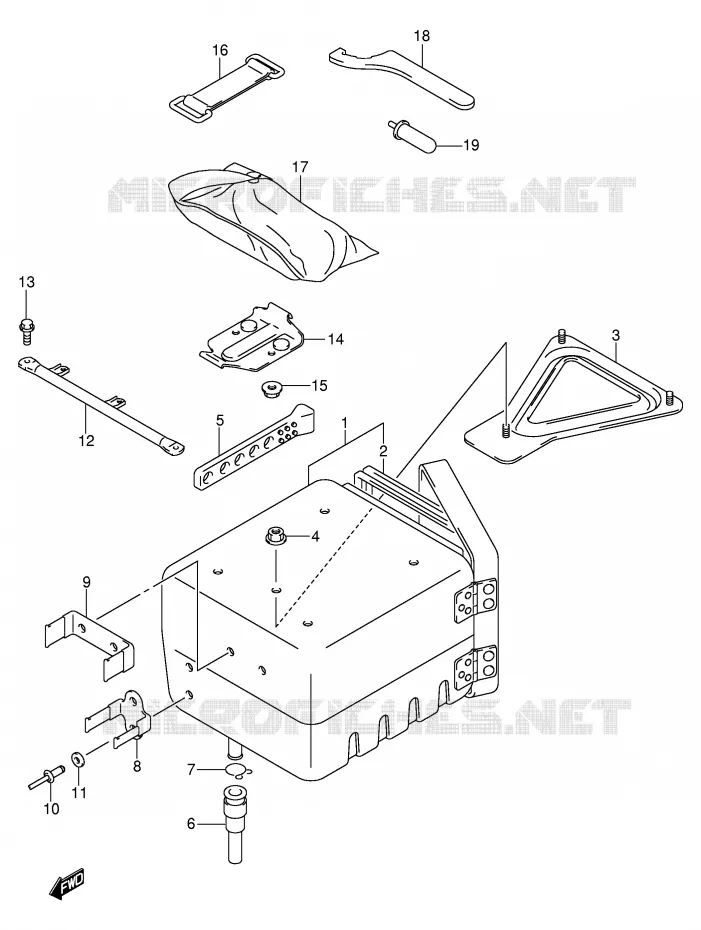

TOOL BOX (MODEL K1/K2) Suzuki QUAD 500 QUADMASTER 2000 LT-F500FY(E3/E28)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
1
DISCONTINUE
BOX REAR

93110-09F10-000   9311009F10000

9311009F10000
Not available
2
DISCONTINUE
MOLDING

93114-09F00-000   9311409F00000

9311409F00000
Not available
3
BRACKET

93120-09F10-000   9312009F10000

9312009F10000
Not available
4
NUT 6MM

08316-10063-000  

08319-31067-000
 0831610063000

Unit Price

5
BAND, RR BOX

93191-09F10-000  

93191-09F11-000
 9319109F10000

Unit Price

6
DISCONTINUE
CAP, DRAIN

13872-00A00-010   1387200A00010

1387200A00010
Not available
7
CLIP
CLIP

09401-13409-000   0940113409000

0940113409000

Unit Price

8
DISCONTINUE
PLATE, MOTOR RELAY

47412-09FA0-000   4741209FA0000

4741209FA0000
Not available
9
47413-09FA1
PLATE, CDI UNIT

47413-09FA0-000   4741309FA0000

4741309FA0000
Not available
10
RIVET

09229-04025-000   0922904025000

0922904025000

Unit Price

11
WASHER
WASHER

09160-05043-000   0916005043000

0916005043000

Unit Price

12
DISCONTINUE
HOLDER, BOX

93140-09FA0-000   9314009FA0000

9314009FA0000
Not available
13
01550-0616A
BOLT

01550-06163-000  

0155006163000
Not available
14
HOLDER, TOOL
HOLDER, TOOL

41550-49201-000   4155049201000

4155049201000

Unit Price

15
NUT

08319-31063-000  

08319-3106A-000
 0831931063000

Unit Price

16
BAND, TOOL

09462-00073-000  

09462-00093-000
 0946200073000

Unit Price

17
DISCONTINUE
TOOL ASSY

09800-21040-000  

0980021040000
Not available
18
CLAMP, WRENCH
CLAMP, WRENCH

09822-00004-000   0982200004000

0982200004000

Unit Price

19
GAUGE ASSY, AIR PRESSURE
GUAGE ASSY, AIR

96200-18A02-000   9620018A02000

9620018A02000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
