DRIVESHAFT (MODEL W / X / Y) REFER TO FIG.21A(D-9) FOR MODEL K1/K2

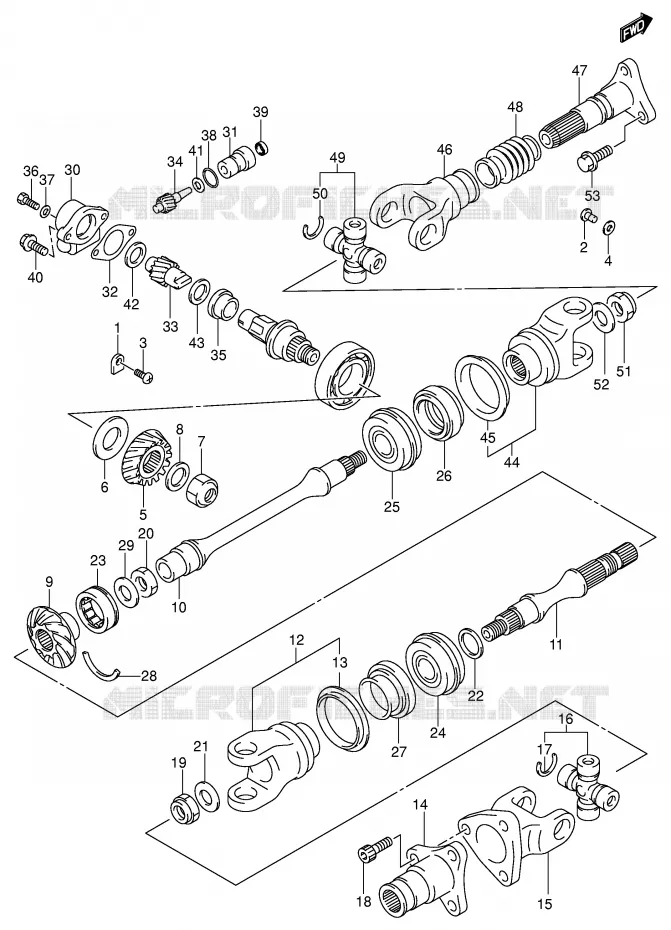

DRIVESHAFT (MODEL K1 / K2) FOR SUZUKI QUADMASTER 500 2000

GEAR SHIFTING ASSY (1)

Item numbers

RETAINER
RETAINER, SEC DRIVE SFT BRG

24741-21A00-000 2474121A00000

$4,97

Unit Price

BOLT, 6X12
SCREW, SEC DRIVE SFT BRG RTNR

09125-06110-000 0912506110000

$4,97

Unit Price

BOLT, 6X12
SCREW, CNTR SHAFT BRG RTNR

09125-06110-000 0912506110000

$4,97

Unit Price

WASHER
RETAINER, CNTR SHAFT BRG

08211-06165-000 0821106165000

$4,97

Unit Price

GEAR, SECONDARY DRIVE BEVEL
GEAR, SEC DRIVE BEVEL

24911-44D11-000 2491144D11000

$162,97

Unit Price

SHIM SET, SEC DRIVE BEVEL

24935-19810-000

24935-03811-000

$131,97

Unit Price

NUT 20MM
NUT, SEC DRIVE BEVEL GR

09140-20012-000 0914020012000

$6,97

Unit Price

WASHER
WASHER, SEC DRIVE BEVEL GR

09164-20007-000 0916420007000

$6,97

Unit Price

GEAR, SECONDARY DRIVE BEVEL
GEAR, SEC DRIVEN BEVEL

24921-44D10-000 2492144D10000

$181,97

Unit Price

DISCONTINUE
SHAFT, SEC DRIVEN, FR

24960-44D60-000 2496044D60000

Not available

SHAFT, SEC DRIVEN OUTPUT RR

24971-44D60-000 2497144D60000

$294,97

Unit Price

YOKE, RR DRIVE OUTPUT

27130-38F00-000

27130-03G00-000

$161,97

Unit Price

PLATE
PLATE, OUTPUT

27592-38F00-000 2759238F00000

$13,97

Unit Price

SHAFT, PROPELLER RR
SHAFT, PROPELLER REAR

27150-38F00-000 2715038F00000

$222,97

Unit Price

YOKE, PROP SHAFT JOINT

27161-38F10-000

27161-38F11-000

$428,97

Unit Price

JOINT SET, UNIVERSAL

27200-19810-000

27200-19811-000

$73,97

Unit Price

CIRCLIP

09380-20016-000 0938020016000

$3,97

Unit Price

BOLT

07130-10203-000

07130-1020B-000

$6,97

Unit Price

NUT
NUT, REAR OUTPUT JOINT

09159-16003-000 0915916003000

$6,97

Unit Price

NUT, PRIMARY SHAFT
NUT, SEC DRIVEN GEAR

09159-22005-000 0915922005000

$34,97

Unit Price

WASHER, SEC DRIVE**S1
WASHER, REAR OUTPUT FRANGE

09160-16026-000 0916016026000

$6,97

Unit Price

SHIM(25X34X0.6)
SHIM, SEC DRIVEN

09181-25051-000 0918125051000

$5,97

Unit Price

SHIM(25X34X0.65)
SHIM, SEC DRIVEN

09181-25052-000 0918125052000

$5,97

Unit Price

SHIM(0.7)

09181-25053-000

09181-25160-000

$5,97

Unit Price

SHIM(25X34X0.75)
SHIM, SEC DRIVEN

09181-25054-000 0918125054000

$5,97

Unit Price

SHIM(0.8)

09181-25055-000

09181-25162-000

$4,97

Unit Price

SHIM(25X34X0.85)
SHIM, SEC DRIVEN

09181-25056-000 0918125056000

$5,97

Unit Price

SHIM(0.9)

09181-25057-000

09181-25164-000

$5,97

Unit Price

SHIM(25X34X0.95)
SHIM, SEC DRIVEN

09181-25058-000 0918125058000

$5,97

Unit Price

WASHER, 5TH DRIVE GEA

09181-25059-000

09181-25167-000

$5,97

Unit Price

SHIM(25X34X1.05)
SHIM, SEC DRIVEN

09181-25060-000 0918125060000

$5,97

Unit Price

SHIM(25X34X1.1)
SHIM, SEC DRIVEN

09181-25061-000 0918125061000

$4,97

Unit Price

SHIM(25X34X1.15)
SHIM, SEC DRIVEN

09181-25062-000 0918125062000

$4,97

Unit Price

SHIM(25X34X1.2)
SHIM, SEC DRIVEN

09181-25063-000 0918125063000

$4,97

Unit Price

BEARING
BRG, SEC DRIVEN GEAR, M

09263-30050-000 0926330050000

$68,97

Unit Price

BEARING, REAR OUTPUT

09267-25006-000

09267-25014-000

$113,97

Unit Price

BEARING, REAR OUTPUT

09267-25006-000

09267-25014-000

$113,97

Unit Price

OIL SEAL 34X52X14
OIL SEAL, DRIVEN SFT, FR

09283-34008-000 0928334008000

$30,97

Unit Price

OIL SEAL 34X52X14
OIL SEAL, DRIVEN SFT, RR

09283-34008-000 0928334008000

$30,97

Unit Price

C RING
RING, SEC DRIVEN BRG, M

09390-50002-000 0939050002000

$4,97

Unit Price

WASHER
WASHER, SEC DRIVEN

08211-22365-000 0821122365000

$7,97

Unit Price

HOUSING, ODOMETER GEAR

26441-19B01-000 2644119B01000

$82,97

Unit Price

SLEEVE, ODOMETER DRIVEN GEAR
SLEEVE

26442-19B00-000 2644219B00000

$36,97

Unit Price

GASKET, ODOMETER GEAR SLV
GASKET

26451-19B12-000 2645119B12000

$12,97

Unit Price

DISCONTINUE
GEAR, DRIVE

26461-44D00-000 2646144D00000

Not available

DISCONTINUE
GEAR, DRIVEN

26471-44D00-000 2647144D00000

Not available

SPACER, ODOMETER DRIVE GEAR
SPACER, DRIVEN GEAR

26481-19B00-000 2648119B00000

$23,97

Unit Price

BOLT, 6X10

09135-06013-000

09135-06501-000

$5,97

Unit Price

TACH GEAR WASHER
WASHER, DRIVEN

09168-06004-000 0916806004000

$2,97

Unit Price

O RING D:1.9 ID:16.6
O RING

09280-17004-000 0928017004000

$4,97

Unit Price

TACHO DRVN OIL SEAL
SEAL, DRIVEN GEAR

09289-05002-000 0928905002000

$16,97

Unit Price

BOLT
BOLT, GEAR SLV

09103-06201-000 0910306201000

$4,97

Unit Price

WASHER
WASHER, DRIVEN GR

08211-08151-000 0821108151000

$3,97

Unit Price

WASHER, THRUST
WASHER, DRIVE GR

08211-15201-000 0821115201000

$3,97

Unit Price

WASHER
WASHER, DRIVE GR, RH

08211-17241-000 0821117241000

$3,97

Unit Price

YOKE, RR DRIVE OUTPUT

27130-38F00-000

27130-03G00-000

$161,97

Unit Price

PLATE
PLATE, OUTPUT

27592-38F00-000 2759238F00000

$13,97

Unit Price

YOKE, PROP SHAFT JOINT

27140-38F00-000

27140-38F10-000

$161,97

Unit Price

DISCONTINUE
SHAFT, PROPELLER

27151-09F70-000 2715109F70000

Not available

BOOT, PROPELLER SHAFT
BOOT, PROP SHAFT

27153-62021-000 2715362021000

$21,97

Unit Price

JOINT SET, UNIVERSAL

27200-19810-000

27200-19811-000

$73,97

Unit Price

CIRCLIP

09380-20016-000 0938020016000

$3,97

Unit Price

NUT
NUT, FR YOKE

09159-16003-000 0915916003000

$6,97

Unit Price

WASHER, SEC DRIVE**S1
WASHER, FR DRIVE OUTPUT YOKE

09160-16026-000 0916016026000

$6,97

Unit Price

BOLT
BOLT, PROPELLER SHAFT

09103-10310-000 0910310310000

$6,97

Unit Price

BOLT

01550-10203-000

Not available
