Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

FUEL TANK (MODEL K6) REFER TO FIG.38A(F-12) FOR MODEL K7

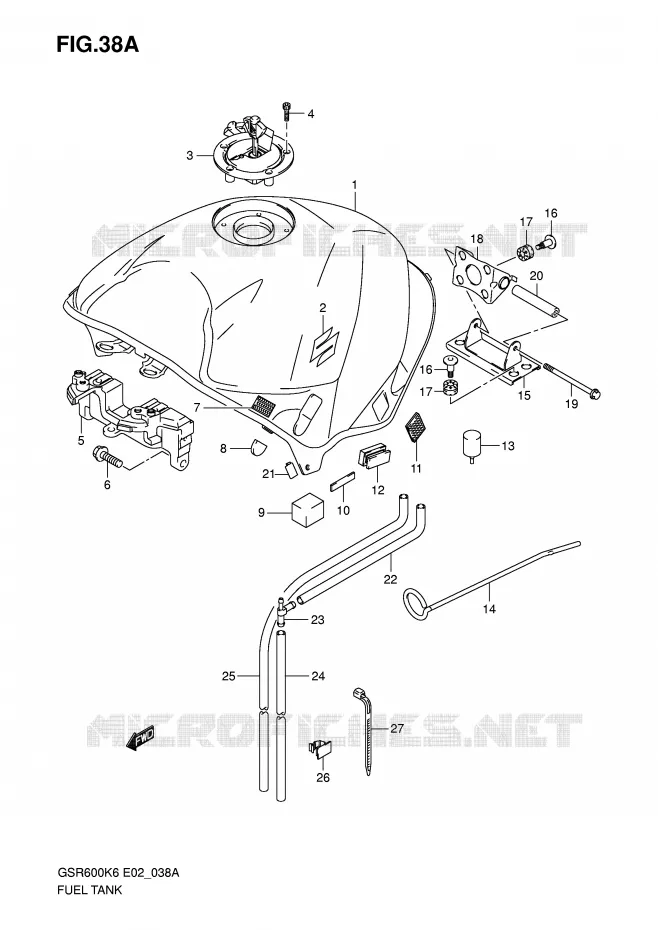

FUEL TANK (MODEL K7) FOR SUZUKI GSR 600 2009

FUEL TANK (MODEL K8) REFER TO FIG.38C(G- 2) FOR MODEL K9

Item numbers
FUEL TANK (MODEL K7) Suzuki MOTO 600 GSR 2009 GSR600K9(E2)
1
1
1
1
1
1
1
1
1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
16
17
17
18
19
20
21
22
22
23
23
24
24
25
26
27
1
TANK ASSY, FUEL (BLUE)

44100-44G00-YBA   4410044G00YBA

4410044G00YBA
Not available
1
TANK ASSY, FUEL (WHITE)

44100-44G00-YBD   4410044G00YBD

4410044G00YBD
Not available
1
TANK ASSY, FUEL (SILVER)

44100-44G00-YD8   4410044G00YD8

4410044G00YD8
Not available
1
TANK ASSY, FUEL (RED)

44100-44G00-YHL   4410044G00YHL

4410044G00YHL
Not available
1
TANK ASSY, FUEL (BLACK)

44100-44G00-YKV   4410044G00YKV

4410044G00YKV
Not available
1
TANK ASSY, FUEL (BLUE)

44100-44G10-YBA   4410044G10YBA

4410044G10YBA
Not available
1
TANK ASSY, FUEL (WHITE)

44100-44G10-YBD   4410044G10YBD

4410044G10YBD
Not available
1
TANK ASSY, FUEL (SILVER)

44100-44G10-YD8   4410044G10YD8

4410044G10YD8
Not available
1
TANK ASSY, FUEL (RED)

44100-44G10-YHL   4410044G10YHL

4410044G10YHL
Not available
1
TANK ASSY, FUEL (BLACK)

44100-44G10-YKV   4410044G10YKV

4410044G10YKV
Not available
2
EMBLEM, S
EMBLEM

68111-18G20-000   6811118G20000

6811118G20000

Unit Price

3
CAP SET, FUEL TANK FILLER

44200-16850-000  

44200-16852-000
 4420016850000

Unit Price

4
BOLT, L:20<br />BOLT
BOLT, L:20
BOLT

09106-05017-000   0910605017000

0910605017000

Unit Price

5
BRACKET, FRONT

44521-44G00-000   4452144G00000

4452144G00000
Not available
6
BOLT
BOLT

01550-0825A-000   015500825A000

015500825A000

Unit Price

7
FASTENER(25X33X2.6)
FASTENER

44572-02F01-000   4457202F01000

4457202F01000

Unit Price

8
CUSHION
CUSHION, COVER

09329-18001-000   0932918001000

0932918001000

Unit Price

9
CUSHION, SIDE

44541-44G00-000   4454144G00000

4454144G00000
Not available
10
MOLDING

94426-08A10-000   9442608A10000

9442608A10000
Not available
11
FASTENER(25X33X2.6)
FASTENER

44572-02F01-000   4457202F01000

4457202F01000

Unit Price

12
CUSHION, FUEL TANK SIDE

44541-35F00-000  

44541-35F01-000
 4454135F00000

Unit Price

13
CUSHION, FUEL TANK RR

44542-18G00-000  

44542-18G01-000
 4454218G00000

Unit Price

14
STAY, FUEL TANK
STAY

44574-16G00-000   4457416G00000

4457416G00000

Unit Price

15
BRACKET, REAR LOWER

44550-44G00-000   4455044G00000

4455044G00000
Not available
16
09139-06191
SCREW

44543-47H00-000  

4454347H00000
Not available
17
CUSHION, FUEL TANK BR
CUSHION

09320-08071-000   0932008071000

0932008071000

Unit Price

18
BRACKET, FUEL TANK

44530-41G00-000  

44530-41G01-000
 4453041G00000

Unit Price

19
BOLT

01550-06953-000  

01550-0695B-000
 0155006953000

Unit Price

20
SPACER, FUEL TANK RR
SPACER

44561-18G00-000   4456118G00000

4456118G00000

Unit Price

21
MOLDING, BRACE
MULDING, LH

51861-21D00-000   5186121D00000

5186121D00000

Unit Price

22
HOSE, WATER DRAIN UPPER

44423-44G00-000   4442344G00000

4442344G00000
Not available
22
HOSE, WATER DRAIN UPPER

44423-44G20-000   4442344G20000

4442344G20000
Not available
23
UNION 3WAY<br />3 WAY
UNION 3WAY
3 WAY

09367-08004-000   0936708004000

0936708004000

Unit Price

23
3 WAY

09367-08005-000   0936708005000

0936708005000

Unit Price

24
HOSE, WATER DRAIN LOWER

44423-44G10-000   4442344G10000

4442344G10000
Not available
24
HOSE, WATER DRAIN LOWER

44423-44G30-000   4442344G30000

4442344G30000
Not available
25
HOSE, BREATHER

44424-44G00-000   4442444G00000

4442444G00000
Not available
26
CLAMP

09403-14311-000   0940314311000

0940314311000

Unit Price

27
CLAMP

09407-19401-000  

09407-22403-000
 0940719401000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FUEL TANK (MODEL K7) of your Suzuki of GSR. Let us know if you have any questions.
