Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

SWINGARM COLOR : GUL=YSF(BLUE),YMD(SILVER)

SHOCK ABSORBER LINKAGE FOR SUZUKI GSR 600 2009

REAR WHEEL (GSR600K6 / UK6 / K7 / UK7 / K8 / UK8 / K9 / UK9 / L0 / UL0) REFER TO FIG.60A(K- 7) FOR GSR600AK7/UAK7/AK8/UAK8/AK9/UAK9/AL0/UAL0

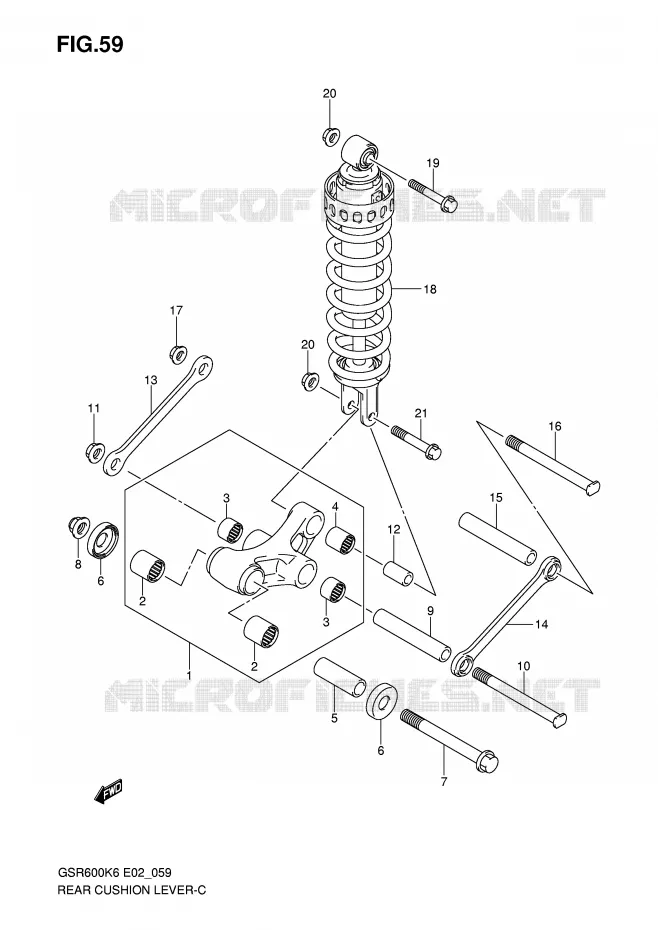

SHOCK ABSORBER LINKAGE Suzuki MOTO 600 GSR 2009 GSR600K9(E2)
1
LEVER SET, REAR CUSHION

62600-44870-000   6260044870000

6260044870000
Not available
1
LEVER SET, REAR CUSHION

62600-44890-000   6260044890000

6260044890000
Not available
2
BEARING(22X28X20)
BEARING, FRONT (22X28X20)

09263-22062-000   0926322062000

0926322062000

Unit Price

3
BEARING
BEARING

09263-17037-000  

09263-17053-000
 0926317037000

Unit Price

3
BEARING
BEARING

09263-17039-000  

09263-17058-000
 0926317039000

Unit Price

4
BEARING
BEARING

09263-17034-000  

09263-17057-000
 0926317034000

Unit Price

5
SPACER, RR CUSHION LEVER CTR
SPACER, FRONT

62646-28E00-000   6264628E00000

6264628E00000

Unit Price

6
DISCONTINUE
SEAL, RR CUSHION LEVER

62682-28E00-000  

6268228E00000
Not available
7
BOLT, FRONT

62658-44G00-000   6265844G00000

6265844G00000
Not available
8
NUT
NUT

08319-3116A-000   083193116A000

083193116A000

Unit Price

9
SPACER,RR CUSHION LEVER CTR<br />SPACER, CENTER
SPACER, RR CUSHION LEVER CTR
SPACER, CENTER

62626-33D00-000   6262633D00000

6262633D00000

Unit Price

10
BOLT, RR CUSHION LEVER CTR
BOLT, CENTER

62621-23H00-000   6262123H00000

6262123H00000

Unit Price

10
BOLT, CENTER

62621-44G00-000   6262144G00000

6262144G00000
Not available
11
NUT, REARCUSHION
NUT

09159-12056-000   0915912056000

0915912056000

Unit Price

12
SPACER,RR CUSHION LEVER<br />SPACER, REAR
SPACER, RR CUSHION LEVER
SPACER, REAR

62684-40A10-000   6268440A10000

6268440A10000

Unit Price

13
ROD, REAR CUSHION LEVER, R

62641-44G00-000   6264144G00000

6264144G00000
Not available
14
ROD, REAR CUSHION LRVER, L

62640-44G00-000   6264044G00000

6264044G00000
Not available
15
SPACER,RR CUSHION LEVER CTR<br />SPACER, ROD
SPACER, RR CUSHION LEVER CTR
SPACER, ROD

62626-33D00-000   6262633D00000

6262633D00000

Unit Price

16
BOLT, RR CUSHION LEVER CTR
BOLT, ROD

62621-23H00-000   6262123H00000

6262123H00000

Unit Price

16
BOLT, ROD

62621-44G00-000   6262144G00000

6262144G00000
Not available
17
NUT, REARCUSHION
NUT

09159-12056-000   0915912056000

0915912056000

Unit Price

18
ABSORBER ASSY, REAR SHOCK

62100-44G00-000   6210044G00000

6210044G00000
Not available
19
BOLT(10X52)<br />BOLT, UPPER (10X52)
BOLT(10X52)
BOLT, UPPER (10X52)

09103-10213-000   0910310213000

0910310213000

Unit Price

20
NUT
NUT

09159-10115-000   0915910115000

0915910115000

Unit Price

21
BOLT, RR SHOCK ABSORBER
BOLT, LOWER

62311-28E00-000   6231128E00000

6231128E00000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the SHOCK ABSORBER LINKAGE of your Suzuki of GSR. Let us know if you have any questions.
