Finish line

Parts catalogue

Parts diagram

CYLINDER HEAD

CRANKCASE FOR SUZUKI GSR 600 2009

CRANKCASE COVER

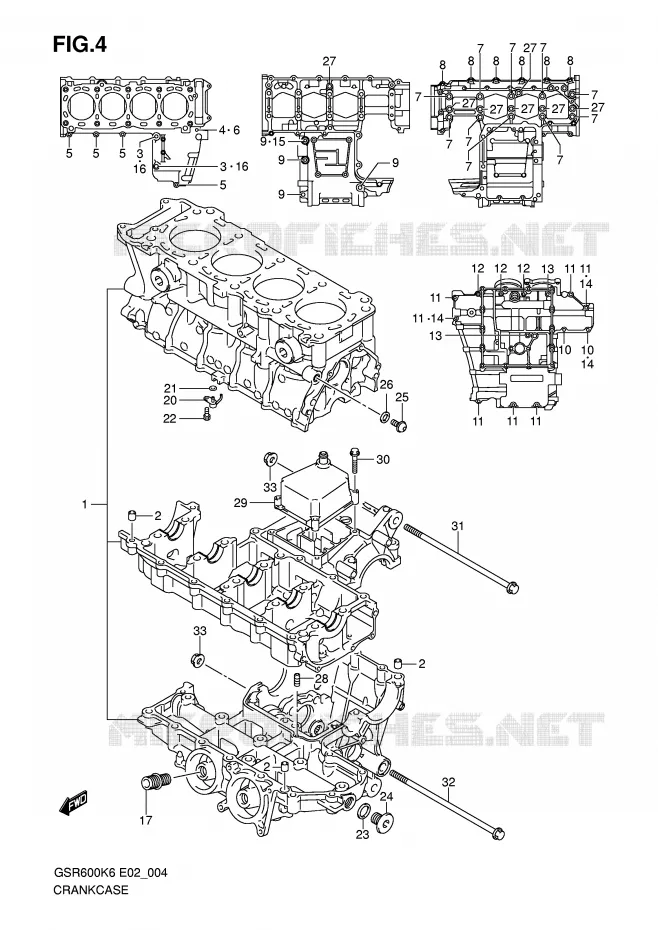

CRANKCASE Suzuki MOTO 600 GSR 2009 GSR600K9(E2)
1
CRANKCASE SET

11302-44821-000   1130244821000

1130244821000
Not available
1
CRANKCASE SET

11302-44830-000   1130244830000

1130244830000
Not available
2
PIN,CRANKCASE<br />PIN
PIN, CRANKCASE
PIN

11319-33E50-000   1131933E50000

1131933E50000

Unit Price

3
BOLT (8X120)
BOLT (8X120)

09106-08139-000   0910608139000

0910608139000

Unit Price

4
GASKET<br />GASKET (5.8X13X1.2)
GASKET
GASKET (5.8X13X1.2)

09168-06023-000   0916806023000

0916806023000
Not available
5
BOLT

01547-0635A-000   015470635A000

015470635A000

Unit Price

6
BOLT

01547-0680A-000   015470680A000

015470680A000

Unit Price

7
BOLT (9X95)
BOLT (9X95)

09103-09012-000   0910309012000

0910309012000

Unit Price

8
BOLT
BOLT

01547-0640A-000   015470640A000

015470640A000

Unit Price

9
BOLT

07120-0865A-000   071200865A000

071200865A000

Unit Price

10
BOLT

01547-0630A-000   015470630A000

015470630A000

Unit Price

11
BOLT
BOLT

01547-0640A-000   015470640A000

015470640A000

Unit Price

12
BOLT
BOLT

01547-0660A-000  

01547-0660B-000
 015470660A000

Unit Price

13
BOLT

01547-0670A-000   015470670A000

015470670A000

Unit Price

14
GASKET<br />GASKET (5.8X13X1.2)
GASKET
GASKET (5.8X13X1.2)

09168-06023-000   0916806023000

0916806023000
Not available
15
GASKET (8.2X14X1)
GASKET (8.2X14X1)

09168-08016-000   0916808016000

0916808016000

Unit Price

16
GASKET (8.2X14X1)
GASKET (8.2X14X1)

09168-08016-000   0916808016000

0916808016000

Unit Price

17
UNION,OIL STAND<br />UNION, OIL FILTER STAND
UNION, OIL STAND
UNION, OIL FILTER STAND

16591-06B01-000   1659106B01000

1659106B01000

Unit Price

18
BEARING, CRANK THRUST(GREEN)
BEARING, THRUST RH (GREEN)

12228-17E00-0D0   1222817E000D0

1222817E000D0

Unit Price

19
BEARING, CRANK THRUST(RED)
BEARING, THRUST LH (RED)

12228-17E00-0A0   1222817E000A0

1222817E000A0

Unit Price

19
BEARING, CRANK THRUST
BEARING, THRUST LH (BLACK)

12228-17E00-0B0   1222817E000B0

1222817E000B0

Unit Price

19
BEARING, CRANK THRUST(BLUE)
BEARING, THRUST LH (BLUE)

12228-17E00-0C0   1222817E000C0

1222817E000C0

Unit Price

19
BEARING, CRANK THRUST(GREEN)
BEARING, THRUST LH (GREEN)

12228-17E00-0D0   1222817E000D0

1222817E000D0

Unit Price

19
BEARING, CRANK THRUST(YELLOW)
BEARING, THRUST LH (YELLOW)

12228-17E00-0E0   1222817E000E0

1222817E000E0

Unit Price

19
BEARING, CRANK THRUST(WHITE)
BEARING, THRUST LH (WHITE)

12228-17E00-0F0   1222817E000F0

1222817E000F0

Unit Price

20
JET, PISTON COOLING

11390-35F00-000   1139035F00000

1139035F00000

Unit Price

21
O RING<br />O RING (D:1.2,ID:4.0)
O RING
O RING (D:1.2, ID:4.0)

09280-04004-000   0928004004000

0928004004000

Unit Price

22
BOLT(6X12)<br />BOLT, PISTON COOLING
BOLT(6X12)
BOLT, PISTON COOLING

09106-06075-000   0910606075000

0910606075000

Unit Price

23
GASKET OIL GALLERY<br />GASKET
GASKET OIL GALLERY
GASKET

09168-16002-000   0916816002000

0916816002000

Unit Price

24
PLUG,OIL GALL NO.1<br />PLUG, OIL GALLERY
PLUG, OIL GALL NO.1
PLUG, OIL GALLERY

09248-16013-000   0924816013000

0924816013000

Unit Price

25
PLUG,OIL GALL<br />PLUG, OIL GALLERY UPPER LH
PLUG, OIL GALL
PLUG, OIL GALLERY UPPER LH

09248-10010-000   0924810010000

0924810010000

Unit Price

26
CRNK DRAIN PLUG GASK<br />GASKET, OIL GALLERY
CRNK DRAIN PLUG GASK
GASKET, OIL GALLERY

09168-10002-000   0916810002000

0916810002000

Unit Price

27
O RING (D:1.9,ID:7.8)
O RING (D:1.9, ID:7.8)

09280-08012-000   0928008012000

0928008012000

Unit Price

28
JET(140)<br />JET
JET(140)
JET

09493-28012-000   0949328012000

0949328012000

Unit Price

29
COVER, BREATHER

11370-44G00-000   1137044G00000

1137044G00000

Unit Price

30
BOLT

01547-0635A-000   015470635A000

015470635A000

Unit Price

31
BOLT (10X305)

09103-10153-000   0910310153000

0910310153000

Unit Price

32
BOLT
BOLT (10X240)

09103-10221-000   0910310221000

0910310221000

Unit Price

33
NUT
NUT

09159-10115-000   0915910115000

0915910115000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CRANKCASE of your Suzuki of GSR. Let us know if you have any questions.

Genuine parts for Suzuki 600 GSR 2009
