LEFT LEVER - HANDGRIP COLOR : CT5 = 019(BLACK), YD8(SILVER)

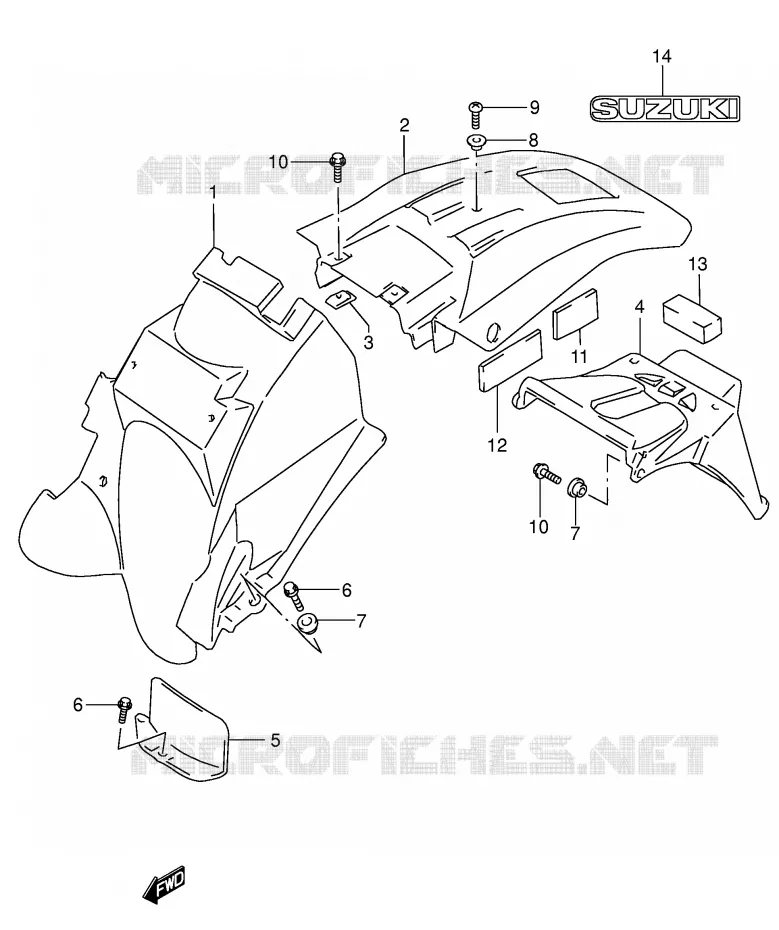

REAR FENDER FOR SUZUKI DR 650 2004

LABEL

Item numbers

BODY, RR FENDER FR
BODY, REAR FENDER FRONT

63112-32E00-000 6311232E00000

$71,97

Unit Price

BODY, RR FENDER RR
BODY, REAR FENDER REAR (YELLOW

63113-32E10-YU1 6311332E10YU1

$150,97

Unit Price

63113-32E30-019
BODY, REAR FENDER REAR (BLACK)

63113-32E10-019 6311332E10019

Not available

63113-32E30-30H
BODY, REAR FENDER REAR (WHITE)

63113-32E10-30H 6311332E1030H

Not available

DISCONTINUE
BODY, REAR FENDER REAR (BLUE)

63113-32E10-YJ4 6311332E10YJ4

Not available

PLATE, FRAME COVER
NUT, FENDER REAR

47153-19C01-000 4715319C01000

$9,97

Unit Price

EXTENSION, RR FENDER
EXTENSION, REAR FENDER

63311-32E00-000 6331132E00000

$55,97

Unit Price

MUDGUARD, RR FENDER
MUD GUARD, REAR FENDER

63411-32E00-000 6341132E00000

$16,97

Unit Price

BOLT, 6X16
BOLT, REAR FENDER

09113-06001-000 0911306001000

$4,97

Unit Price

WASHER

09169-06073-000 0916906073000

$5,97

Unit Price

WASHER

09169-06054-000

09169-06053-000

$3,97

Unit Price

SCREW

09139-06067-000

09139-06237-000

$5,97

Unit Price

01550-0616A
BOLT, REAR FENDER

01550-06163-000

Not available

CUSHION
CUSHION, SIDE

63191-25C00-000 6319125C00000

$4,97

Unit Price

CUSHION, RR FENDER
CUSHION, REAR FENDER

63118-32E00-000 6311832E00000

$11,97

Unit Price

CUSHION, RR FENDER EXT
CUSHION, EXTENSION

63119-32E00-000 6311932E00000

$10,97

Unit Price

DISCONTINUE
EMBLEM

68177-04A00-GY8 6817704A00GY8

Not available

DISCONTINUE
EMBLEM

68177-04A00-HU8 6817704A00HU8

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the REAR FENDER of your Suzuki of DR. Let us know if you have any questions.
