CYLINDER

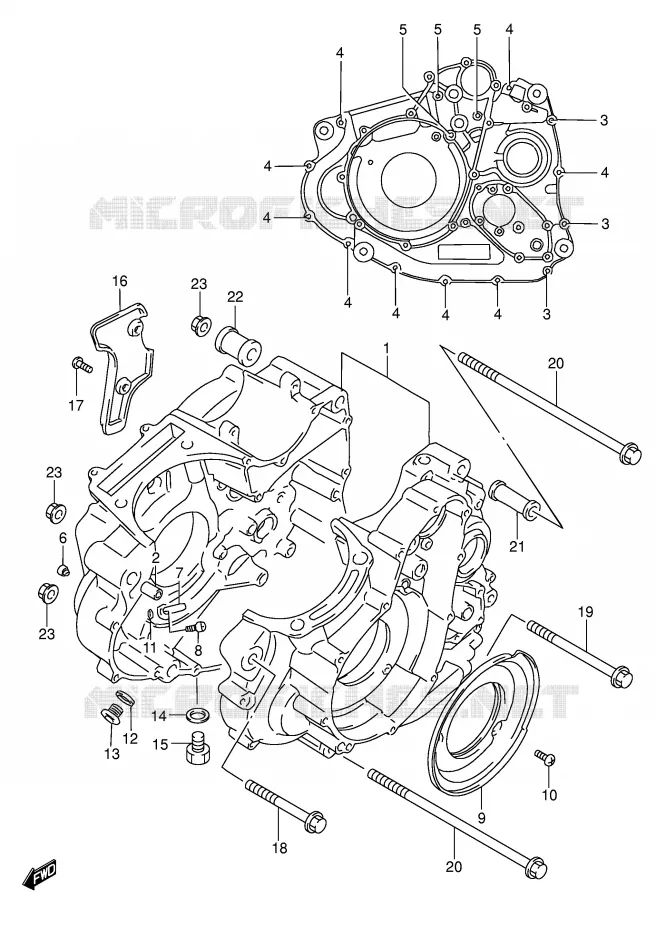

CRANKCASE FOR SUZUKI DR 650 2004

CRANKCASE COVER

Item numbers

DISCONTINUE

11300-32861-000

Not available

DISCONTINUE
CRANKCASE SET

11300-32870-000 1130032870000

Not available

11300-32882

11300-32880-000

Not available

09202-10006-000 0920210006000

$13,97

Unit Price

BOLT
BOLT (6X60)

01547-06607-000 0154706607000

$4,97

Unit Price

BOLT, 6X60
BOLT (L:60)

09103-06261-000 0910306261000

$5,97

Unit Price

BOLT (6X40)

01547-06407-000 0154706407000

$3,97

Unit Price

BOLT, SPROCKET, COV L4
BOLT (L:40)

09103-06215-000 0910306215000

$4,97

Unit Price

BOLT

01547-06803-000

01547-0680B-000

$5,97

Unit Price

JET, OIL GALLERY

11180-43410-000 1118043410000

$18,97

Unit Price

JET, PISTON COOLING

11390-04F00-000 1139004F00000

$16,97

Unit Price

BOLT (6X12)

09106-06075-000 0910606075000

$3,97

Unit Price

SEPARATOR, CRANKCASE OIL
SEPARATOR, OIL BREATHER

11323-32E00-000 1132332E00000

$16,97

Unit Price

SCREW

02112-06123-000

02112-3612A-000

$3,97

Unit Price

O RING
O RING (D:1.2 ID:4.0)

09280-04004-000 0928004004000

$2,97

Unit Price

GASKET, 13.8X18.8X0.4
GASKET, OIL GALLERY PLUG

09168-14002-000 0916814002000

$3,97

Unit Price

09248-14011
PLUG, OIL GALLERY

09248-14005-000

Not available

GASKET, 13.8X18.8X0.4
GASKET, OIL DRAIN PLUG

09168-14002-000 0916814002000

$3,97

Unit Price

PLUG
PLUG, OIL DRAIN

09247-14026-000 0924714026000

$6,97

Unit Price

COVER, BREATHER

11317-32E00-000 1131732E00000

$13,97

Unit Price

SCREW

02112-06123-000

02112-3612A-000

$3,97

Unit Price

BOLT (10X100)

09103-10110-000 0910310110000

$11,97

Unit Price

BOLT (10X130)

09103-10237-000 0910310237000

$13,97

Unit Price

BOLT
BOLT (10X235)

09103-10239-000 0910310239000

$28,97

Unit Price

SPACER, ENGINE MOUNT(L:65)
SPACER (L:65)

11610-45410-000 1161045410000

$17,97

Unit Price

SPACER, ENGINE MOUNT(L27)
SPACER (L:27)

11610-20C00-000 1161020C00000

$17,97

Unit Price

NUT

09159-10058-000

09159-10115-000

$5,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CRANKCASE of your Suzuki of DR. Let us know if you have any questions.
