SHOCK ABSORBER LINKAGE

REAR WHEEL FOR SUZUKI DR 650 2004

REAR CALIPER

Item numbers

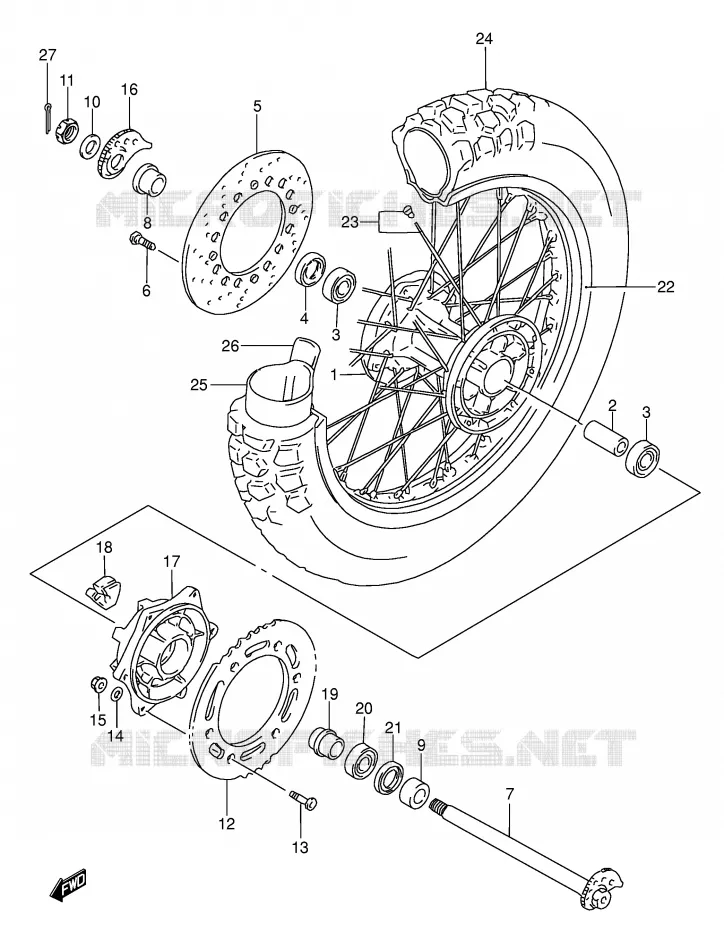

REAR WHEEL Suzuki MOTO 650 DR 2004 DR650SEK4(E3/E28)
1
2
3
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
1
HUB, RR WHEEL
HUB, REAR WHEEL

64111-15D10-000   6411115D10000

6411115D10000

Unit Price

2
SPACER, RR HUB BEARING
SPACER, HUB BEARING

64731-15D00-000   6473115D00000

6473115D00000

Unit Price

3
BALL BEARING
BALL BEARING

08123-62047-000  

08123-6204B-000
 0812362047000

Unit Price

4
DUST SEAL
SEAL, HUB RH (26X47X5)

09283-26019-000   0928326019000

0928326019000

Unit Price

5
DISC, RR BRAKE
DISC, REAR BRAKE

69211-32E01-000   6921132E01000

6921132E01000

Unit Price

6
BOLT
BOLT, DISC

09106-08155-000   0910608155000

0910608155000

Unit Price

7
AXLE, RR
AXLE, REAR

64710-32E10-000   6471032E10000

6471032E10000

Unit Price

8
SPACER, RR AXLE, R
SPACER, RH

64741-05D00-000   6474105D00000

6474105D00000

Unit Price

9
SPACER, RR AXLE, L
SPACER, LH

64751-15D00-000   6475115D00000

6475115D00000

Unit Price

10
WASHER

09160-19022-000   0916019022000

0916019022000

Unit Price

11
NUT

08314-40183-000  

08314-4018A-000
 0831440183000

Unit Price

12
SPROCKET, RR(NT:42)
SPROCKET, REAR (NT:42)

64511-32E00-000   6451132E00000

6451132E00000

Unit Price

13
SCREW<br />BOLT (8X30.5)
SCREW
BOLT (8X30.5)

09120-08010-000   0912008010000

0912008010000

Unit Price

14
08322-0108A
WASHER

08322-01083-000  

0832201083000
Not available
15
NUT
NUT

08319-31087-000   0831931087000

0831931087000
Not available
16
ADJUSTER, CHAIN, R
ADJUSTER, CHAIN, RH

61410-32E00-000   6141032E00000

6141032E00000

Unit Price

17
DRUM, RR SPROCKET MOUNTING
DRUM, REAR SPROCKET

64611-15D01-000   6461115D01000

6461115D01000

Unit Price

18
ABSORBER, RR HUB SHOCK
ABSORBER, REAR HUB SHOCK

64651-32E00-000   6465132E00000

6465132E00000

Unit Price

19
RETAINER, RR SPROCKET DRUM
RETAINER, SPROCKET DRUM

64733-15D00-000   6473315D00000

6473315D00000

Unit Price

20
BEARING<br />BEARING (25X52X15)
BEARING
BEARING (25X52X15)

09262-25061-000   0926225061000

0926225061000

Unit Price

21
SEAL, OIL
SEAL, DUST (34X52X6)

09283-34003-000   0928334003000

0928334003000

Unit Price

22
RIM, RR WHEEL(17M/CXMT2.50)

65311-32E00-000  

65311-32E01-000
 6531132E00000

Unit Price

23
SPOKE SET, RR WHEEL
SPOKE SET, REAR WHEEL

65320-32E00-000   6532032E00000

6532032E00000

Unit Price

24
65110-32E01
TIRE, REAR (120/90-17 64S) (BRIDGESTONE)

65110-32E00-000   6511032E00000

6511032E00000
Not available
25
TUBE ASSY, WHEEL INNER

65200-32E00-000   6520032E00000

6520032E00000

Unit Price

26
PROTECTOR, WHL INR TUBE

65261-32E00-000  

65261-32E01-000
 6526132E00000

Unit Price

27
PIN

04111-40308-000  

04111-4030A-000
 0411140308000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the REAR WHEEL of your Suzuki of DR. Let us know if you have any questions.
