FOOTREST

FUEL TANK (SV650SL2 E2) FOR SUZUKI SV 650 2012

FUEL TANK (SV650SL2 E24)

Item numbers

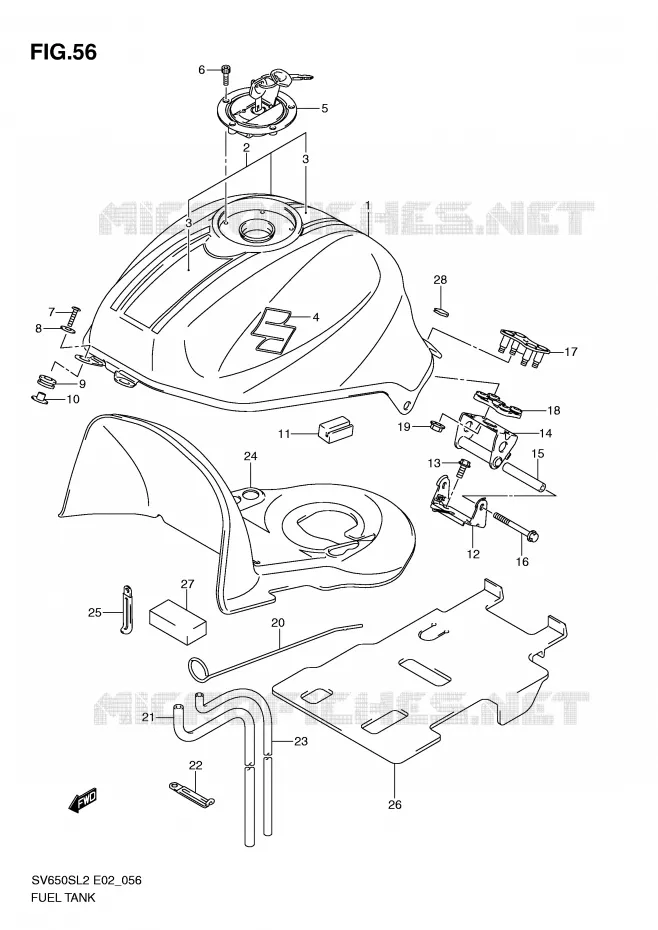

FUEL TANK (SV650SL2 E2) Suzuki MOTO 650 SV 2012 SV650SAL2(E02)
1
2
3
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
1
TANK ASSY, FUEL (BLACK)

44100-16G70-YAY   4410016G70YAY

4410016G70YAY
Not available
2
TANK ASSY, FUEL (WHITE)

44100-17G10-YBD   4410017G10YBD

4410017G10YBD
Not available
3
DISCONTINUE
TAPE SET (BLUE/WHITE)

68110-17G01-LR5   6811017G01LR5

6811017G01LR5
Not available
4
EMBLEM, S
EMBLEM, "S"

68111-18G20-000   6811118G20000

6811118G20000

Unit Price

5
CAP SET, FUEL TANK FILLER

44200-16850-000  

44200-16852-000
 4420016850000

Unit Price

6
BOLT, L:20<br />BOLT (5X20)
BOLT, L:20
BOLT (5X20)

09106-05017-000   0910605017000

0910605017000

Unit Price

7
SCREW<br />SCREW (6X25)
SCREW
SCREW (6X25)

09139-06029-000   0913906029000

0913906029000

Unit Price

8
WASHER (6.5X22X1.6)
WASHER (6.5X22X1.6)

09160-06054-000   0916006054000

0916006054000

Unit Price

9
CUSHION, FUEL TANK FR

44511-16G00-000  

44511-16G01-000
 4451116G00000

Unit Price

10
SPACER, FUEL TANK FR
SPACER, FRONT

44512-16G00-000   4451216G00000

4451216G00000

Unit Price

11
CUSHION, FUEL TANK SIDE
CUSHION, SIDE

44541-16G00-000   4454116G00000

4454116G00000

Unit Price

12
DISCONTINUE
BRACKET, FUEL TANK NO.2

44550-16G00-000  

4455016G00000
Not available
13
BOLT
BOLT

01550-0820B-000   015500820B000

015500820B000

Unit Price

14
BRACKET, FUEL TANK NO.1

44530-16G00-000   4453016G00000

4453016G00000

Unit Price

15
SPACER, FUEL TANK
SPACER, REAR

44561-35F00-000   4456135F00000

4456135F00000

Unit Price

16
BOLT (6X100)

09103-06060-000   0910306060000

0910306060000

Unit Price

17
BRACKET, FUEL TANK RR UP
BRACKET, REAR UPPER

44570-16G00-000   4457016G00000

4457016G00000

Unit Price

18
CUSHION, FUEL TANK RR
CUSHION, REAR

44542-16G00-000   4454216G00000

4454216G00000

Unit Price

19
NUT
NUT

08319-3106B-000   083193106B000

083193106B000

Unit Price

20
STAY, FUEL TANK

44574-16G00-000   4457416G00000

4457416G00000

Unit Price

21
DISCONTINUE
HOSE, WATER DRAIN

44423-17G00-000  

4442317G00000
Not available
22
CLAMP(L:80)

09404-06433-000  

09404-06036-000
 0940406433000

Unit Price

23
HOSE, FUEL TANK BREATHER

44424-18G00-000  

44424-18G01-000
 4442418G00000

Unit Price

24
SHIELD, FUEL TANK HEAT

44191-16G00-000   4419116G00000

4419116G00000

Unit Price

25
CLAMP(L:80)
CLAMP(L:80)

09404-06434-000  

09404-06036-000
 0940406434000

Unit Price

26
SHEET, HEAT SHIELD RUBBER
SHEET, HEAT RUBBER

44271-16G10-000   4427116G10000

4427116G10000

Unit Price

27
CUSHION, FUEL TANK
CUSHION

44545-16G00-000   4454516G00000

4454516G00000

Unit Price

28
DISCONTINUE
MOLDING, FUEL TANK

68241-16G00-000  

6824116G00000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
