BATTERY (SV650SAL2 E24)

ELECTRICAL (SV650SL2 E2) FOR SUZUKI SV 650 2012

ELECTRICAL (SV650SL2 E24)

Item numbers

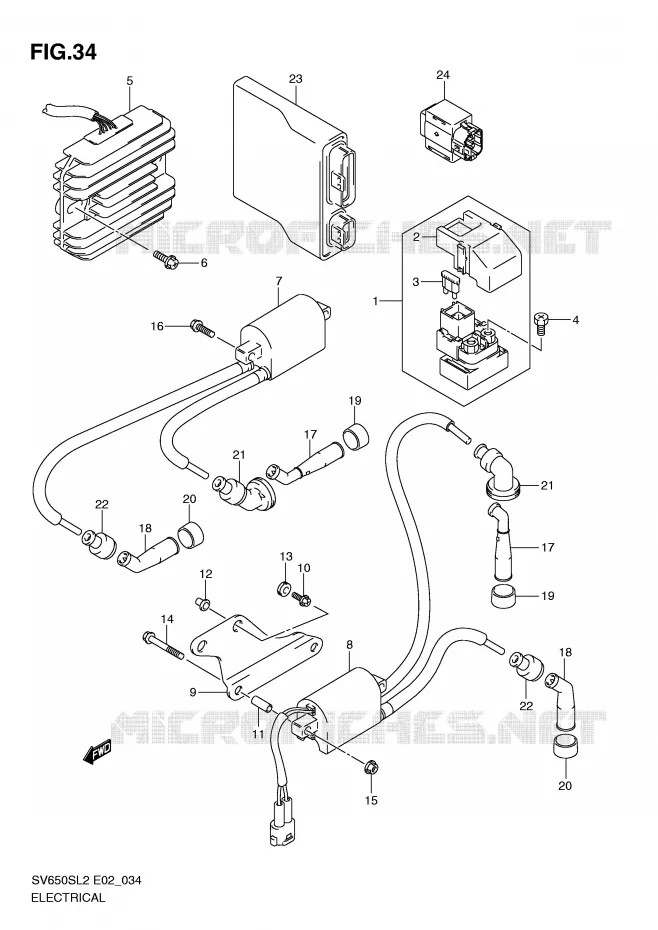

ELECTRICAL (SV650SL2 E2) Suzuki MOTO 650 SV 2012 SV650SAL2(E02)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
17
18
18
19
19
20
20
21
21
22
22
23
24
1
RELAY ASSY, STARTING MOTOR

31800-06G00-000  

31800-06G02-000
 3180006G00000

Unit Price

2
COVER<br />COVER, RELAY ASSY
COVER
COVER, RELAY ASSY

31861-47E00-000   3186147E00000

3186147E00000

Unit Price

3
FUSE (30A)
FUSE (30A)

09481-30101-000   0948130101000

0948130101000

Unit Price

4
SCREW (6X8)
SCREW (6X8)

09128-06013-000   0912806013000

0912806013000

Unit Price

5
RECTIFIER ASSY

32800-16G01-000  

32800-16G02-000
 3280016G01000

Unit Price

6
SCREW

02162-0620B-000  

02162-0620C-000
 021620620B000

Unit Price

7
DISCONTINUE
COIL ASSY, IGNITION FRONT

33410-17GA0-000  

3341017GA0000
Not available
8
33420-17GA2
COIL ASSY, IGNITION REAR

33420-17GA0-000  

3342017GA0000
Not available
9
BRACKET, IGNITION COIL RR
BRACKET, IGN COIL REAR

33424-17GA0-000   3342417GA0000

3342417GA0000

Unit Price

10
BOLT, 6X20, W/PL WASHE

09116-06130-000  

09116-06115-000
 0911606130000

Unit Price

11
SPACER (6.4X10X18)

09180-06195-000   0918006195000

0918006195000

Unit Price

12
SPACER, EXH PIPE COVE
SPACER (6.2X8.4X6.9)

09180-06325-000   0918006325000

0918006325000

Unit Price

13
CUSHION(8X18X5.8)

09320-06017-000  

09320-08516-000
 0932006017000

Unit Price

14
BOLT
BOLT

01547-0640A-000   015470640A000

015470640A000

Unit Price

15
NUT

08316-1006A-000   083161006A000

083161006A000

Unit Price

16
BOLT

01547-0625A-000  

01547-0625B-000
 015470625A000

Unit Price

17
CAP ASSY, SPARK PLUG
CAP ASSY, SPARK PLUG (CENTER)

33510-17G00-000   3351017G00000

3351017G00000

Unit Price

18
CAP ASSY, SPARK PLUG
CAP ASSY, SPARK PLUG (SIDE)

33510-20E00-000   3351020E00000

3351020E00000

Unit Price

19
SEAL, SPARK PLUG
SEAL, SPARK PLUG CAP (CENTER)

33541-23E10-000   3354123E10000

3354123E10000

Unit Price

20
SEAL,SPARK PLUG<br />SEAL, SPARK PLUG CAP (SIDE)
SEAL, SPARK PLUG
SEAL, SPARK PLUG CAP (SIDE)

33541-47D00-000   3354147D00000

3354147D00000

Unit Price

21
SEAL, HIGH TENSION CORD CTR
SEAL, HIGH TENSION (CENTER)

33542-17G01-000   3354217G01000

3354217G01000

Unit Price

22
SEAL,HIGH TENSION CORD<br />SEAL, SPARK PLUG CAP (SIDE)
SEAL, HIGH TENSION CORD
SEAL, SPARK PLUG CAP (SIDE)

33542-38B00-000   3354238B00000

3354238B00000

Unit Price

23
CONTROL UNIT, FI

32920-17GA1-000   3292017GA1000

3292017GA1000
Not available
24
SENSOR ASSY, FUEL CUT

33960-06G10-000   3396006G10000

3396006G10000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
