Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

REAR CALIPER (SV650SAL2 E24)

REAR BRAKE MASTER CYLINDER (SV650SL2 E2) FOR SUZUKI SV 650 2012

REAR BRAKE MASTER CYLINDER (SV650SL2 E24)

Item numbers

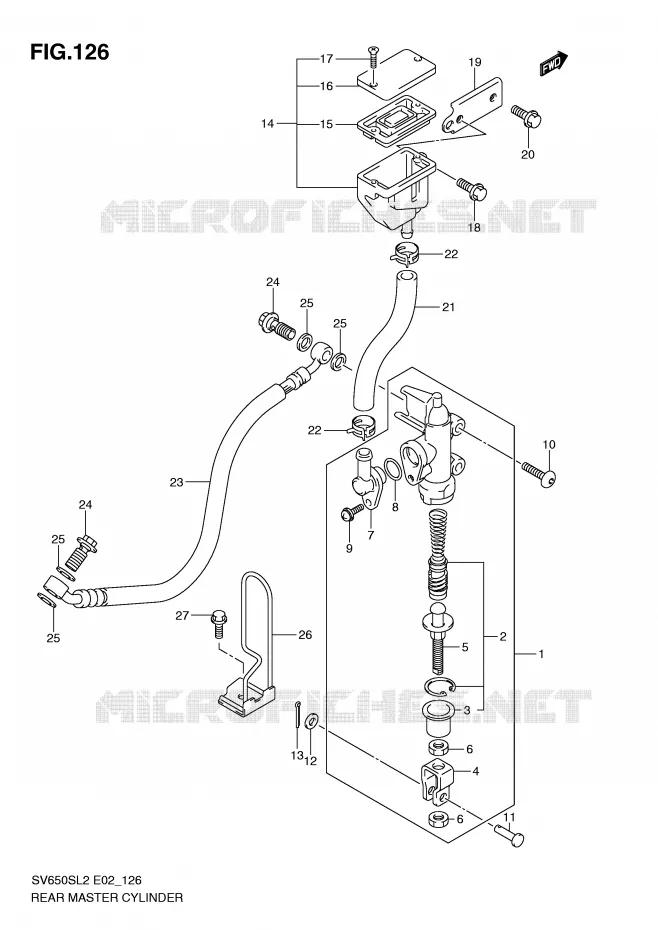

REAR BRAKE MASTER CYLINDER (SV650SL2 E2) Suzuki MOTO 650 SV 2012 SV650SAL2(E02)
1
2
3
4
5
6
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
22
23
24
24
25
25
25
25
26
27
1
CYLINDER ASSY, REAR M
CYLINDER ASSY, REAR MASTER

69600-16G00-000   6960016G00000

6960016G00000

Unit Price

2
PISTON/CUP SET

69600-34820-000  

69600-34821-000
 6960034820000

Unit Price

3
BOOT
BOOT

69691-00A00-000   6969100A00000

6969100A00000

Unit Price

4
YOKE
YOKE

69692-27A30-000   6969227A30000

6969227A30000

Unit Price

5
ROD, PUSH
ROD, PUSH

69670-48B00-000   6967048B00000

6967048B00000

Unit Price

6
NUT
NUT

69693-05A00-000   6969305A00000

6969305A00000

Unit Price

7
CONNECTOR
CONNECTOR

69672-05A00-000   6967205A00000

6967205A00000

Unit Price

8
O RING CONECTOR<br />O RING
O RING CONECTOR
O RING

69686-34200-000   6968634200000

6968634200000

Unit Price

9
SCREW
SCREW

02112-7412A-000  

02112-0412A-000
 021127412A000

Unit Price

10
SCREW (6X20)
SCREW (6X20)

09139-06028-000   0913906028000

0913906028000

Unit Price

11
PIN<br />PIN (6X18.2)
PIN
PIN (6X18.2)

09200-06068-000   0920006068000

0920006068000

Unit Price

12
WASHER
WASHER

08322-0106B-000   083220106B000

083220106B000

Unit Price

13
PIN<br />COTTER PIN
PIN
COTTER PIN

04111-2015A-000   041112015A000

041112015A000

Unit Price

14
TANK ASSY,RR RESERVOIR<br />TANK ASSY, REAR RESERVOIR
TANK ASSY, RR RESERVOIR
TANK ASSY, REAR RESERVOIR

69740-01D02-000   6974001D02000

6974001D02000

Unit Price

15
DIAPHRAGM
DIAPHRAGM

59667-04700-000   5966704700000

5966704700000

Unit Price

16
CAP
CAP

59669-05D00-000   5966905D00000

5966905D00000

Unit Price

17
SCREW
SCREW

69689-04A00-000   6968904A00000

6968904A00000

Unit Price

18
BOLT,RESERVOIR TANK<br />BOLT (6X12)
BOLT, RESERVOIR TANK
BOLT (6X12)

09103-06222-000   0910306222000

0910306222000

Unit Price

19
BRACKET, RR RESERVOIR TANK

69750-16G10-000   6975016G10000

6975016G10000

Unit Price

20
BOLT

01550-0616A-000   015500616A000

015500616A000

Unit Price

21
HOSE, RR RESERVOIR TA
HOSE, RESERVOIR TANK

69731-16G20-000   6973116G20000

6973116G20000

Unit Price

22
CLIP
CLIP

09401-13417-000   0940113417000

0940113417000

Unit Price

23
DISCONTINUE
HOSE, REAR BRAKE

69480-17G10-000  

6948017G10000
Not available
24
BOLT, BRAKE FLUID<br />UNION
BOLT, BRAKE FLUID
UNION

09360-10062-000   0936010062000

0936010062000

Unit Price

25
WASHER<br />WASHER (10X15X1.5)
WASHER
WASHER (10X15X1.5)

09161-10009-000   0916110009000

0916110009000

Unit Price

26
GUIDE, RR BRAKE HOSE NO.1

69260-16G00-000   6926016G00000

6926016G00000

Unit Price

27
BOLT
BOLT

01547-0616B-000   015470616B000

015470616B000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
