ELECTRICAL (MODEL K7) FOR SUZUKI V-STROM 650 2007

ELECTRICAL (MODEL K8 / K9 / L0)

Item numbers

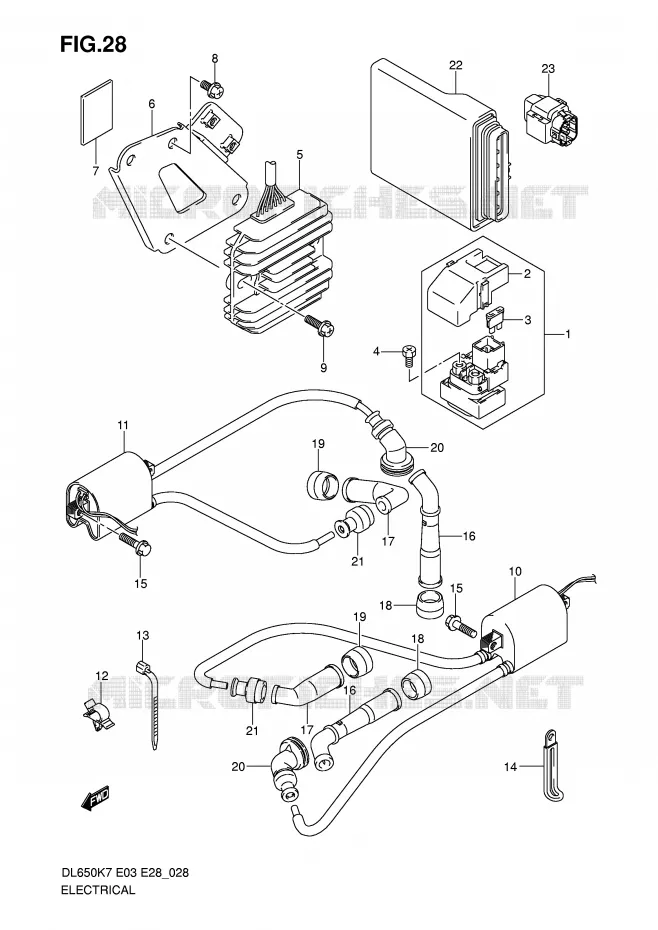

ELECTRICAL (MODEL K7) Suzuki MOTO 650 V-STROM 2007 DL650K7(E3/E28)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
15
16
16
17
17
18
18
19
19
20
20
21
21
22
23
1
RELAY ASSY, STARTING MOTOR

31800-06G00-000  

31800-06G02-000
 3180006G00000

Unit Price

2
COVER<br />COVER, RELAY ASSY
COVER
COVER, RELAY ASSY

31861-47E00-000   3186147E00000

3186147E00000

Unit Price

3
FUSE (30A)
FUSE (30A)

09481-30101-000   0948130101000

0948130101000

Unit Price

4
SCREW (6X8)
SCREW (6X8)

09128-06013-000   0912806013000

0912806013000

Unit Price

5
RECTIFIER ASSY

32800-16G01-000  

32800-16G02-000
 3280016G01000

Unit Price

6
BRACKET, RECT FTG

32831-27G10-000   3283127G10000

3283127G10000
Not available
7
PROTECTOR (170X95X3.0)
PROTECTOR (170X95X3.0)

33651-37000-000   3365137000000

3365137000000

Unit Price

8
SCREW
BOLT

02162-0610A-000   021620610A000

021620610A000

Unit Price

9
SCREW<br />BOLT
SCREW
BOLT

02162-0620C-000   021620620C000

021620620C000

Unit Price

10
COIL ASSY, IGNITION

33410-27G00-000  

33410-27G02-000
 3341027G00000

Unit Price

11
COIL ASSY, IGNITION REAR

33420-27G00-000  

33420-27G03-000
 3342027G00000

Unit Price

12
CLAMP

09403-10319-000   0940310319000

0940310319000

Unit Price

13
CLAMP,WIRING HARNESS<br />CLAMP (L:165)
CLAMP, WIRING HARNESS
CLAMP (L:165)

09407-18402-000   0940718402000

0940718402000

Unit Price

14
CLAMP(L:65)
CLAMP(L:65)

09404-06429-000  

09404-06039-000
 0940406429000

Unit Price

15
BOLT
BOLT

01547-0625B-000   015470625B000

015470625B000

Unit Price

16
CAP ASSY, SPARK PLUG
CAP, SPARK PLUG

33510-17G00-000   3351017G00000

3351017G00000

Unit Price

17
CAP ASSY, SPARK PLUG
CAP, SPARK PLUG

33510-20E00-000   3351020E00000

3351020E00000

Unit Price

18
SEAL, SPARK PLUG CAP
SEAL, SPARK PLUG CAP

33541-23E01-000   3354123E01000

3354123E01000

Unit Price

19
SEAL,SPARK PLUG<br />SEAL, SPARK PLUG CAP
SEAL, SPARK PLUG
SEAL, SPARK PLUG CAP

33541-47D00-000   3354147D00000

3354147D00000

Unit Price

20
SEAL, HIGH TENSION CORD CTR
SEAL, HIGH TENSION CORD

33542-17G01-000   3354217G01000

3354217G01000

Unit Price

21
SEAL, HIGH TENSION CORD
SEAL, HIGH TENSION CORD

33542-38B00-000   3354238B00000

3354238B00000

Unit Price

22
CONTROL UNIT, FI

32920-27GC1-000   3292027GC1000

3292027GC1000

Unit Price

23
SENSOR ASSY, FUEL CUT

33960-27G00-000   3396027G00000

3396027G00000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the ELECTRICAL (MODEL K7) of your Suzuki V-STROM 650 of V-STROM. Let us know if you have any questions.
