THROTTLE BODY FOR SUZUKI V-STROM 650 2007

THROTTLE BODY FITTING

Item numbers

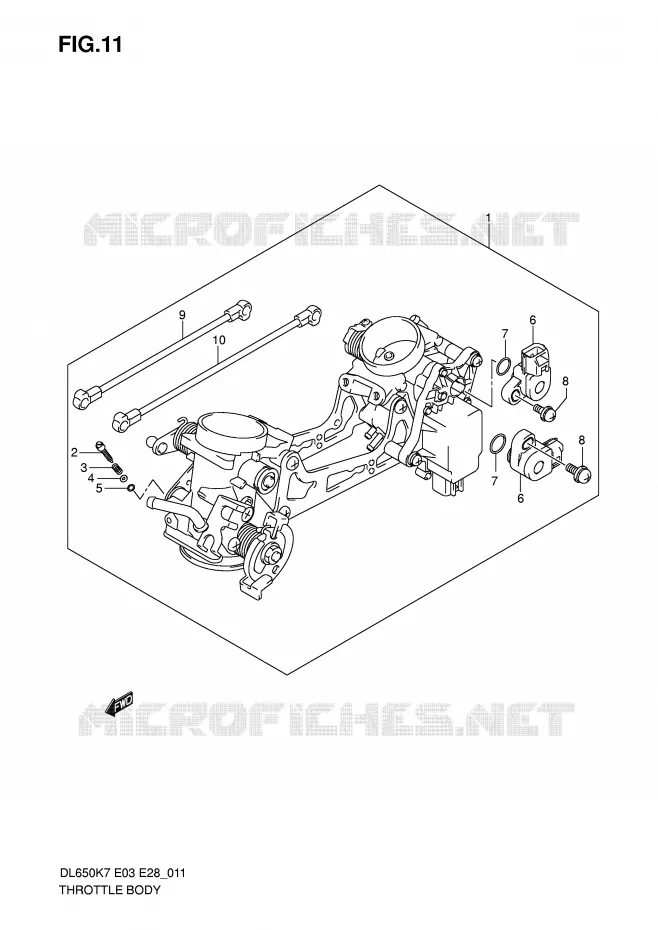

THROTTLE BODY Suzuki MOTO 650 V-STROM 2007 DL650K7(E3/E28)

1

BODY ASSY, THROTTLE

13405-27G20-000

13405-27G22-000

$1 873,97

Unit Price

1

THROTTLE BODY

13405-27G30-000 1340527G30000

Not available

2

SCREW

13269-33E00-000 1326933E00000

$15,97

Unit Price

3

SPRING, THROTTLE SCREW
SPRING

13268-48700-000 1326848700000

$6,97

Unit Price

4

WASHER

13606-47A00-000 1360647A00000

$3,97

Unit Price

5

O RING, PILOT AIR SCREW

13295-29900-000

13295-29901-000

$5,97

Unit Price

6

SENSOR ASSY

13580-27G20-000 1358027G20000

Not available

7

O RING

13575-29G00-000

13575-29G01-000

$6,97

Unit Price

8

SCREW

13605-02F00-000 1360502F00000

$5,97

Unit Price

9

ROD ASSY

13552-17G00-000 1355217G00000

$33,97

Unit Price

10

ROD ASSY

13552-16G00-000 1355216G00000

$42,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the THROTTLE BODY of your Suzuki V-STROM 650 of V-STROM. Let us know if you have any questions.
