TAIL LIGHT

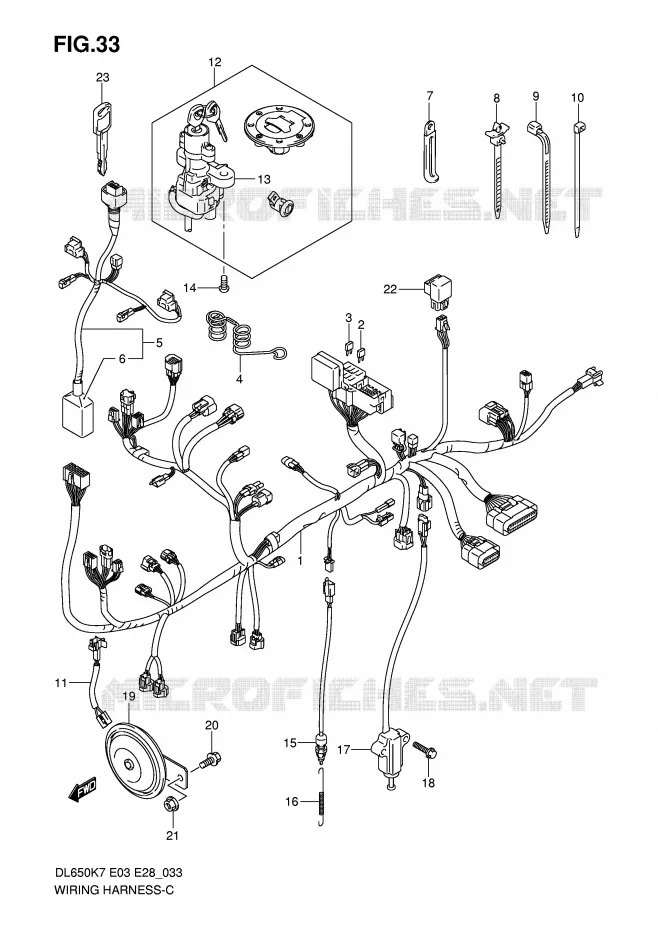

WIRING HARNESS (DL650K7) FOR SUZUKI V-STROM 650 2007

WIRING HARNESS (DL650AK7) REFER TO FIG.33B(F- 9) FOR DL650K8/K9/L0

Item numbers

DISCONTINUE
HARNESS, WIRING, NO.1

36610-27GB0-000 3661027GB0000

Not available

FUSE (10A)

09481-10501-000

Not available

FUSE (15A)

09481-15501-000 0948115501000

$3,97

Unit Price

GUIDE, WIRING HARNESS

36619-06G01-000 3661906G01000

$31,97

Unit Price

36620-27G81
HARNESS, WIRING, NO.2

36620-27G80-000 3662027G80000

Not available

COVER, CONNECTOR

36618-18G10-000

Not available

CLAMP(L:65)

09404-06429-000

09404-06039-000

$3,97

Unit Price

CLAMP(L:80)

09404-06433-000

09404-06036-000

$3,97

Unit Price

CLAMP
CLAMP (L:90)

09407-11402-000 0940711402000

$3,97

Unit Price

BAND, WIRING HARNESS

09407-11401-000

09407-14403-000

$3,97

Unit Price

CLAMP
CLAMP (L:145)

09407-14407-000 0940714407000

$5,97

Unit Price

WIRE, HORN LEAD

36852-06G00-000 3685206G00000

$23,97

Unit Price

37000-27863

37000-27860-000

Not available

LOCK SET

37000-27870-000 3700027870000

Not available

37100-27G01
LOCK ASSY, STEERING

37100-27G00-000 3710027G00000

Not available

BOLT
BOLT (8X20)

09139-08016-000 0913908016000

$5,97

Unit Price

SWITCH ASSY, STOP LAMP

37740-45D00-000 3774045D00000

$21,97

Unit Price

BRAKE SWITCH SPRING
SPRING

09443-06012-000 0944306012000

$5,97

Unit Price

37840-06G02

37840-06G00-000

Not available

01550-0616A
BOLT

01550-06163-000

Not available

HORN ASSY

38500-27G00-000 3850027G00000

$124,97

Unit Price

BOLT

01550-08123-000

01550-0812B-000

$4,97

Unit Price

NUT
NUT, HORN

08316-1008A-000 083161008A000

$3,97

Unit Price

RELAY ASSY
RELAY ASSY, FUEL PUMP

38740-24X50-000 3874024X50000

$43,97

Unit Price

KEY, BLANK

37146-33E00-000 3714633E00000

$20,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the WIRING HARNESS (DL650K7) of your Suzuki V-STROM 650 of V-STROM. Let us know if you have any questions.
