Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

FRAME FOR SUZUKI V-STROM 650 2012

FOOTREST

Item numbers

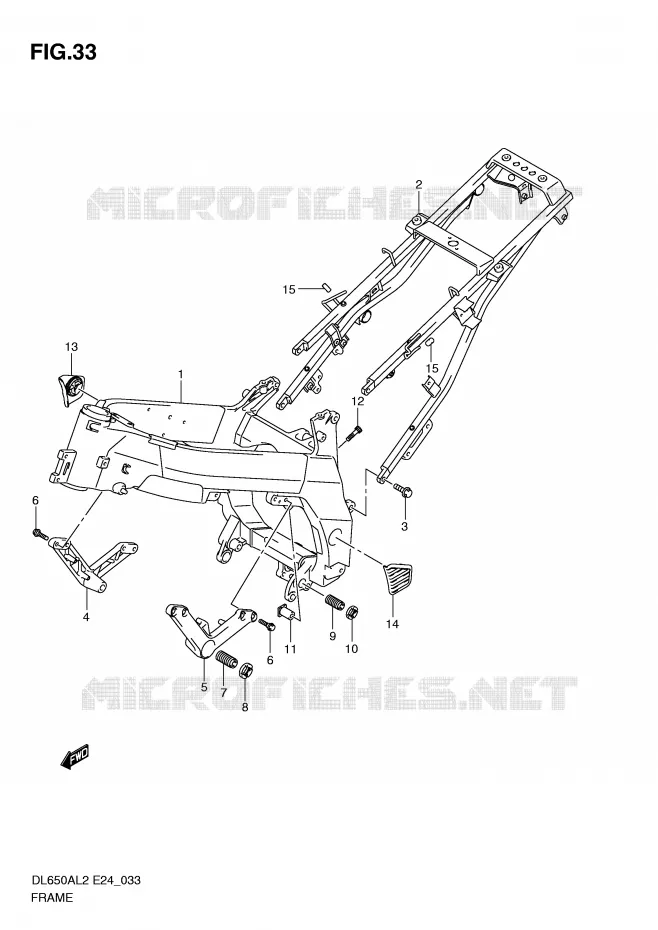

FRAME Suzuki MOTO 650 V-STROM 2012 DL650AL2(E24)
1
2
3
4
5
6
6
7
8
9
10
11
12
13
14
15
15
1
FRAME (BLACK)

41100-27G20-YAP   4110027G20YAP

4110027G20YAP
Not available
2
RAIL, SEAT

41200-11J00-000  

41200-11J02-000
 4120011J00000

Unit Price

3
BOLT, CALIPER
BOLT (10X30)

09103-10379-000   0910310379000

0910310379000

Unit Price

4
BRACKET, ENGINE MOUNTING, R
BRACKET, MOUNT RH (BLACK)

41911-06G90-YAP   4191106G90YAP

4191106G90YAP

Unit Price

5
BRACKET, ENGINE MOUNTING, L
BRACKET, MOUNT LH (BLACK)

41912-06G90-YAP   4191206G90YAP

4191206G90YAP

Unit Price

6
BOLT
BOLT (8X30)

09106-08121-000   0910608121000

0910608121000

Unit Price

7
BOLT, CRANK CASE ADJUST CTR
BOLT, ADJUSTER CENTER

41923-16G00-000   4192316G00000

4192316G00000

Unit Price

8
NUT,CRANK CASE ADJUST CTR<br />NUT, ADJUSTER CENTER
NUT, CRANK CASE ADJUST CTR
NUT, ADJUSTER CENTER

41922-19F20-000   4192219F20000

4192219F20000

Unit Price

9
BOLT, CRANK CASE ADJUST LWR

41921-16G00-000  

41921-16G01-000
 4192116G00000

Unit Price

10
NUT, CRANK CASE ADJUST LWR
NUT, ADJUSTER LOWER

41922-33E20-000   4192233E20000

4192233E20000

Unit Price

11
SPACER, MOUNTING RR UPR RH
SPACER, ADJUSTER UPPER

41941-19F01-000   4194119F01000

4194119F01000

Unit Price

12
BOLT (8X38)

09106-08168-000   0910608168000

0910608168000

Unit Price

13
COVER, PIVOT RH

43585-27G10-000   4358527G10000

4358527G10000

Unit Price

14
COVER, PIVOT LH

43595-27G00-000   4359527G00000

4359527G00000

Unit Price

15
CAP

09251-04003-000   0925104003000

0925104003000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRAME of your Suzuki V-STROM 650 of V-STROM. Let us know if you have any questions.

Genuine parts for Suzuki 650 V-STROM 2012

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 650 V-STROM 2012

Select your Suzuki 2012 model

650 V-STROM 2012 DL650AL2(E24)

V-STROM 650

Suzuki V-STROM

Displacement: 650 cc
Year: 2012
Model code DL650AL2(E24)
