INDICATORS

TAIL LIGHT FOR SUZUKI V-STROM 650 2012

WIRING HARNESS

Item numbers

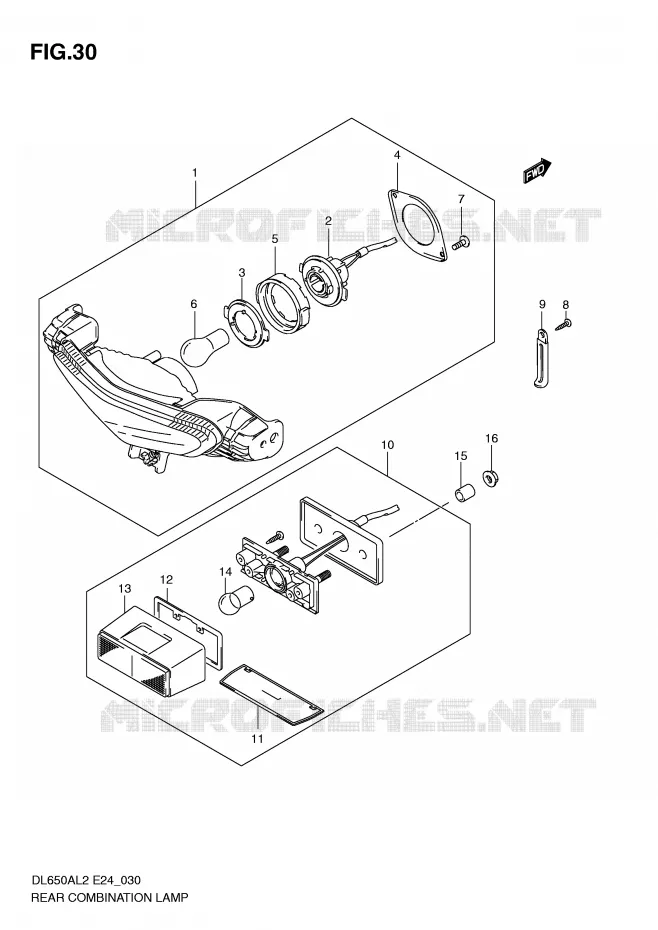

TAIL LIGHT Suzuki MOTO 650 V-STROM 2012 DL650AL2(E24)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
1
LAMP ASSY, REAR COMBINATION

35710-11J00-000   3571011J00000

3571011J00000
Not available
2
SOCKET & CORD

35718-11J00-000   3571811J00000

3571811J00000
Not available
3
PLATE, NO.1
PLATE, NO.1

35716-48B21-000   3571648B21000

3571648B21000

Unit Price

4
PLATE, NO.2
PLATE, NO.2

35736-48B21-000   3573648B21000

3573648B21000

Unit Price

5
CUSHION

35765-42E00-000  

35765-48B21-000
 3576542E00000

Unit Price

6
BULB(12V1.4W G30)<br />BULB (12V,21/5W)
BULB(12V1.4W G30)
BULB (12V, 21/5W)

09471-12083-000   0947112083000

0947112083000

Unit Price

7
SCREW
SCREW

03211-0412A-000   032110412A000

032110412A000

Unit Price

8
SCREW
SCREW

03541-0616A-000   035410616A000

035410616A000

Unit Price

9
CLAMP(L:65)
CLAMP(L:65)

09404-06429-000  

09404-06039-000
 0940406429000

Unit Price

10
LAMP ASSY, LICENSE

35910-41G01-000  

35910-41G02-000
 3591041G01000

Unit Price

11
LENS, LICENSE LAMP
LENS

35912-41G01-000   3591241G01000

3591241G01000

Unit Price

12
GASKET

35913-41G00-000   3591341G00000

3591341G00000

Unit Price

13
COVER, LICENSE LAMP
COVER

35917-41G00-000   3591741G00000

3591741G00000

Unit Price

14
BULB(12V10W)
BULB (12V5W)

09471-12140-000  

0947112140000
Not available
15
SPACER,6.5X10X7
SPACER, 6.5X10X7

09180-06263-000  

09180-06283-000
 0918006263000

Unit Price

16
NUT

09159-06096-000   0915906096000

0915906096000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the TAIL LIGHT of your Suzuki V-STROM 650 of V-STROM. Let us know if you have any questions.

Genuine parts for Suzuki 650 V-STROM 2012
