SPEEDOMETER (DL650AL2 E28)

SPEEDOMETER (DL650AL2 E33) FOR SUZUKI V-STROM 650 2012

HEADLIGHT

Item numbers

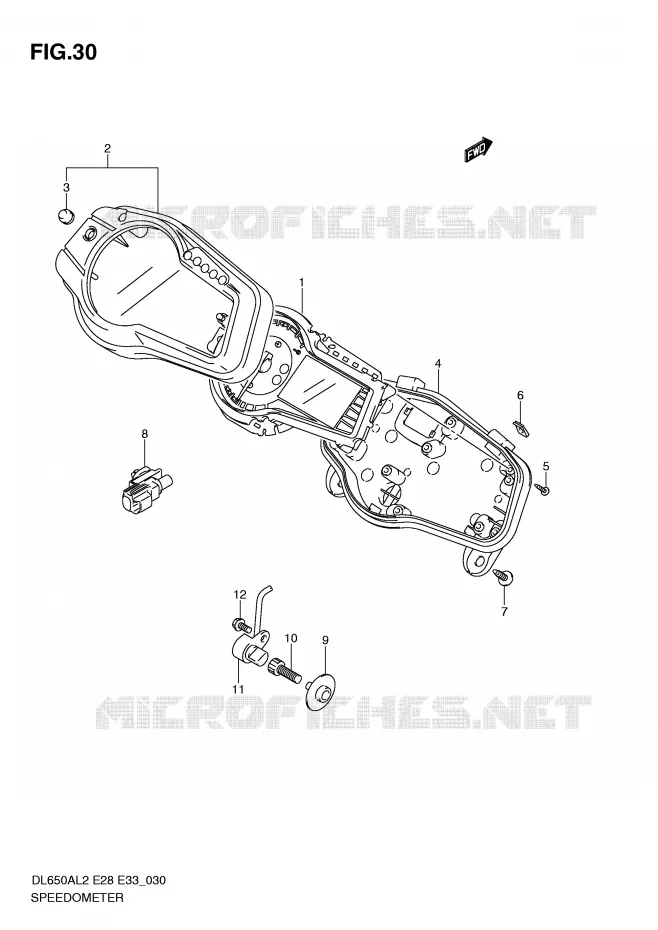

SPEEDOMETER (DL650AL2 E33) Suzuki MOTO 650 V-STROM 2012 DL650AL2(E28)

1

SPEEDOMETER

34120-11J10-000 3412011J10000

Not available

2

CASE ASSY, UPR
CASE, UPPER

34150-11J00-000 3415011J00000

$220,97

Unit Price

3

RUBBER, SWITCH

34124-38G00-000 3412438G00000

$12,97

Unit Price

4

CASE ASSY, LWR
CASE, LOWER

34111-11J00-000 3411111J00000

$104,97

Unit Price

5

SCREW (3X16)

09132-03008-000 0913203008000

$2,97

Unit Price

6

NUT

09148-05052-000 0914805052000

$5,97

Unit Price

7

SCREW

03541-0516A-000 035410516A000

$2,97

Unit Price

8

SENSOR, AIR TEMP
SENSOR, AMBIENT AIR TEMP

95643-58J00-000 9564358J00000

$36,97

Unit Price

9

ROTOR, SPEED

34981-38G01-000 3498138G01000

$19,97

Unit Price

10

BOLT

07130-0825B-000 071300825B000

$5,97

Unit Price

11

SENSOR, SPEED

34990-35F00-000 3499035F00000

$129,97

Unit Price

12

BOLT

07120-0512B-000 071200512B000

$4,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the SPEEDOMETER (DL650AL2 E33) of your Suzuki V-STROM 650 of V-STROM. Let us know if you have any questions.
