OIL PUMP

FUEL PUMP FOR SUZUKI V-STROM 650 2012

OIL COOLER

Item numbers

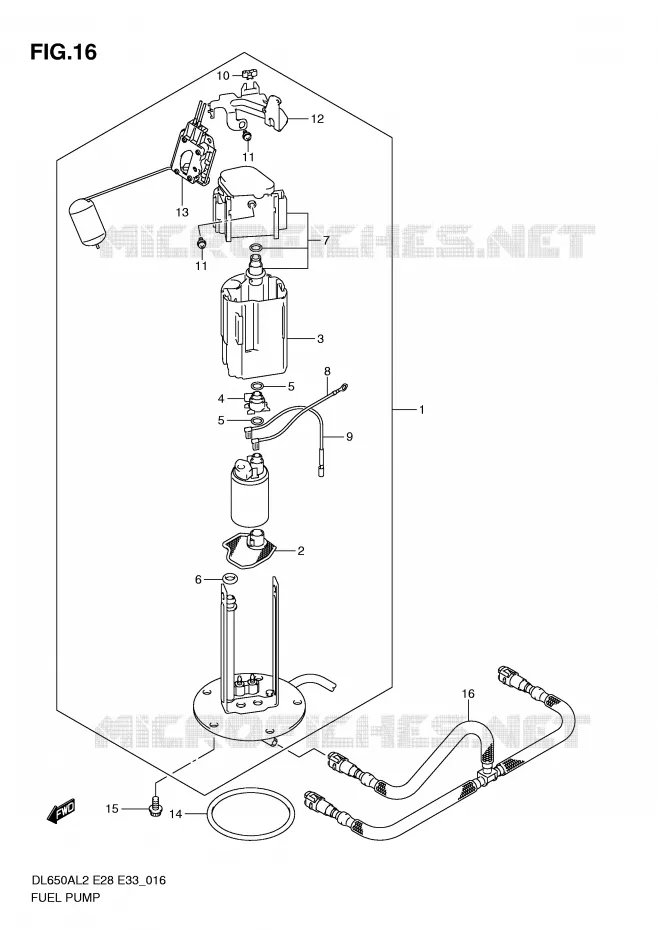

FUEL PUMP Suzuki MOTO 650 V-STROM 2012 DL650AL2(E28)
1
2
3
4
5
5
6
7
8
9
10
11
11
12
13
14
15
16
1
PUMP ASSY, FUEL

15100-11J00-000  

15100-11J03-000
 1510011J00000

Unit Price

2
STRAINER

15420-05H00-000   1542005H00000

1542005H00000

Unit Price

3
CUP
CUP, RESERVOIR

15111-27G00-000   1511127G00000

1511127G00000

Unit Price

4
JOINT

15112-05H00-000   1511205H00000

1511205H00000

Unit Price

5
O RING

15113-05H00-000   1511305H00000

1511305H00000

Unit Price

6
O RING
O RING

15113-35F00-000   1511335F00000

1511335F00000

Unit Price

7
REGULATOR, FUEL
REGULATOR

15610-14J00-000   1561014J00000

1561014J00000

Unit Price

8
WIRE, EARTH
WIPE, EARTH

15114-14J00-000   1511414J00000

1511414J00000

Unit Price

9
WIRE, LEAD

15115-14J00-000   1511514J00000

1511514J00000

Unit Price

10
SADDLE, EDGE

15119-08J00-000   1511908J00000

1511908J00000

Unit Price

11
SCREW

15116-10F00-000   1511610F00000

1511610F00000

Unit Price

12
BRACKET, FUEL GAUGE

15181-11J00-000   1518111J00000

1518111J00000
Not available
13
GAUGE SET, FUEL LEVEL SENDER

34810-11J00-000  

34800-11J03-000
 3481011J00000

Unit Price

14
O RING, FUEL PUMP
O RING, FUEL PUMP

15201-35F00-000   1520135F00000

1520135F00000

Unit Price

15
BOLT

07120-0612A-000  

07120-0612B-000
 071200612A000

Unit Price

16
HOSE, FUEL

15810-11J10-000   1581011J10000

1581011J10000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FUEL PUMP of your Suzuki V-STROM 650 of V-STROM. Let us know if you have any questions.
