THROTTLE BODY (DL650AL2 E28)

THROTTLE BODY (DL650AL2 E33) FOR SUZUKI V-STROM 650 2012

AIR FILTER

Item numbers

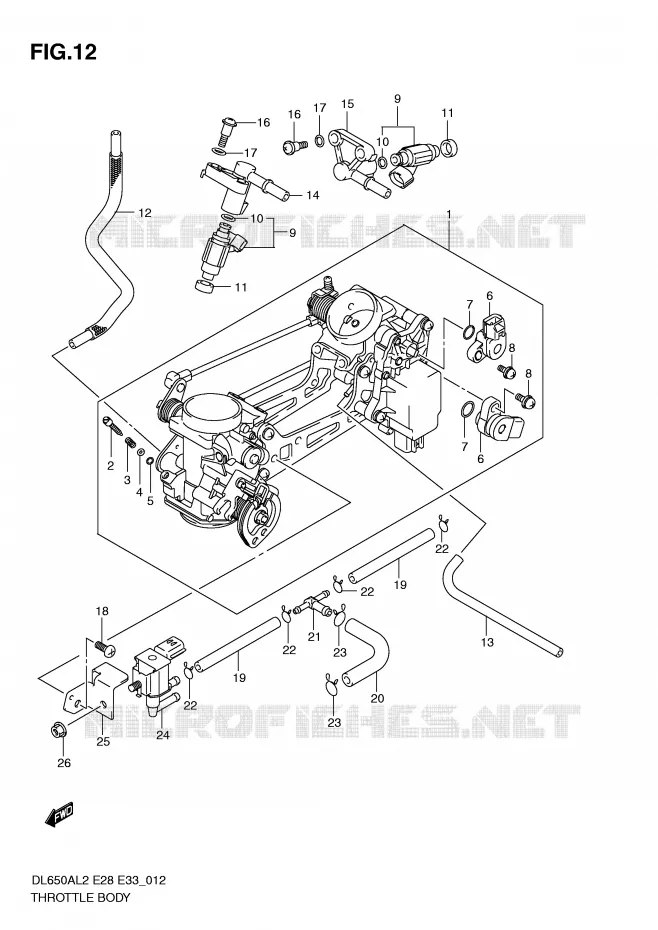

THROTTLE BODY (DL650AL2 E33) Suzuki MOTO 650 V-STROM 2012 DL650AL2(E28)
1
2
3
4
5
6
6
7
7
8
8
9
9
10
10
11
11
12
13
14
15
16
16
17
17
18
19
19
20
21
22
22
22
22
23
23
24
25
26
1
BODY ASSY, THROTTLE
THROTTLE BODY

13405-11J10-000   1340511J10000

1340511J10000

Unit Price

2
SCREW
SCREW

13269-33E00-000   1326933E00000

1326933E00000

Unit Price

3
SPRING,THROTTLE SCREW
SPRING, THROTTLE SCREW

13268-48700-000   1326848700000

1326848700000

Unit Price

4
WASHER
WASHER

13606-47A00-000   1360647A00000

1360647A00000

Unit Price

5
O RING,PILOT AIR SCREW
O RING, PILOT AIR SCREW

13295-29900-000  

13295-29901-000
 1329529900000

Unit Price

6
SENSOR
SENSOR ASSY

13580-27G21-000   1358027G21000

1358027G21000

Unit Price

7
O RING

13575-29G00-000  

13575-29G01-000
 1357529G00000

Unit Price

8
SCREW
SCREW

13605-02F00-000   1360502F00000

1360502F00000

Unit Price

9
INJECTOR ASSY

15710-44H00-000   1571044H00000

1571044H00000

Unit Price

10
O RING

15717-58B00-000   1571758B00000

1571758B00000

Unit Price

11
SEAL

15722-29G00-000   1572229G00000

1572229G00000

Unit Price

12
HOSE

13683-44H00-000  

13683-44H01-000
 1368344H00000

Unit Price

13
HOSE

13683-44H10-000  

13683-44H11-000
 1368344H10000

Unit Price

14
DELIVERY PIPE

15731-11J00-000   1573111J00000

1573111J00000

Unit Price

15
DELIVERY PIPE

15732-11J00-000   1573211J00000

1573211J00000

Unit Price

16
SCREW
SCREW, DELIVERY PIPE

13601-11J00-000   1360111J00000

1360111J00000

Unit Price

17
PACKING

13602-29G00-000  

13602-29G01-000
 1360229G00000

Unit Price

18
SCREW

13602-06128-000   1360206128000

1360206128000

Unit Price

19
HOSE

13681-06G40-000   1368106G40000

1368106G40000

Unit Price

20
HOSE

13683-44H30-000   1368344H30000

1368344H30000

Unit Price

21
NIPPLE

13685-04F10-000   1368504F10000

1368504F10000

Unit Price

22
CLIP

13671-12C00-000  

09401-06101-000
 1367112C00000

Unit Price

23
.CLIP

13671-48B10-000   1367148B10000

1367148B10000
Not available
24
SOLENOID ASSY

18117-52G10-000   1811752G10000

1811752G10000
Not available
25
BRACKET

18119-44H00-000   1811944H00000

1811944H00000

Unit Price

26
NUT

08316-1006A-000   083161006A000

083161006A000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the THROTTLE BODY (DL650AL2 E33) of your Suzuki V-STROM 650 of V-STROM. Let us know if you have any questions.
