Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

FUEL TANK ESS (DL650AUEL7 E21) (FOR YVB,YWW)

FUEL TANK ESS (DL650XAL7 E21) FOR SUZUKI V-STROM 650 2017

FUEL TANK ESS (DL650XAUEL7 E21)

Item numbers

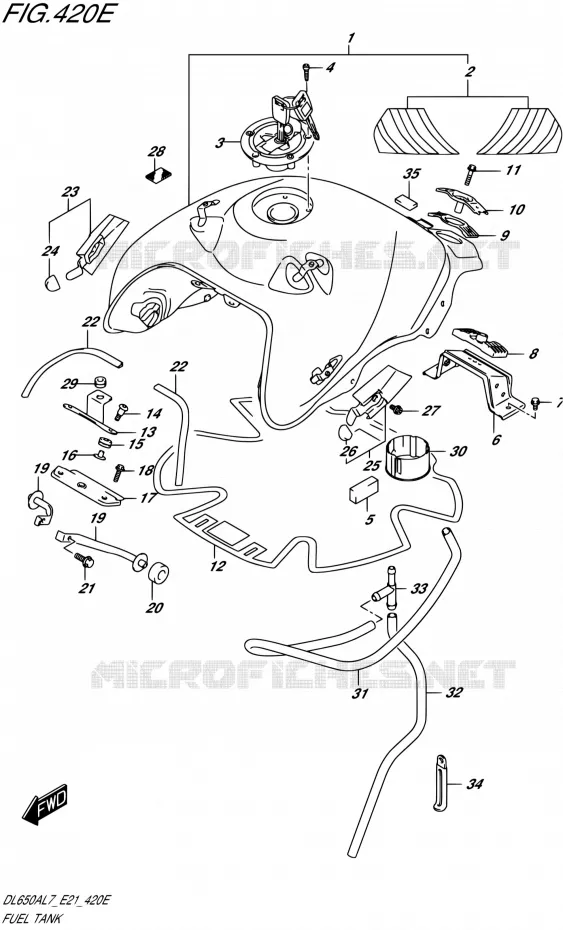

FUEL TANK ESS (DL650XAL7 E21) Suzuki MOTO 650 V-STROM 2017 DL650AL7 E21
1
1
1
2
2
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
19
20
21
22
22
23
24
25
26
27
28
29
30
31
32
33
34
35
1
TANK ASSY, FUEL (YELLOW)

44100-28KB0-YU1   4410028KB0YU1

4410028KB0YU1
Not available
1
TANK ASSY, FUEL (BLACK)

44100-28KB0-YVB   4410028KB0YVB

4410028KB0YVB
Not available
1
TANK ASSY, FUEL (WHITE)

44100-28KB0-YWW   4410028KB0YWW

4410028KB0YWW
Not available
2
TAPE SET, FUEL TANK
.TAPE SET, FUEL TANK (GRAY/BLACK)

68110-28K00-AA3   6811028K00AA3

6811028K00AA3

Unit Price

2
TAPE SET, FUEL TANK
.TAPE SET, FUEL TANK (GRAY/WHITE)

68110-28K00-BGZ   6811028K00BGZ

6811028K00BGZ

Unit Price

2
TAPE SET, FUEL TANK
.TAPE SET, FUEL TANK (YELLOW/BLACK)

68110-28K00-GY8   6811028K00GY8

6811028K00GY8

Unit Price

3
44200-17850
CAP SET, FUEL TANK

44200-17820-000   4420017820000

4420017820000
Not available
4
BOLT, FUEL TANK FILLER CAP

44244-11J00-000   4424411J00000

4424411J00000

Unit Price

5
CUSHION, FUEL TANK SIDE

44541-28K00-000   4454128K00000

4454128K00000

Unit Price

6
BRACKET, FUEL TANK RR
BRACKET, REAR LOWER

44550-06G10-000   4455006G10000

4455006G10000

Unit Price

7
BOLT

01550-0816A-000   015500816A000

015500816A000

Unit Price

8
CUSHION, FUEL TANK RR LWR
CUSHION, LOWER

44545-06G00-000   4454506G00000

4454506G00000

Unit Price

9
CUSHION, FUEL TANK RR UPR
CUSHION, UPPER

44542-06G00-000   4454206G00000

4454206G00000

Unit Price

10
BRACKET, FUEL TANK RR UP
BRACKET, UPPER

44530-06G00-000   4453006G00000

4453006G00000

Unit Price

11
BOLT
BOLT

01550-0835A-000   015500835A000

015500835A000
Not available
12
SHIELD, FUEL TANK CTR
SHIELD, TANK CENTER

44194-11J00-000   4419411J00000

4419411J00000

Unit Price

13
BRACKET, FR COVER
BRACKET, FRONT COVER

44154-11J00-000   4415411J00000

4415411J00000

Unit Price

14
SCREW (6X25)

09139-06192-000   0913906192000

0913906192000

Unit Price

15
CUSHION, FUEL TANK FR

44511-16G00-000  

44511-16G01-000
 4451116G00000

Unit Price

16
SPACER, FUEL TANK FR
WASHER, FUEL TANK FRONT

44512-16G00-000   4451216G00000

4451216G00000

Unit Price

17
BRACKET, FUEL TANK FR
BRACKET, FUEL TANK FRONT

44520-11J00-000   4452011J00000

4452011J00000

Unit Price

18
BOLT
BOLT

01550-0620B-000   015500620B000

015500620B000

Unit Price

19
BRACKET, FR SIDE
BRACKET, FRONT SIDE

44560-11J00-000   4456011J00000

4456011J00000

Unit Price

20
CUSHION, FR SIDE BRKT
CUSHION, FRONT SIDE BRACKET

44542-11J00-000   4454211J00000

4454211J00000

Unit Price

21
BOLT

01550-0612A-000   015500612A000

015500612A000

Unit Price

22
MOLDING, FUEL TANK

68241-11J01-000  

6824111J01000
Not available
23
BRACKET, FUEL TANK COVER RH

44130-28K00-000   4413028K00000

4413028K00000

Unit Price

24
.CUSHION

09329-18001-000   0932918001000

0932918001000

Unit Price

25
BRACKET, FUEL TANK COVER LH

44140-28K00-000   4414028K00000

4414028K00000

Unit Price

26
.CUSHION

09329-18001-000   0932918001000

0932918001000

Unit Price

27
BOLT

07120-0610A-000  

07120-0610B-000
 071200610A000

Unit Price

28
FASTENER, COWLING
FASTENER, FUEL TANK COVER

44572-37H00-000   4457237H00000

4457237H00000

Unit Price

29
CUSHION
CUSHION

09320-06504-000   0932006504000

0932006504000

Unit Price

30
VESSEL, FUEL TANK INNER

44121-28K00-000  

44121-28K01-000
 4412128K00000

Unit Price

31
HOSE, FUEL TANK DRAIN NO.1

44423-28K00-000   4442328K00000

4442328K00000
Not available
32
HOSE, FUEL TANK DRAIN NO.2

44423-11J30-000  

44423-11J31-000
 4442311J30000

Unit Price

33
3 WAY

09367-08005-000   0936708005000

0936708005000

Unit Price

34
CLAMP(L:80)

09404-06433-000  

09404-06036-000
 0940406433000

Unit Price

35
CUSHION(15X27X2)
CUSHION

45516-01H00-000   4551601H00000

4551601H00000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FUEL TANK ESS (DL650XAL7 E21) of your Suzuki V-STROM 650 ABS of V-STROM. Let us know if you have any questions.
