Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

ANTI POLLUTION SYSTEM

CLUTCH FOR SUZUKI V-STROM 650 2017

TRANSMISSION

Item numbers

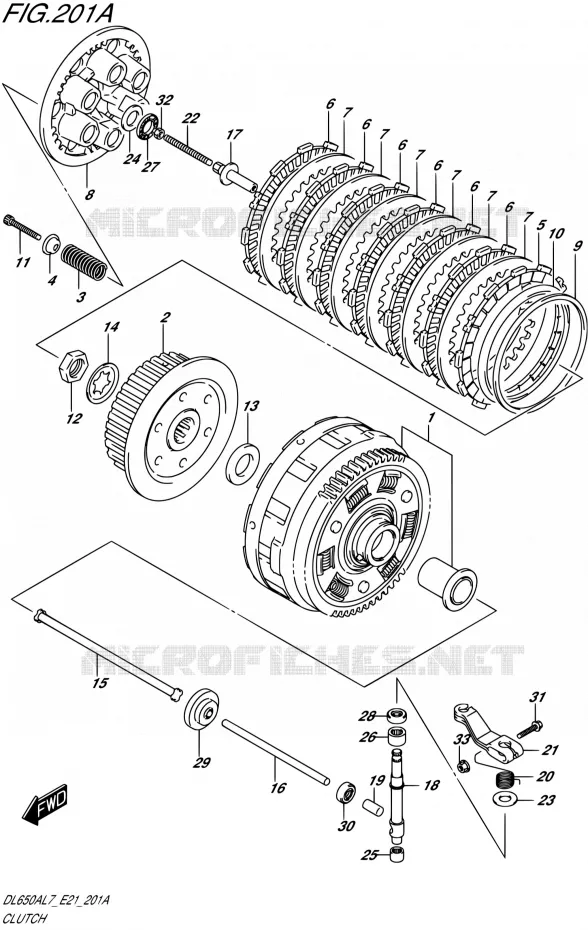

CLUTCH Suzuki MOTO 650 V-STROM 2017 DL650AL7 E21
1
2
3
4
5
6
6
6
6
6
6
7
7
7
7
7
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
1
GEAR ASSY, PRI DRIVEN
GEAR ASSY, PRIMARY DRIVEN (NT:71)

21200-44860-000   2120044860000

2120044860000

Unit Price

2
HUB, CLUTCH SLEEVE
HUB, CLUTCH SLEEVE

21411-44101-000   2141144101000

2141144101000

Unit Price

3
SPRING, CLUTCH

21413-17G10-000   2141317G10000

2141317G10000

Unit Price

4
WASHER<br />WASHER, CLUTCH SPRING
WASHER
WASHER, CLUTCH SPRING

21414-29F00-000   2141429F00000

2141429F00000

Unit Price

5
PLATE, CLUTCH DRIVE NO.2
PLATE, CLUTCH DRIVE NO.2 (T:3.0)

21442-29F10-000   2144229F10000

2144229F10000

Unit Price

6
PLATE, CLUTCH DRIVE
PLATE, CLUTCH DRIVE (T:3.0)

21441-29F30-000   2144129F30000

2144129F30000

Unit Price

7
PLATE, CLUTCH DRIVEN (T:1.6)
PLATE, CLUTCH DRIVEN (T:1.6)

21451-28C31-000   2145128C31000

2145128C31000

Unit Price

8
DISC, CLUTCH PRESSURE
DISC, CLUTCH PRESSURE

21462-14301-000   2146214301000

2146214301000

Unit Price

9
SEAT, WAVE WASHER

21471-17G00-000   2147117G00000

2147117G00000

Unit Price

10
WASHER, CLUTCH PLATE WAVE

21472-17G00-000   2147217G00000

2147217G00000

Unit Price

11
BOLT, CLUTCH SPRING

21482-41G10-000   2148241G10000

2148241G10000

Unit Price

12
DRIVE SPROCKET NUT<br />NUT
DRIVE SPROCKET NUT
NUT

09140-20001-000   0914020001000

0914020001000

Unit Price

13
WASHER (20X36X3)
WASHER (20X36X3)

09160-20067-000   0916020067000

0916020067000

Unit Price

14
WASHER<br />LOCK WASHER
WASHER
LOCK WASHER

09167-20006-000   0916720006000

0916720006000

Unit Price

15
ROD,PUSH RH<br />ROD, CLUTCH PUSH RH
ROD, PUSH RH
ROD, CLUTCH PUSH RH

23110-44111-000   2311044111000

2311044111000

Unit Price

16
ROD, CLUTCH PUSH LH

23111-15501-000   2311115501000

2311115501000

Unit Price

17
PIECE, CLUTCH PUSH

23121-44H00-000   2312144H00000

2312144H00000

Unit Price

18
CAMSHAFT, CLUTCH RELEASE

23122-44H00-000   2312244H00000

2312244H00000

Unit Price

19
CAP, CLUTCH PUSH ROD

23123-41G00-000   2312341G00000

2312341G00000

Unit Price

20
SPRING, CLUTCH RELEASE RETURN

23125-11J00-000   2312511J00000

2312511J00000

Unit Price

21
ARM, CLUTCH RELEASE

23271-44H20-000  

23271-44H21-000
 2327144H20000

Unit Price

22
SCREW, CLUTCH PUSH RO
SCREW (6X73)

09134-06015-000   0913406015000

0913406015000

Unit Price

23
WASHER (10.5X24X1)

09160-10020-000   0916010020000

0916010020000

Unit Price

24
WASHER<br />WASHER (15.5X28X1)
WASHER
WASHER (15.5X28X1)

09160-15045-000   0916015045000

0916015045000

Unit Price

25
BEARING (10X14X10)

09263-10014-000   0926310014000

0926310014000

Unit Price

26
BEARING, CL RLSE
BEARING (12X18X12)

09263-12027-000   0926312027000

0926312027000

Unit Price

27
BEARING (15X28X2)
BEARING (15X28X2)

09263-15003-000   0926315003000

0926315003000

Unit Price

28
OIL SEAL (10X20X6)

09282-10012-000   0928210012000

0928210012000

Unit Price

29
SEAL, CLUTCH PUSH ROD
OIL SEAL (6X34X10.5)

09283-06008-000   0928306008000

0928306008000

Unit Price

30
OIL SEAL<br />OIL SEAL (10X17X5)
OIL SEAL
OIL SEAL (10X17X5)

09285-10004-000   0928510004000

0928510004000

Unit Price

31
BOLT
BOLT

01550-0625A-000   015500625A000

015500625A000

Unit Price

32
NUT
NUT

08310-0006A-000  

083100006A000
Not available
33
NUT

08316-1006A-000   083161006A000

083161006A000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CLUTCH of your Suzuki V-STROM 650 ABS of V-STROM. Let us know if you have any questions.
