OIL COOLER

WATER PUMP FOR SUZUKI V-STROM 650 2017

RADIATOR

Item numbers

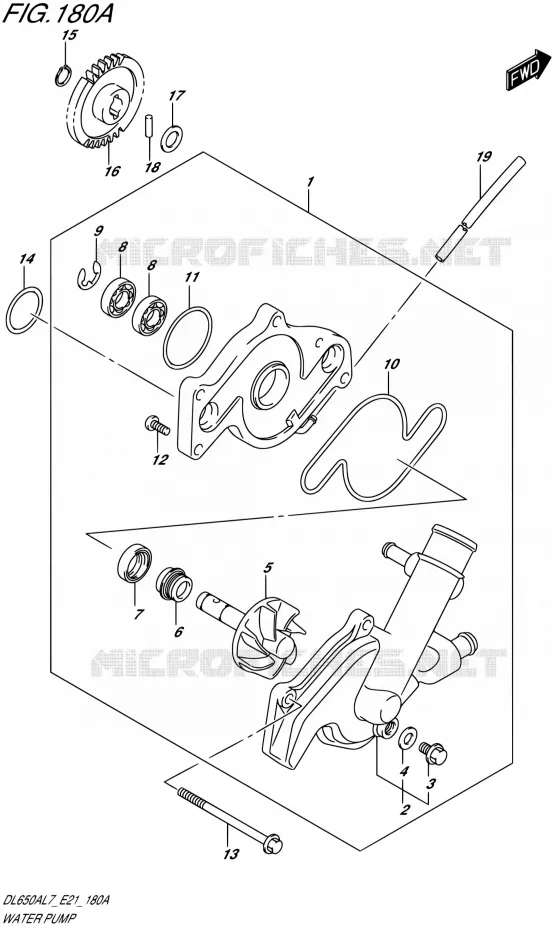

WATER PUMP Suzuki MOTO 650 V-STROM 2017 DL650AL7 E21
1
2
3
4
5
6
7
8
8
9
10
11
12
13
14
15
16
17
18
19
1
PUMP ASSY, WATER

17400-44H00-000  

17400-44H01-000
 1740044H00000

Unit Price

2
.CASE, WATER PUMP

17411-44H00-000   1741144H00000

1741144H00000

Unit Price

3
BOLT,DRAIN<br />..BOLT
BOLT, DRAIN
..BOLT

17415-20920-000   1741520920000

1741520920000

Unit Price

4
..GASKET (8.2X14X1)
..GASKET (8.2X14X1)

09168-08016-000   0916808016000

0916808016000

Unit Price

5
.IMPELLER/SHAFT

17491-19F40-000   1749119F40000

1749119F40000

Unit Price

6
SEAL,MECHANICAL
SEAL, MECHANICAL

17470-02F10-000  

17470-02F11-000
 1747002F10000

Unit Price

7
OIL SEAL
.OIL SEAL (10X21X5)

17461-48G00-000   1746148G00000

1746148G00000

Unit Price

8
.BEARING (10X26X8)
.BEARING (10X26X8)

09262-10014-000   0926210014000

0926210014000

Unit Price

9
.E RING
.E RING

08332-1108A-000   083321108A000

083321108A000

Unit Price

10
.O RING
.O RING

17418-19F00-000   1741819F00000

1741819F00000

Unit Price

11
O RING,WATER PUMP HOLDER<br />.O RING
O RING, WATER PUMP HOLDER
.O RING

17435-33400-000   1743533400000

1743533400000

Unit Price

12
SCREW

02112-0510A-000  

02112-0510B-000
 021120510A000

Unit Price

13
BOLT, ENG SPRKT COV, L
BOLT (6X70)

09103-06225-000   0910306225000

0910306225000

Unit Price

14
OIL PLUG O RING<br />O RING (D:2.4,ID:21.8)
OIL PLUG O RING
O RING (D:2.4, ID:21.8)

09280-22001-000   0928022001000

0928022001000

Unit Price

15
CIRCLIP
CIRCLIP

08331-31109-000   0833131109000

0833131109000

Unit Price

16
GEAR, WATER PUMP DRIVEN
GEAR, WATER PUMP DRIVEN (NT:34)

17461-44H00-000   1746144H00000

1746144H00000

Unit Price

17
SHIM (10X18X0.5)
SHIM (10X18X0.5)

09181-10158-000   0918110158000

0918110158000

Unit Price

18
ROLLER (4X13.8)
ROLLER (4X13.8)

09261-04002-000   0926104002000

0926104002000

Unit Price

19
DISCONTINUE<br />HOSE (3.5X6.5X600)
DISCONTINUE
HOSE (3.5X6.5X600)

09352-35653-600  

0935235653600
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the WATER PUMP of your Suzuki V-STROM 650 ABS of V-STROM. Let us know if you have any questions.
