CARRIER

FOOTREST FOR SUZUKI V-STROM 650 2020

FUEL TANK ESS (DL650A,DL650AUE)

Item numbers

BRACKET, FR FOOTREST, R
BRACKET, FR FOOTREST RH (BLACK)

43510-11J00-YAP 4351011J00YAP

$77,97

Unit Price

BRACKET, FR FOOTREST, L
BRACKET, FR FOOTREST LH (BLACK)

43520-11J00-YAP 4352011J00YAP

$61,97

Unit Price

BOLT
BOLT (8X23)

09106-08150-000 0910608150000

$6,97

Unit Price

FOOTREST ASSY RH

43501-06G01-000 4350106G01000

$92,97

Unit Price

.BOLT, BANK SENSOR

43576-07D01-000 4357607D01000

$12,97

Unit Price

.RUBBER, FOOTREST

43551-06G00-000 4355106G00000

$18,97

Unit Price

.PLATE, FR FOOTREST RUBBER

43552-06G00-000 4355206G00000

$15,97

Unit Price

.SCREW

02142-0516B-000 021420516B000

$3,97

Unit Price

.SCREW

02142-0520B-000 021420520B000

$2,97

Unit Price

FOOTREST ASSY LH

43502-06G01-000 4350206G01000

$92,97

Unit Price

.BOLT, BANK SENSOR

43576-07D01-000 4357607D01000

$12,97

Unit Price

.RUBBER, FOOTREST

43551-06G00-000 4355106G00000

$18,97

Unit Price

.PLATE, FR FOOTREST RUBBER

43552-06G00-000 4355206G00000

$15,97

Unit Price

.SCREW

02142-0516B-000 021420516B000

$3,97

Unit Price

.SCREW

02142-0520B-000 021420520B000

$2,97

Unit Price

PIN
PIN (8X33.2)

09208-08010-000 0920808010000

$5,97

Unit Price

SPRING

09448-18022-000 0944818022000

$6,97

Unit Price

E RING

08332-1106B-000 083321106B000

$2,97

Unit Price

BAR, PILLION FOOTREST RH

43610-34A40-000

43610-34A60-000

$73,97

Unit Price

BAR, PILLION FOOTREST LH

43710-34A40-000

43710-34A60-000

$76,97

Unit Price

RUBBER, PILLION FOOTREST

43612-33G01-000

43612-33G30-000

$13,97

Unit Price

WASHER, FOOTREST RUBBER

43631-34A01-000 4363134A01000

$6,97

Unit Price

BRACKET, PILLION FTRST R(BLACK)
BRACKET, PILLION FTRST RH (BLAC K)

43810-28K00-YAP 4381028K00YAP

$147,97

Unit Price

BRACKET, PILLION FTRST L(BLACK)
BRACKET, PILLION FTRST LH (BLAC K)

43820-28K00-YAP 4382028K00YAP

$164,97

Unit Price

BOLT (8X40)

09106-08074-000 0910608074000

$6,97

Unit Price

PIN
PIN (6X29.5)

09208-06008-000 0920806008000

$4,97

Unit Price

RING

08332-1104A-000

08332-1104B-000

$3,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

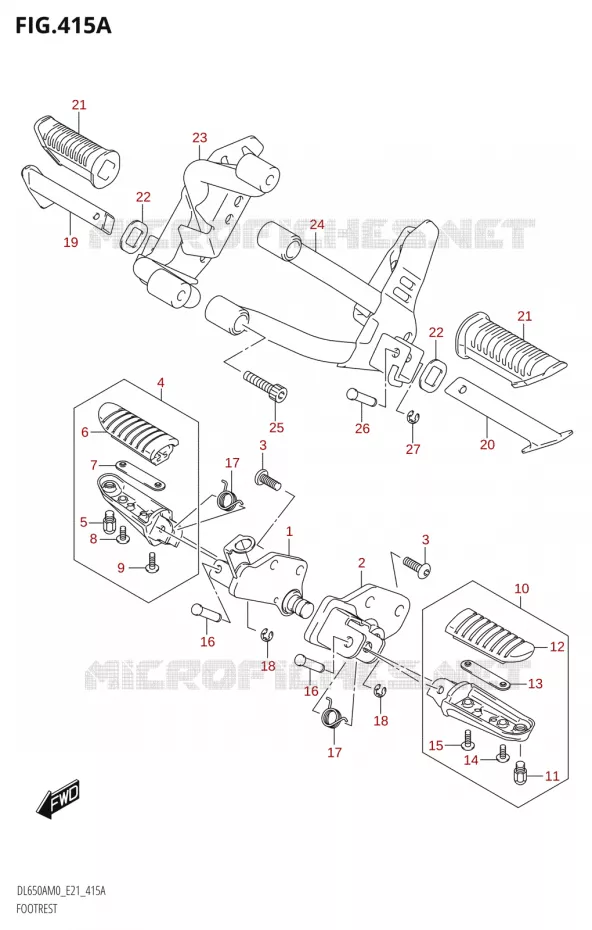

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FOOTREST of your Suzuki V-STROM 650 XT ABS of V-STROM. Let us know if you have any questions.

Select your Suzuki 2020 model

V-STROM 650 XT ABS

Suzuki V-STROM

Displacement: 650 cc
Year: 2020
Model code DL650XA M0 (E21)
Color: Champion Yellow No.2 (YU1) / Glass Sparkle Black (YVB) / Pearl Vigor Blue (YKY)
