HANDLEBAR650XA,DL650XAUE)

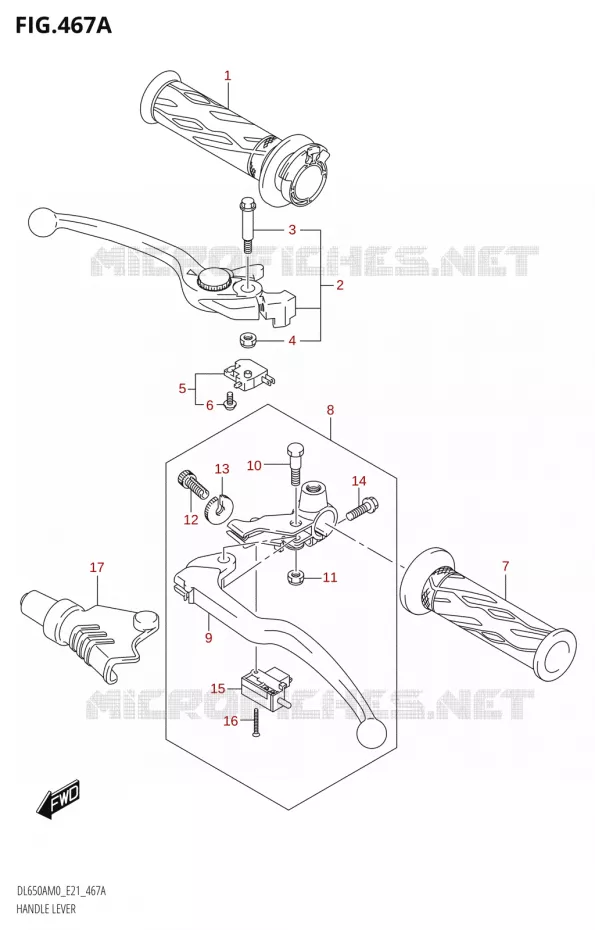

HANDGRIPS - LEVERS L650A,DL650AUE) FOR SUZUKI V-STROM 650 2020

HANDGRIPS - LEVERS L650XA,DL650XAUE)

Item numbers

GRIP, THROTTLE

57110-21H02-000 5711021H02000

$22,97

Unit Price

57300-44G13
LEVER ASSY, FR BRAKE

57300-44G12-000 5730044G12000

Not available

.BOLT, LEVER PIVOT

57431-17H02-000 5743117H02000

$11,97

Unit Price

.NUT

08319-2106A-000 083192106A000

$3,97

Unit Price

SWITCH ASSY, STOP

57460-14J01-000

57460-14J02-000

$38,97

Unit Price

SCREW, WITH WASHER(4X12)
.SCREW

57465-17C00-000 5746517C00000

$2,97

Unit Price

GRIP, L

57211-21H01-000 5721121H01000

$16,97

Unit Price

LEVER ASSY, CLUTCH

57500-25D02-000

57500-25D04-000

$79,97

Unit Price

.LEVER, CLUTCH

57621-40F00-000 5762140F00000

$40,97

Unit Price

BOLT, LEVER PIVOT

57431-45C01-000

57431-21D11-000

$18,97

Unit Price

.NUT

08319-2106A-000 083192106A000

$3,97

Unit Price

ADJUSTER, WIRE

57441-45C00-000

57441-45C01-000

$18,97

Unit Price

NUT, LOCK

57442-45C00-000

57442-45C01-000

$17,97

Unit Price

.BOLT

01547-0620B-000 015470620B000

$4,97

Unit Price

.SWITCH, CLUTCH

57560-05A00-000 5756005A00000

$16,97

Unit Price

.SCREW, CLUTCH SWITCH

57562-41G01-000

Not available

COVER, CLUTCH LEVER

57661-33E00-000

57661-33E01-000

$16,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the HANDGRIPS - LEVERS L650A,DL650AUE) of your Suzuki V-STROM 650 XT ABS of V-STROM. Let us know if you have any questions.

Select your Suzuki 2020 model

V-STROM 650 XT ABS

Suzuki V-STROM

Displacement: 650 cc
Year: 2020
Model code DL650XA M0 (E21)
Color: Champion Yellow No.2 (YU1) / Glass Sparkle Black (YVB) / Pearl Vigor Blue (YKY)

Europe
