CYLINDER

CASING FOR SUZUKI V-STROM 650 2020

CASING

Item numbers

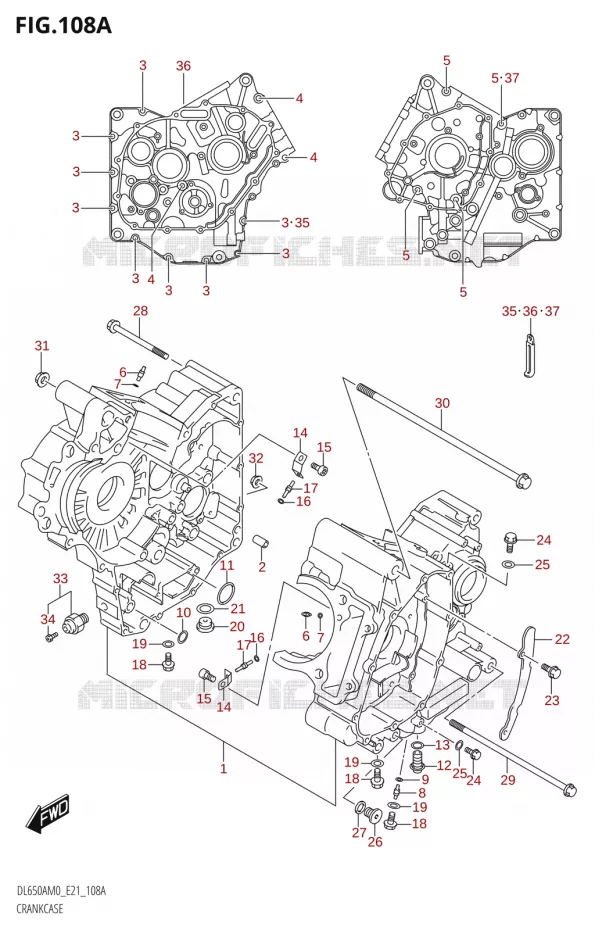

CASING Suzuki MOTO 650 V-STROM 2020 DL650XA M0 (E21)
1
1
2
3
3
3
3
3
3
3
3
3
4
4
4
5
5
5
5
6
6
6
7
7
8
9
10
11
12
13
14
14
15
15
16
17
18
18
18
19
19
19
20
21
22
23
24
24
25
25
26
27
28
29
30
31
32
33
34
35
35
36
36
37
37
1
CRANKCASE SET

11301-27871-000   1130127871000

1130127871000

Unit Price

2
PIN, CRANKCASE
.PIN (8.4X11X20)

09206-11007-000   0920611007000

0920611007000

Unit Price

3
BOLT
BOLT

01547-0650A-000   015470650A000

015470650A000

Unit Price

4
BOLT

07120-0855A-000   071200855A000

071200855A000

Unit Price

5
BOLT
BOLT

07120-0880A-000   071200880A000

071200880A000

Unit Price

6
JET,OIL<br />JET AIR (#14)
JET, OIL
JET AIR (#14)

09493-28010-000   0949328010000

0949328010000

Unit Price

7
O RING<br />O-RING (D:1.2,ID:4)
O RING
O-RING (D:1.2, ID:4)

09280-04004-000   0928004004000

0928004004000

Unit Price

8
JET, OIL GALLERY(18)
JET, OIL GALY (#18)

09493-36004-000   0949336004000

0949336004000

Unit Price

9
O RING<br />O-RING (D:1.2,ID:4)
O RING
O-RING (D:1.2, ID:4)

09280-04004-000   0928004004000

0928004004000

Unit Price

10
O RING(D:1.9, ID:12.6)

09280-13007-000  

09280-12009-000
 0928013007000

Unit Price

11
O-RING (D:2.4,ID:15.8)
O-RING (D:2.4, ID:15.8)

09280-15007-000   0928015007000

0928015007000
Not available
12
PLUG, OIL DRAIN
PLUG (12X20)

09247-12011-000   0924712011000

0924712011000

Unit Price

13
GASKET OIL GALLERY<br />GASKET (12.1X16.2X3.7)
GASKET OIL GALLERY
GASKET (12.1X16.2X3.7)

09168-12002-000   0916812002000

0916812002000
Not available
14
PLATE, PISTON COOLING JET

16438-19F00-000   1643819F00000

1643819F00000

Unit Price

15
BOLT (6X12)
BOLT (6X12)

09106-06075-000   0910606075000

0910606075000

Unit Price

16
JET(13)<br />JET (#130)
JET(13)
JET (#130)

09493-26007-000   0949326007000

0949326007000

Unit Price

17
BOLT
BOLT

01550-0812A-000  

01550-0812B-000
 015500812A000

Unit Price

18
GASKET OIL GALLERY<br />GASKET (12.1X16.2X3.7)
GASKET OIL GALLERY
GASKET (12.1X16.2X3.7)

09168-12002-000   0916812002000

0916812002000
Not available
19
GASKET (8.2X14X1)
GASKET (8.2X14X1)

09168-08016-000   0916808016000

0916808016000

Unit Price

20
PLUG,OIL<br />PLUG (16X8)
PLUG, OIL
PLUG (16X8)

09248-16012-000   0924816012000

0924816012000

Unit Price

21
GASKET OIL GALLERY<br />GASKET (16X22X2)
GASKET OIL GALLERY
GASKET (16X22X2)

09168-16002-000   0916816002000

0916816002000

Unit Price

22
PLATE,OIL SEPARATOR
PLATE, OIL SEPARATOR

11323-19F00-000   1132319F00000

1132319F00000

Unit Price

23
BOLT

01547-0612A-000   015470612A000

015470612A000

Unit Price

24
BOLT

01547-0610A-000   015470610A000

015470610A000

Unit Price

25
GASKET<br />GASKET (5.8X13X1.2)
GASKET
GASKET (5.8X13X1.2)

09168-06023-000   0916806023000

0916806023000
Not available
26
PLUG
PLUG (12X10)

09247-12006-000   0924712006000

0924712006000

Unit Price

27
WASHER<br />GASKET (12X17X1)
WASHER
GASKET (12X17X1)

09168-12017-000   0916812017000

0916812017000

Unit Price

28
BOLT (10X225)
BOLT (10X225)

09103-10205-000   0910310205000

0910310205000

Unit Price

29
BOLT (10X275)

09103-10347-000   0910310347000

0910310347000

Unit Price

30
BOLT (12X310)
BOLT (12X310)

09103-12054-000   0910312054000

0910312054000

Unit Price

31
NUT, REARCUSHION
NUT

09159-12056-000   0915912056000

0915912056000

Unit Price

32
NUT
NUT

08319-3110A-000   083193110A000

083193110A000

Unit Price

33
SWITCH ASSY,OIL PRESSURE
SWITCH ASSY, OIL PRESSURE

37820-33D10-000  

37820-33D11-000
 3782033D10000

Unit Price

34
.BOLT, OIL PRESSURE SWITCH

37822-33D00-000   3782233D00000

3782233D00000

Unit Price

35
CLAMP(L:65)
CLAMP(L:65)

09404-06429-000  

09404-06039-000
 0940406429000

Unit Price

36
CLAMP(L:80)

09404-06433-000  

09404-06036-000
 0940406433000

Unit Price

37
CLAMP, L:97
CLAMP (L:80)

09404-08419-000  

0940408419000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CASING of your Suzuki V-STROM 650 XT ABS of V-STROM. Let us know if you have any questions.
