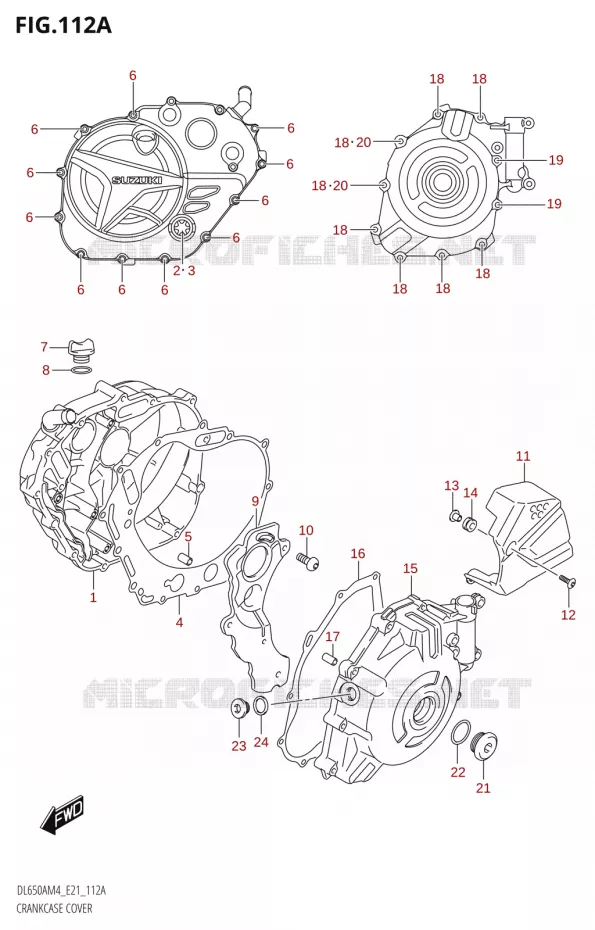

CRANKCASE COVER FOR SUZUKI V-STROM 650 2024

CRANKSHAFT

COVER COMP, CLUTCH
COVER, CLUTCH

11340-18K10-000 1134018K10000

$382,97

Unit Price

.LENS, OIL LEVEL CHECK

11971-33210-000 1197133210000

$17,97

Unit Price

.CIRCLIP

08331-4130A-000 083314130A000

$3,97

Unit Price

GASKET, CLUTCH COVER

11482-44H00-000 1148244H00000

$17,97

Unit Price

PIN
PIN(8.5X18X2.3)

04211-09149-000 0421109149000

$2,97

Unit Price

BOLT, CLUTCH COVER(L3
BOLT(L:35)

09103-06530-000 0910306530000

$3,97

Unit Price

PLUG, ENGINE OIL FILLER
PLUG, OIL FILLER

11971-25D00-000 1197125D00000

$6,97

Unit Price

O-RING, OIL FILLER
O-RING(D:3.1, ID:16.8)

09280-17003-000 0928017003000

$2,97

Unit Price

SEPARATOR, OIL

11343-44H01-000 1134344H01000

$46,97

Unit Price

BOLT(6X12)

09106-06098-000 0910606098000

$4,97

Unit Price

COVER, ENG SPROCKET

11361-28K00-000 1136128K00000

$51,97

Unit Price

SCREW(6X20)

09139-06028-000 0913906028000

$5,97

Unit Price

WASHER
WASHER(6.3X17X1.6)

09169-06062-000 0916906062000

$4,97

Unit Price

CUSHION
CUSHION(9X18X9.5)

09320-09016-000 0932009016000

$3,97

Unit Price

COVER, MAGNETO

11351-44H20-000 1135144H20000

$333,97

Unit Price

GASKET, MAGNETO COVER

11483-19F00-000 1148319F00000

$14,97

Unit Price

PIN
PIN(8.5X18X2.3)

04211-09149-000 0421109149000

$2,97

Unit Price

BOLT, CLUTCH COVER(L3
BOLT(L:35)

09103-06530-000 0910306530000

$3,97

Unit Price

BOLT, MAGNETO COVER(L65)
BOLT(L:65)

09103-06536-000 0910306536000

$4,97

Unit Price

GASKET
GASKET(5.8X13X1.2)

09168-06023-000 0916806023000

Not available

PLUG
PLUG(26X9)

09259-26011-000 0925926011000

$18,97

Unit Price

O-RING, CRK HOLE PLUG
O-RING(D:3.1, ID:22.7)

09280-22008-000 0928022008000

$3,97

Unit Price

PLUG, OIL
PLUG(16X8)

09248-16012-000 0924816012000

$8,97

Unit Price

GASKET OIL GALLERY
GASKET(16X22X2)

09168-16002-000 0916816002000

$2,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CRANKCASE COVER of your Suzuki V-STROM 650 ABS of V-STROM. Let us know if you have any questions.
