REAR CALIPER

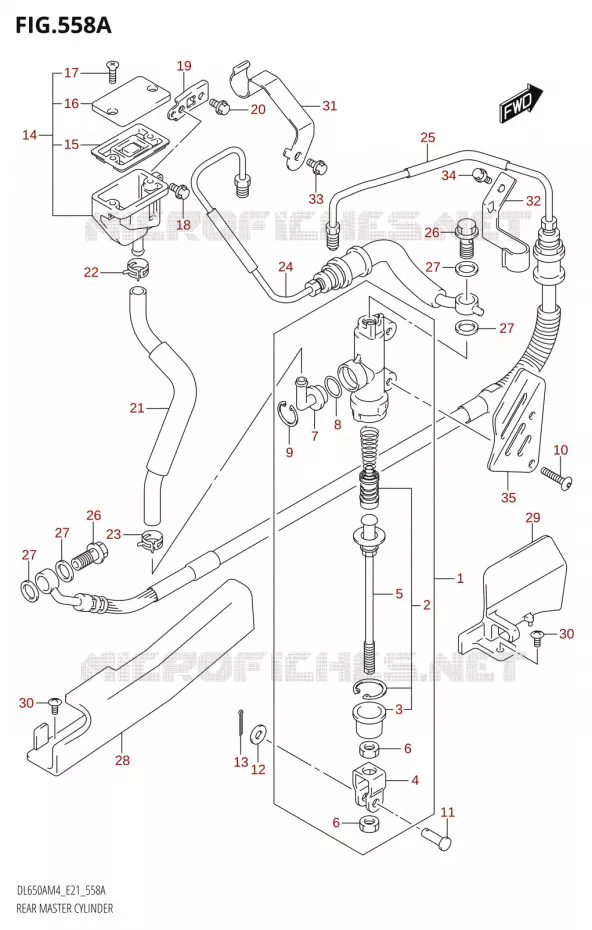

REAR BRAKE MASTER CYLINDER FOR SUZUKI V-STROM 650 2024

CYLINDER ASSY, REAR M
CYLINDER ASSY, RR MASTER

69600-06G00-000 6960006G00000

$273,97

Unit Price

.PISTON/CUP SET

69600-34821-000 6960034821000

$87,97

Unit Price

BOOT

69691-04A00-000

69691-00A00-000

$8,97

Unit Price

.YOKE

69692-19A00-000 6969219A00000

$21,97

Unit Price

.ROD, PUSH

69670-03G00-000 6967003G00000

$39,97

Unit Price

.NUT

69693-05A00-000 6969305A00000

$3,97

Unit Price

.CONNECTOR

69672-00B20-000 6967200B20000

$12,97

Unit Price

O RING CONECTOR
.O-RING

69686-34200-000 6968634200000

$6,97

Unit Price

.CIRCLIP

69674-00B20-000 6967400B20000

$6,97

Unit Price

SCREW(6X25)

09139-06192-000 0913906192000

$5,97

Unit Price

09200-06037-000

09200-06068-000

$7,97

Unit Price

WASHER

08322-0106A-000 083220106A000

$3,97

Unit Price

04111-2015A-000 041112015A000

$2,97

Unit Price

TANK ASSY, RR RESERVOIR

69740-01D02-000 6974001D02000

$102,97

Unit Price

.DIAPHRAGM

59667-04700-000 5966704700000

$11,97

Unit Price

.CAP

59669-05D00-000 5966905D00000

$19,97

Unit Price

.SCREW

69689-04A00-000 6968904A00000

$2,97

Unit Price

BOLT

01547-0612A-000 015470612A000

$3,97

Unit Price

BRACKET COMP, RR RESERVOIR TANK
BRACKET, RR RESERVOIR TANK

69750-28K00-000 6975028K00000

$21,97

Unit Price

BOLT

01547-0612A-000 015470612A000

$3,97

Unit Price

HOSE COMP, RR RESERVOIR TANK
HOSE, RR RESERVOIR TANK

69730-28K00-000 6973028K00000

$33,97

Unit Price

CLIP
CLIP(ID:13.2)

09401-13417-000 0940113417000

$3,97

Unit Price

CLIP
CLIP(ID:12)

09401-12404-000 0940112404000

$3,97

Unit Price

HOSE ASSY, RR BK MASTER TO HU

69200-28K01-000 6920028K01000

$87,97

Unit Price

HOSE ASSY, RR BRAKE NO.2

69400-11J01-000 6940011J01000

$134,97

Unit Price

BOLT, BRAKE FLUID
UNION(10X1.25X22)

09360-10062-000 0936010062000

$11,97

Unit Price

WASHER
WASHER(10X15X1.5)

09161-10009-000 0916110009000

$3,97

Unit Price

61196-27G30
GUIDE, RR BRAKE HOSE

61196-27G20-000 6119627G20000

Not available

GUIDE, RR BRAKE HOSE FR

61196-06G10-000 6119606G10000

$18,97

Unit Price

SCREW

02142-0510A-000 021420510A000

$2,97

Unit Price

CLAMP, RR BRAKE HOSE

69260-11J00-000 6926011J00000

$17,97

Unit Price

CLAMP, RR BRAKE HOSE NO.2

69266-27G00-000 6926627G00000

$21,97

Unit Price

BOLT

01547-0610B-000 015470610B000

$4,97

Unit Price

BOLT

01547-0612A-000 015470612A000

$3,97

Unit Price

COVER, RR MASTER CYLINDER

69641-06G00-000 6964106G00000

$49,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the REAR BRAKE MASTER CYLINDER of your Suzuki V-STROM 650 ABS of V-STROM. Let us know if you have any questions.
