CLUTCH

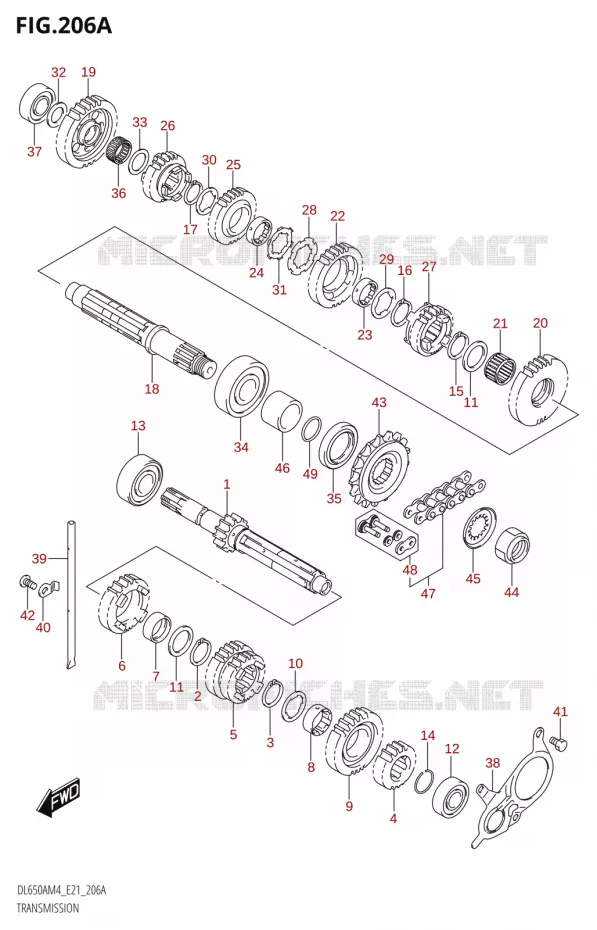

TRANSMISSION FOR SUZUKI V-STROM 650 2024

GEAR SHIFTING ASSY

SHAFT, COUNTER
SHAFT, COUNTER(NT:13)

24120-27G00-000 2412027G00000

$250,97

Unit Price

CIRCLIP

24127-19F00-000 2412719F00000

$4,97

Unit Price

CIRCLIP

24127-19F00-000 2412719F00000

$4,97

Unit Price

GEAR, 2ND DRIVE
GEAR, 2ND DRIVE(NT:18)

24221-20F10-000 2422120F10000

$88,97

Unit Price

GEAR, 3RD & 4TH DRIVE
GEAR, 3RD & 4TH DRIVE(NT:21/24)

24231-20F10-000 2423120F10000

$152,97

Unit Price

GEAR, 5TH DRIVE(NT:26)

24251-20F02-000 2425120F02000

$130,97

Unit Price

BUSH

24252-19F00-000 2425219F00000

$17,97

Unit Price

BUSH, 6TH DRIVE GEAR

24252-38A10-000 2425238A10000

$17,97

Unit Price

GEAR, 6TH DRIVE(NT:27)

24261-20F00-000 2426120F00000

$109,97

Unit Price

WASHER, LOCK
WASHER, LOCK(25.1X33X1.0)

09167-25021-000 0916725021000

$5,97

Unit Price

WASHER, 5TH DRIVE GEA
SHIM(25X34X1)

09181-25167-000 0918125167000

$5,97

Unit Price

BEARING(17X40X12)

09262-17046-000 0926217046000

$45,97

Unit Price

BEARING(20X52X15)

09262-20145-000 0926220145000

$38,97

Unit Price

CIRCLIP

09380-25012-000 0938025012000

$3,97

Unit Price

CIRCLIP

24127-19F00-000 2412719F00000

$4,97

Unit Price

CIRCLIP

24127-19F00-000 2412719F00000

$4,97

Unit Price

CIRCLIP

24127-19F00-000 2412719F00000

$4,97

Unit Price

SHAFT COMP, DRIVE
SHAFT, DRIVE

24130-44H40-000 2413044H40000

$186,97

Unit Price

GEAR, 1ST DRIVEN
GEAR, 1ST DRIVEN(NT:32)

24311-44H00-000 2431144H00000

$134,97

Unit Price

GEAR, 2ND DRIVEN
GEAR, 2ND DRIVEN(NT:32)

24321-44H20-000 2432144H20000

$95,97

Unit Price

BEARING(25X29X13)

09263-25069-000 0926325069000

$28,97

Unit Price

GEAR, 3RD DRIVEN
GEAR, 3RD DRIVEN(NT:29)

24331-44H00-000 2433144H00000

$95,97

Unit Price

BUSH, DRIVEN GEAR

24332-24510-000 2433224510000

$17,97

Unit Price

BUSH, DRIVEN GEAR

24332-24510-000 2433224510000

$17,97

Unit Price

GEAR, 4TH DRIVEN
GEAR, 4TH DRIVEN(NT:27)

24341-44H00-000 2434144H00000

$134,97

Unit Price

GEAR, 5TH DRIVEN
GEAR, 5TH DRIVEN(NT:25)

24351-44H10-000

Not available

GEAR, 6TH DRIVEN
GEAR, 6TH DRIVEN(NT:23)

24361-44H00-000 2436144H00000

$106,97

Unit Price

LOCK WASHER
WASHER, LOCK(25.1X41X1.5)

09167-25013-000 0916725013000

$4,97

Unit Price

WASHER, LOCK
WASHER, LOCK(25.1X33X1.0)

09167-25021-000 0916725021000

$5,97

Unit Price

WASHER, LOCK
WASHER, LOCK(25.1X33X1.0)

09167-25021-000 0916725021000

$5,97

Unit Price

LOCK WASHER
WASHER, LOCK(25.1X37X2.5)

09169-25001-000 0916925001000

$3,97

Unit Price

WASHER
SHIM(17X28X1.0)

09181-17195-000 0918117195000

$4,97

Unit Price

SHIM
SHIM(20X30X1)

09181-20195-000 0918120195000

$3,97

Unit Price

BEARING, DRIVE SHAFT, L
BEARING(25X62X17)

09262-25190-000 0926225190000

$80,97

Unit Price

SEAL, OIL(36X50X6)

09283-36011-000 0928336011000

$36,97

Unit Price

BEARING, 1ST DRIVEN GEAR
BEARING(20X24X12.8)

09263-20115-000 0926320115000

$26,97

Unit Price

BEARING

08113-6203A-000 081136203A000

$17,97

Unit Price

RETAINER, DRIVE SHAFT OIL SEAL

24751-19F10-000 2475119F10000

$16,97

Unit Price

GUIDE, T/M OIL

24881-12C30-000 2488112C30000

$12,97

Unit Price

RETAINER, TRANSMISSION OIL
RETAINER, T/M OIL GUIDE

24885-12C10-000 2488512C10000

$3,97

Unit Price

BOLT

01500-0612A-000 015000612A000

$3,97

Unit Price

SCREW

02112-0612A-000

02112-0612B-000

$2,97

Unit Price

SPROCKET COMP, ENGINE
SPROCKET, ENGINE(NT:15)

27510-20F21-000 2751020F21000

$65,97

Unit Price

NUT

09159-20004-000 0915920004000

$26,97

Unit Price

WASHER, LOCK

09167-25028-000 0916725028000

$5,97

Unit Price

SPACER, ENGINE SPROCKET

27531-19F10-000 2753119F10000

$34,97

Unit Price

CHAIN, DRIVE
CHAIN, DRIVE(RK525SMOZ8)

27600-06G40-120 2760006G40120

$305,97

Unit Price

.JOINT SET, DRIVE CHAIN

27620-06G40-000 2762006G40000

$20,97

Unit Price

O-RING
O-RING(D:2.4, ID:23.7)

09280-24010-000 0928024010000

$9,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the TRANSMISSION of your Suzuki V-STROM 650 ABS of V-STROM. Let us know if you have any questions.
