Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

INDICATORS (E22, E25)

TAIL LIGHT FOR SUZUKI GSX-S 750 1982

TAIL LIGHT (E2, E4, E15, E21)

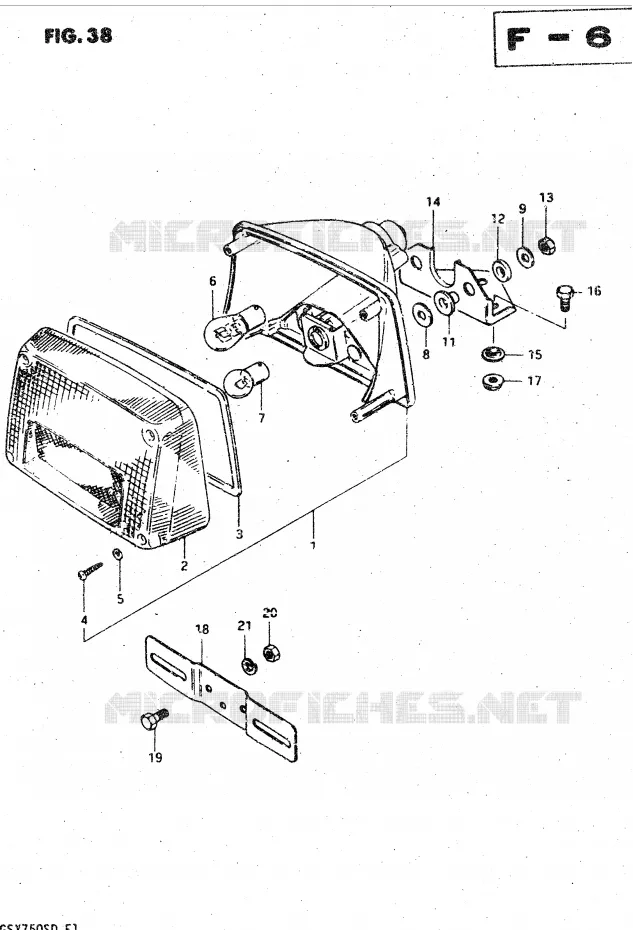

TAIL LIGHT Suzuki MOTO 750 GSX-S 1982 GSX750SZ(E1)
1
DISCONTINUE
LAMP ASSY, TAIL

35710-49330-000   3571049330000

3571049330000
Not available
2
LENS

35712-49031-000   3571249031000

3571249031000
Not available
3
DISCONTINUE<br />GASKET
DISCONTINUE
GASKET

35713-49030-000   3571349030000

3571349030000
Not available
4
SCREW

35627-49030-000  

03511-04163-000
 3562749030000

Unit Price

5
GASKET
GASKET

35627-43010-000   3562743010000

3562743010000

Unit Price

6
BULB(14V1.4W,T5)<br />BULB (12V,32/3CP)
BULB(14V1.4W, T5)
BULB (12V, 32/3CP)

09471-12035-000   0947112035000

0947112035000

Unit Price

7
.BULB (12V, 8W)

09471-12037-000   0947112037000

0947112037000
Not available
8
WASHER(6.5X18X1.6)

09160-06007-000  

09160-06084-000
 0916006007000

Unit Price

9
WASHER(6.5X22X1.6)
WASHER(6.5X22X1.6)

09160-06012-000  

09160-06054-000
 0916006012000

Unit Price

10
FENDER FRONT SPACER<br />SPACER
FENDER FRONT SPACER
SPACER

09180-06038-000   0918006038000

0918006038000

Unit Price

11
CUSHION

09320-09003-000   0932009003000

0932009003000

Unit Price

12
FRM RH COVER CUSHION
CUSHION

09320-09004-000   0932009004000

0932009004000

Unit Price

13
NUT

08316-26068-000  

08316-10067-000
 0831626068000

Unit Price

14
DISCONTINUE<br />BRACKET, TAIL LAMP
DISCONTINUE
BRACKET, TAIL LAMP

35726-33200-000   3572633200000

3572633200000
Not available
15
WASHER

09169-06028-000  

09169-06031-000
 0916906028000

Unit Price

16
BOLT, FENDER REAR

01107-06168-000   0110706168000

0110706168000
Not available
17
NUT

08316-26068-000  

08316-10067-000
 0831626068000

Unit Price

18
PLATE,RR LICENSE<br />BRACKET, LICENSE PLATE
PLATE, RR LICENSE
BRACKET, LICENSE PLATE

35927-44110-000   3592744110000

3592744110000

Unit Price

19
BOLT, REAR

01517-06168-000   0151706168000

0151706168000
Not available
20
NUT FIG.42 (H-4) : E16, E18, E22,

08310-11068-000   0831011068000

0831011068000
Not available
21
LOCK WASHER

08321-21068-000   0832121068000

0832121068000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the TAIL LIGHT of your Suzuki KATANA 750 of GSX-S. Let us know if you have any questions.

Genuine parts for Suzuki 750 GSX-S 1982

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 750 GSX-S 1982

Select your Suzuki 1982 model

750 GSX-S 1982 GSX750SZ(E1)

KATANA 750

Suzuki GSX-S

Displacement: 750 cc
Year: 1982
Model code GSX750SZ(E1)
