TIMING (MODEL D)

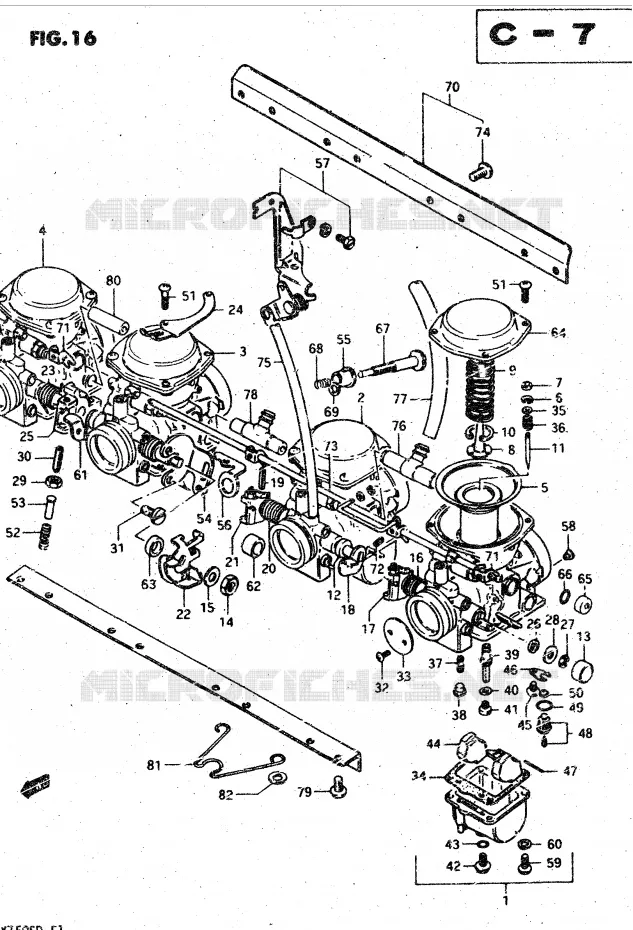

CARBURETOR (MODEL Z) FOR SUZUKI GSX-S 750 1982

CARBURETOR (MODEL D)

CARBURETOR, LH

13201-45500-000 1320145500000

Not available

CARBURETOR, LH

13201-45520-000 1320145520000

Not available

CARBURETOR, ML

13202-45500-000 1320245500000

Not available

CARBURETOR, ML

13202-45520-000 1320245520000

Not available

CARBURETOR, MR

13203-45500-000 1320345500000

Not available

CARBURETOR, MR

13203-45520-000 1320345520000

Not available

CARBURETOR, RH

13204-45500-000 1320445500000

Not available

CARBURETOR, RH

13204-45520-000 1320445520000

Not available

DIAPHRAGM

13500-45520-000 1350045520000

Not available

DISCONTINUE
DIAPHRAGM

13500-49250-000

Not available

CLIP, NEEDLE
E RING

13394-31210-000 1339431210000

$6,97

Unit Price

RING

13387-44030-000 1338744030000

$9,97

Unit Price

DISCONTINUE
GUIDE HOLDER

13389-44030-000 1338944030000

Not available

DISCONTINUE
SPRING

13503-44080-000 1350344080000

Not available

DISCONTINUE
CLIP

13581-44030-000 1358144030000

Not available

DISCONTINUE
NEEDLE, JET (5057-2)

13383-45120-000 1338345120000

Not available

GASKET

13557-49200-000 1355749200000

Not available

CAP

13578-47070-000 1357847070000

$9,97

Unit Price

NUT

08310-22088-000

08310-00087-000

$2,97

Unit Price

WASHER

13606-47070-000 1360647070000

Not available

SPRING

13573-47070-000 1357347070000

Not available

SHAFT

13550-49200-000 1355049200000

Not available

SHAFT

13550-45500-000 1355045500000

Not available

13563-47070-000 1356347070000

Not available

..SPRING

13573-45110-000 1357345110000

Not available

LEVER

13553-47070-000 1355347070000

Not available

LEVER

13555-47070-000 1355547070000

Not available

SPRING

13573-47080-000 1357347080000

Not available

BRACKET

13621-49160-000 1362149160000

Not available

SHAFT

13550-49200-000 1355049200000

Not available

SEAL, THRO SHAFT

13651-51010-000

13651-51011-000

$6,97

Unit Price

E RING

13617-44080-000 1361744080000

$5,97

Unit Price

GASKET, THROTTLE SHAFT
GASKET

13557-47070-000 1355747070000

$7,97

Unit Price

NUT

13607-47070-000 1360747070000

$5,97

Unit Price

SCREW

13605-47080-000 1360547080000

$10,97

Unit Price

SCREW

13605-45420-000

02112-05103-000

$2,97

Unit Price

SCREW

13604-44080-000 1360444080000

$5,97

Unit Price

VALVE, THROTTLE (135)

13551-49200-000 1355149200000

Not available

GASKET, FLOAT CHAMBER

13251-44080-000

13251-44081-H17

$19,97

Unit Price

WASHER

13382-44030-000 1338244030000

$5,97

Unit Price

SPRING

13388-44030-000 1338844030000

$11,97

Unit Price

JET, PILOT (42.5)

09492-42005-000 0949242005000

Not available

PLUG, NEEDLE JET
PLUG

13357-44080-000 1335744080000

$9,97

Unit Price

JET, NEEDLE (X-2)

09494-00339-000 0949400339000

Not available

WASHER

13332-44080-000

13382-03110-000

$4,97

Unit Price

JET, MAIN
JET, MAIN (112.5)

09491-22015-000 0949122015000

$22,97

Unit Price

PLUG, DRAIN
SCREW

13247-44080-000 1324744080000

$17,97

Unit Price

GASKET
O RING

13246-44080-000 1324644080000

$5,97

Unit Price

FLOAT

13250-44080-000 1325044080000

$51,97

Unit Price

SCREW

02112-04068-000

02112-0406B-000

$2,97

Unit Price

PLATE, NEEDLE VALVE FITING
PLATE

13373-11400-000 1337311400000

$22,97

Unit Price

PIN, FLOAT
PIN

13254-92311-000 1325492311000

$2,97

Unit Price

.NEEDLE VALVE ASSY

13370-11400-000 1337011400000

Not available

O RING, NEEDLE VALVE SEAT

13374-44080-000

13374-35C00-000

$7,97

Unit Price

.FILTER

13376-65010-000 1337665010000

Not available

SCREW

02112-05168-000

02112-05167-000

$2,97

Unit Price

SPRING

13268-44010-000 1326844010000

Not available

13575-47070-000 1357547070000

Not available

BRACKET

13627-45110-000 1362745110000

Not available

DISCONTINUE
BUSH

13276-31210-000 1327631210000

Not available

BRACKET

13627-44090-000 1362744090000

Not available

BRACKET

13624-45500-000 1362445500000

Not available

JET, AIR
JET, PILOT AIR (155)

09493-30005-000 0949330005000

$31,97

Unit Price

SCREW

02112-05168-000

02112-05167-000

$2,97

Unit Price

WASHER, LOCK

08321-21058-000

08321-0105A-000

$2,97

Unit Price

.SHAFT

13550-49230-000 1355049230000

Not available

RING

13574-45110-000 1357445110000

Not available

DISCONTINUE
RING

13574-45120-000 1357445120000

Not available

COVER, DIAPHRAGM

13502-49250-000 1350249250000

Not available

CAP, STARTER VALVE
CAP, STARTER

13682-31210-000 1368231210000

$6,97

Unit Price

O RING

13278-47090-000

13278-47091-000

$2,97

Unit Price

DISCONTINUE
ADJUSTER

13267-47070-000 1326747070000

Not available

SPRING

13271-93011-000 1327193011000

$6,97

Unit Price

WASHER

13432-47090-000 1343247090000

$4,97

Unit Price

FLANGE ASSY

13210-45500-000 1321045500000

Not available

LEVER

13422-44080-000 1342244080000

Not available

DISCONTINUE
SCREW

13605-47070-000 1360547070000

Not available

SHAFT

13410-45400-000 1341045400000

Not available

.SCREW

13605-47090-000 1360547090000

Not available

.HOSE (4.5X8X200)

13683-45110-000 1368345110000

Not available

NIPPLE

13685-47070-000 1368547070000

$43,97

Unit Price

09354-65113-600
HOSE (6.5X10.5X400)

13683-49160-000

Not available

.HOSE (4.5X8X200)

13683-45110-000 1368345110000

Not available

.SCREW

02112-06168-000 0211206168000

Not available

NIPPLE

13685-49210-000 1368549210000

$30,97

Unit Price

CLIP

13615-49220-000 1361549220000

Not available

WASHER

13615-49200-000 1361549200000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CARBURETOR (MODEL Z) of your Suzuki KATANA 750 of GSX-S. Let us know if you have any questions.
