FRONT FORK (MODEL Z) FIG59 (H-4) : MODEL D

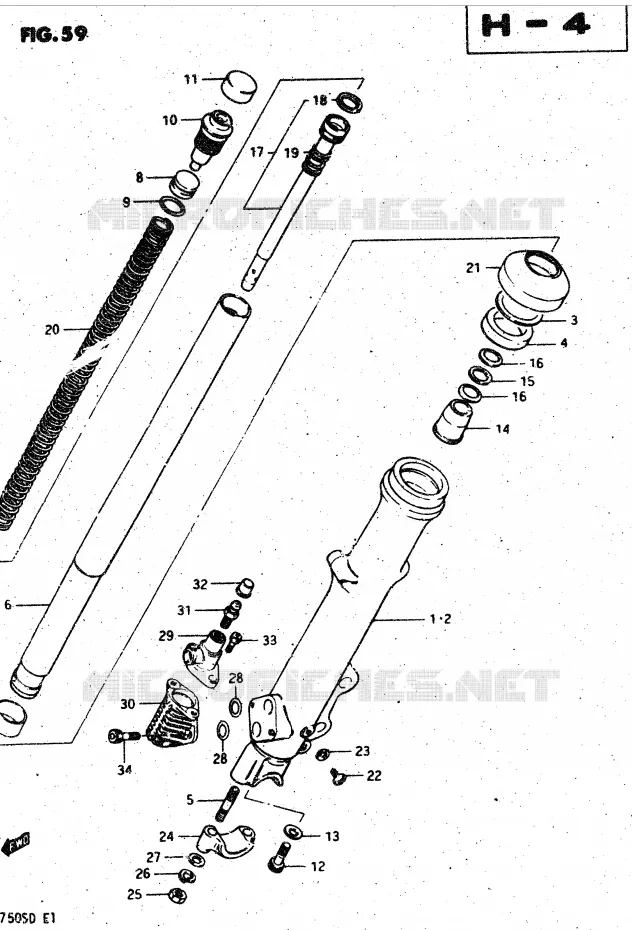

FRONT FORK (MODEL D) FOR SUZUKI GSX-S 750 1982

STEERING COLUMN (MODEL Z) FIG61 (H-7) : MODEL D

DISCONTINUED

51130-49330-15T 511304933015T

Not available

DISCONTINUED

51140-49330-15T 511404933015T

Not available

RING, STOPPER
SNAP RING

51156-40301-000 5115640301000

$7,97

Unit Price

SEAL, OIL

51153-49001-000

51153-08C20-000

$31,97

Unit Price

BOLT, STUD

01411-08308-000

01411-0830A-000

$3,97

Unit Price

DISCONTINUE
INNER TUBE

51110-49300-000 5111049300000

Not available

PISTON

51121-49200-000 5112149200000

$29,97

Unit Price

DISCONTINUE
PISTON, FREE

51172-45110-000 5117245110000

Not available

O RING(D:3.5, ID:21.8)

51117-45110-000

09280-22011-000

$12,97

Unit Price

DISCONTINUE
CAP

51351-49200-000 5135149200000

Not available

CAP, RUBBER

51189-49300-000 5118949300000

$16,97

Unit Price

BOLT, FORK CYLINDER(10X25)
BOLT

51147-16510-000 5114716510000

$6,97

Unit Price

GASKET

51148-41310-000 5114841310000

$3,97

Unit Price

DISCONTINUE
PIECE OIL LOCK

51195-45420-000 5119545420000

Not available

WASHER

51123-45420-000 5112345420000

$6,97

Unit Price

SPRING, LEAF
LEAF SPRING

51125-45420-000 5112545420000

$6,97

Unit Price

CYLINDER

51146-49300-000 5114649300000

Not available

RING, PISTON
PISTON RING

51196-49000-000 5119649000000

$16,97

Unit Price

DISCONTINUE
SPRING, REACTION

51177-49000-000 5117749000000

Not available

SPRING

51171-49310-000 5117149310000

Not available

SEAL, DUST
DUST SEAL

51173-49002-000 5117349002000

$31,97

Unit Price

.SCREW

02112-04088-000 0211204088000

Not available

GASKET, DRAIN, PLUG
GASKET

51183-03010-000 5118303010000

Not available

.HOLDER, AXLE

51132-49500-291 5113249500291

Not available

.NUT

08310-11085-000 0831011085000

Not available

8 MM LOCK WASHER

08321-21088-000

08321-01087-000

$2,97

Unit Price

WASHER

08322-21088-000

08322-01087-000

$2,97

Unit Price

O-RING

51799-44130-000

09280-12012-000

$6,97

Unit Price

DISCONTINUE
MODULATOR PLANGER SET

51790-11330-000 5179011330000

Not available

DISCONTINUE
MODULATOR VALVE SET

51770-45920-000 5177045920000

Not available

DISCONTINUE
BREATHER, AIR

51778-44130-000 5177844130000

Not available

.CAP

51779-44130-000 5177944130000

Not available

BOLT

51753-11330-000

07130-05127-000

$4,97

Unit Price

BOLT

51796-44130-000

07130-06167-000

$4,97

Unit Price

DAMPER ASSY, RH

51103-49330-000 5110349330000

Not available

DAMPER ASSY, LH

51104-49330-000 5110449330000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRONT FORK (MODEL D) of your Suzuki KATANA 750 of GSX-S. Let us know if you have any questions.
