FOOTREST FOR SUZUKI GSX-S 750 2017

REAR FAIRINGS (FOR YVZ)

Item numbers

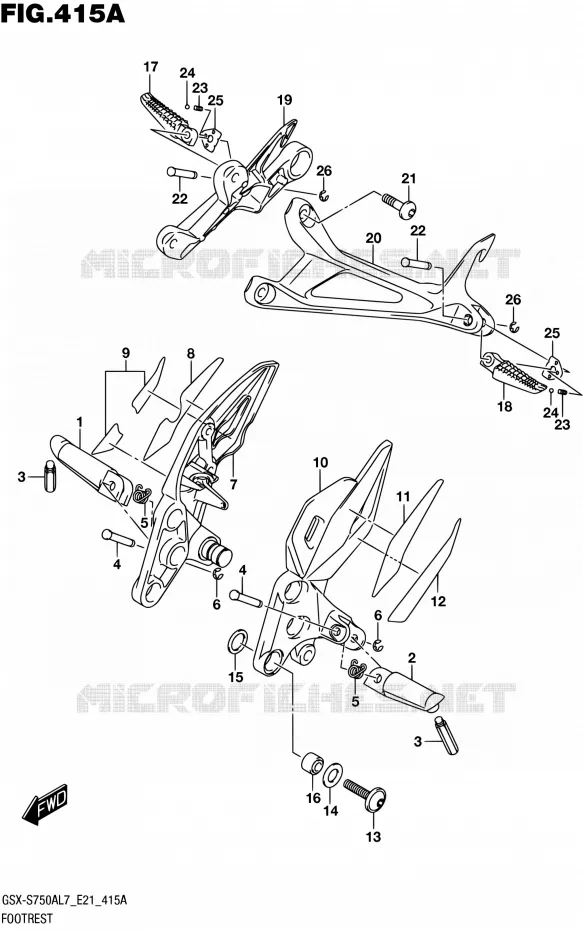

FOOTREST Suzuki MOTO 750 GSX-S 2017 GSX-S750AL7 E21
1
2
3
3
4
4
5
5
6
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
22
23
23
24
24
25
25
26
26
1
BAR, FRONT FOOTREST, R
BAR, FRONT FOOTREST RH

43516-35F20-000   4351635F20000

4351635F20000

Unit Price

2
BAR, FRONT FOOTREST, L
BAR, FRONT FOOTREST LH

43526-35F20-000   4352635F20000

4352635F20000

Unit Price

3
BOLT, BANK SENSOR

43576-48B60-000   4357648B60000

4357648B60000

Unit Price

4
PIN

09208-08019-000   0920808019000

0920808019000

Unit Price

5
SPRING, FRONT FOOTREST

43581-13K00-000   4358113K00000

4358113K00000

Unit Price

6
E RING
E RING

08332-1106A-000  

08332-1106B-000
 083321106A000

Unit Price

7
BRACKET COMP, FR FOOTREST, R
BRACKET, FRONT FOOTREST RH

43510-08J10-000   4351008J10000

4351008J10000

Unit Price

8
TAPE, FR FOOTREST NO.1, R
TAPE, FR FOOTREST NO.1 RH

43571-13K00-000   4357113K00000

4357113K00000

Unit Price

9
TAPE, FR FOOTREST NO.2, R
TAPE, FR FOOTREST NO.2 RH

43573-13K00-000   4357313K00000

4357313K00000

Unit Price

10
BRACKET, FR FOOTREST, L
BRACKET, FRONT FOOTREST LH

43521-08J10-000   4352108J10000

4352108J10000

Unit Price

11
TAPE, FR FOOTREST NO.1, L
TAPE, FR FOOTREST NO.1 LH

43572-13K00-000   4357213K00000

4357213K00000

Unit Price

12
TAPE, FR FOOTREST NO.2, L
TAPE, FR FOOTREST NO.2 LH

43574-13K00-000   4357413K00000

4357413K00000

Unit Price

13
BOLT (8X30)
BOLT (8X30)

09106-08147-000   0910608147000

0910608147000

Unit Price

14
WASHER (13.7X24X2)

09161-13004-000   0916113004000

0916113004000

Unit Price

15
WASHER (17.2X24X2.2)
WASHER (17.2X24X2.2)

09161-17002-000   0916117002000

0916117002000

Unit Price

16
BUSH (8.4X20X16)

09319-08045-000   0931908045000

0931908045000

Unit Price

17
BAR, PILLION FOOTREST, R
BAR, PILLION FOOTREST RH

43611-37H30-000   4361137H30000

4361137H30000

Unit Price

18
BAR, PILLION FOOTREST, L
BAR, PILLION FOOTREST LH

43621-37H30-000   4362137H30000

4362137H30000

Unit Price

19
BRACKET, PILLION FOOTREST, R(BLA
BRACKET, PILLION FOOTREST RH (BLACK)

43811-08J00-YAP   4381108J00YAP

4381108J00YAP

Unit Price

20
BRACKET, PILLION FOOTREST, L(BLA
BRACKET, PILLION FOOTREST LH (BLACK)

43821-08J00-YAP   4382108J00YAP

4382108J00YAP

Unit Price

21
BOLT (8X23)

09106-08186-000   0910608186000

0910608186000

Unit Price

22
PIN

09208-08020-000   0920808020000

0920808020000

Unit Price

23
SPRING,STAND GRIP<br />SPRING
SPRING, STAND GRIP
SPRING

09440-05003-000   0944005003000

0944005003000

Unit Price

24
STEEL BALL 7/32<br />BALL
STEEL BALL 7/32
BALL

06111-07004-000   0611107004000

0611107004000

Unit Price

25
PLATE, PILLION FOOTREST
PLATE, PILLION FOOTREST RH

43816-01H20-000   4381601H20000

4381601H20000

Unit Price

26
E RING
E RING

08332-1106A-000  

08332-1106B-000
 083321106A000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FOOTREST of your Suzuki GSX-S 750 of GSX-S. Let us know if you have any questions.
