Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

RADIATOR

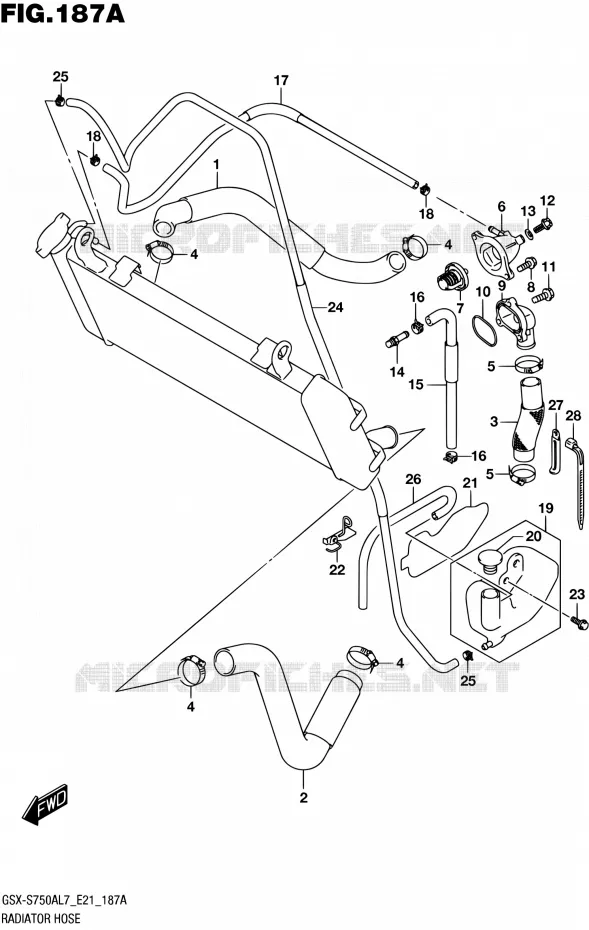

RADIATOR HOSE FOR SUZUKI GSX-S 750 2017

ANTI POLLUTION SYSTEM

Item numbers
RADIATOR HOSE Suzuki MOTO 750 GSX-S 2017 GSX-S750AL7 E21
1
2
3
4
4
4
4
5
5
6
7
8
9
10
11
12
13
14
15
16
16
17
18
18
19
20
21
22
23
24
25
25
26
27
28
1
HOSE, RADIATOR INLET

17851-08J00-000   1785108J00000

1785108J00000

Unit Price

2
HOSE, RADIATOR OUTLET

17852-08J20-000   1785208J20000

1785208J20000

Unit Price

3
HOSE, CYLINDER INLET

17853-35F10-000   1785335F10000

1785335F10000

Unit Price

4
CLAMP, WATER HOSE
CLAMP

09402-35501-000   0940235501000

0940235501000

Unit Price

5
CLAMP, WATER HOSE
CLAMP

09402-35501-000   0940235501000

0940235501000

Unit Price

6
COVER, THERMOSTAT
COVER, THERMOSTAT

17661-35F00-000   1766135F00000

1766135F00000

Unit Price

7
THERMOSTAT, WATER 82 DEG
THERMOSTAT, WATER

17670-76G00-000   1767076G00000

1767076G00000

Unit Price

8
BOLT

01547-0620A-000   015470620A000

015470620A000

Unit Price

9
CONNECTOR, CYLINDER WATER INLET
CONNECTOR, CYLINDER WATER

17861-08J00-000   1786108J00000

1786108J00000

Unit Price

10
O RING,CYL WATER CONNECTOR<br />O RING
O RING, CYL WATER CONNECTOR
O RING

17863-33E00-000   1786333E00000

1786333E00000

Unit Price

11
BOLT

01547-0620A-000   015470620A000

015470620A000

Unit Price

12
UNION BOLT,AIR VENT<br />BOLT, THERMOSTAT COVER AIR
UNION BOLT, AIR VENT
BOLT, THERMOSTAT COVER AIR

17568-50F00-000   1756850F00000

1756850F00000

Unit Price

13
GASKET(6.4X11.5X0.84)<br />GASKET (6.4X11.5X0.8)
GASKET(6.4X11.5X0.84)
GASKET (6.4X11.5X0.8)

09168-06026-000   0916806026000

0916806026000

Unit Price

14
UNION
UNION

09362-09011-000   0936209011000

0936209011000

Unit Price

15
HOSE, WATER BYPASS

17854-08J00-000   1785408J00000

1785408J00000

Unit Price

16
CLIP<br />CLAMP
CLIP
CLAMP

09401-12414-000   0940112414000

0940112414000

Unit Price

17
HOSE, WATER AIR BLEED

17855-13K00-000   1785513K00000

1785513K00000

Unit Price

18
(CA)CLIP<br />CLIP
(CA)CLIP
CLIP

09401-10409-000   0940110409000

0940110409000

Unit Price

19
TANK ASSY, RESERVOIR

17910-08J00-000   1791008J00000

1791008J00000

Unit Price

20
CAP,RESERVOIR TANK<br />.CAP
CAP, RESERVOIR TANK
.CAP

17931-02FA0-000   1793102FA0000

1793102FA0000

Unit Price

21
SHIELD, RSVR TANK HEAT
SHIELD, RESERVIOR TANK HEAT

17912-08J00-000   1791208J00000

1791208J00000

Unit Price

22
PLATE, RESERVOIR TANK CAP

17914-08J00-000   1791408J00000

1791408J00000

Unit Price

23
BOLT
BOLT (6X12)

09111-06085-000   0911106085000

0911106085000

Unit Price

24
HOSE, RESERVOIR TANK INLET

17981-13K10-000   1798113K10000

1798113K10000

Unit Price

25
CLIP
CLIP

09401-08411-000  

0940108411000
Not available
26
HOSE,RESERVOIR TANK INLET<br />HOSE, OVER FLOW
HOSE, RESERVOIR TANK INLET
HOSE, OVER FLOW

17981-19F00-000   1798119F00000

1798119F00000

Unit Price

27
CLAMP(L:65)
CLAMP(L:65)

09404-06429-000  

09404-06039-000
 0940406429000

Unit Price

28
CLAMP

09407-19401-000  

09407-22403-000
 0940719401000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the RADIATOR HOSE of your Suzuki GSX-S 750 of GSX-S. Let us know if you have any questions.

Genuine parts for Suzuki 750 GSX-S 2017

BODY/FRAME ELECTRICAL ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 750 GSX-S 2017

Select your Suzuki 2017 model

Color : Pearl Mira Red (YVZ)
750 GSX-S 2017 GSX-S750AL7 E21
Color : Pearl Mira Red (YVZ)
750 GSX-S 2017 GSX-S750AL7 E21
Color : Glass Sparkle Black (KEL)
750 GSX-S 2017 GSX-S750AL7 E21
Color : Metallic Mat Black No. 2 (YKV)

GSX-S 750

Suzuki GSX-S

Displacement: 750 cc
Year: 2017
Model code GSX-S750AL7 E21
Color: Pearl Mira Red (YVZ) / Metallic Triton Blue/Glass Sparkle Black (KEL) / Metallic Mat Black No. 2 (YKV)
