Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

OIL COOLER

WATER PUMP FOR SUZUKI GSX-S 750 2017

RADIATOR

Item numbers

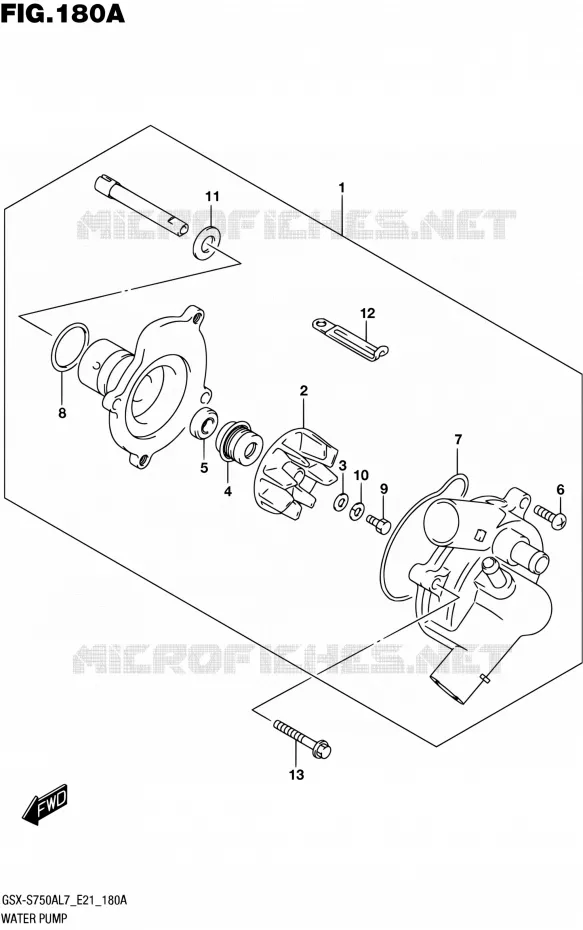

WATER PUMP Suzuki MOTO 750 GSX-S 2017 GSX-S750AL7 E21
1
2
3
4
5
6
7
8
9
10
11
12
13
1
PUMP ASSY, WATER

17400-35F30-000  

17400-35F31-000
 1740035F30000

Unit Price

2
.IMPELLER
.IMPELLER

17491-17E01-000   1749117E01000

1749117E01000

Unit Price

3
WASHER<br />.GASKET (6X15X2.2)
WASHER
.GASKET (6X15X2.2)

09168-06025-000   0916806025000

0916806025000

Unit Price

4
SEAL,MECHANICAL
SEAL, MECHANICAL

17470-02F10-000  

17470-02F11-000
 1747002F10000

Unit Price

5
.OIL SEAL

17461-48G00-000   1746148G00000

1746148G00000

Unit Price

6
.SCREW
.SCREW

02112-0616A-000   021120616A000

021120616A000

Unit Price

7
O RING
O RING

17418-33400-000  

17418-33401-000
 1741833400000

Unit Price

8
O RING,WATER PUMP HOLDER<br />.O RING
O RING, WATER PUMP HOLDER
.O RING

17435-33400-000   1743533400000

1743533400000

Unit Price

9
BOLT,WATER PUMP<br />.BOLT (6X13)
BOLT, WATER PUMP
.BOLT (6X13)

09100-06099-000   0910006099000

0910006099000

Unit Price

10
ENG OIL CASE WA **S1<br />.WASHER
ENG OIL CASE WA **S1
.WASHER

09164-06006-000   0916406006000

0916406006000

Unit Price

11
.WASHER

17432-07G00-000   1743207G00000

1743207G00000

Unit Price

12
CLAMP(L:65)
CLAMP(L:65)

09404-06429-000  

09404-06039-000
 0940406429000

Unit Price

13
BOLT

01550-0635A-000   015500635A000

015500635A000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the WATER PUMP of your Suzuki GSX-S 750 of GSX-S. Let us know if you have any questions.

Genuine parts for Suzuki 750 GSX-S 2017

BODY/FRAME ELECTRICAL ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 750 GSX-S 2017

Select your Suzuki 2017 model

Color : Pearl Mira Red (YVZ)
750 GSX-S 2017 GSX-S750AL7 E21
Color : Pearl Mira Red (YVZ)
750 GSX-S 2017 GSX-S750AL7 E21
Color : Glass Sparkle Black (KEL)
750 GSX-S 2017 GSX-S750AL7 E21
Color : Metallic Mat Black No. 2 (YKV)

GSX-S 750

Suzuki GSX-S

Displacement: 750 cc
Year: 2017
Model code GSX-S750AL7 E21
Color: Pearl Mira Red (YVZ) / Metallic Triton Blue/Glass Sparkle Black (KEL) / Metallic Mat Black No. 2 (YKV)
