CASING

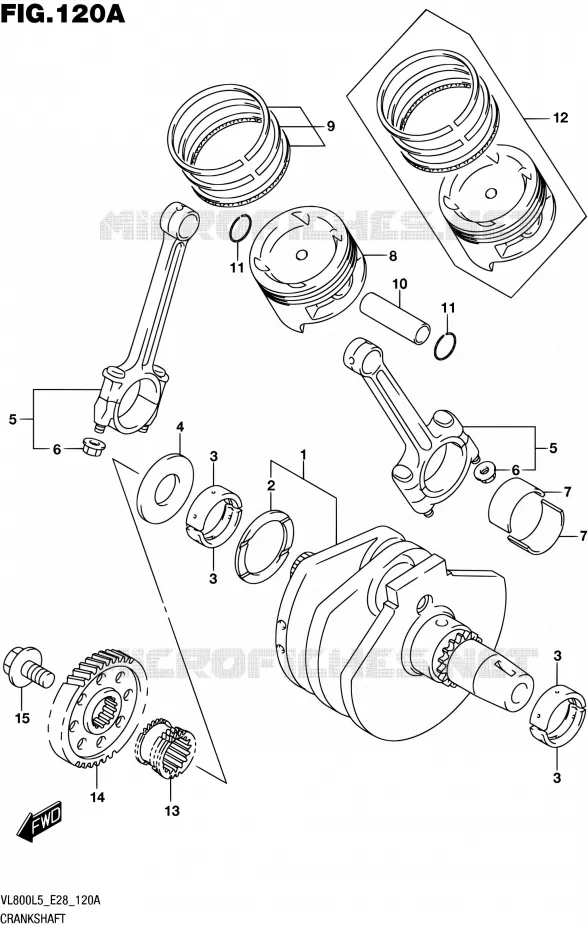

CRANKSHAFT FOR SUZUKI BOULEVARD 800 2015

STARTER MOTOR CLUTCH

Item numbers

CRANKSHAFT SET

12000-41830-000 1200041830000

$1 298,97

Unit Price

.WASHER (48.1X64X1.94)

09160-48001-000 0916048001000

$43,97

Unit Price

.WASHER (48.1X64X1.96)

09160-48002-000 0916048002000

$39,97

Unit Price

.WASHER (48.1X64X1.99)

09160-48003-000 0916048003000

$39,97

Unit Price

.WASHER (48.1X64X2.01)

09160-48004-000 0916048004000

$39,97

Unit Price

.WASHER (48.1X64X2.04)

09160-48005-000 0916048005000

$36,97

Unit Price

.WASHER (48.1X64X2.06)

09160-48006-000 0916048006000

$39,97

Unit Price

.WASHER (48.1X64X2.09)

09160-48007-000 0916048007000

$41,97

Unit Price

.WASHER (48.1X64X2.11)

09160-48008-000 0916048008000

$39,97

Unit Price

.WASHER (48.1X64X2.14)

09160-48009-000 0916048009000

$37,97

Unit Price

.WASHER (48.1X64X2.16)

09160-48010-000 0916048010000

$39,97

Unit Price

BEARING, CRANKSHAFT
BEARING, CRANKSHAFT (GREEN)

12229-39G00-0A0 1222939G000A0

$20,97

Unit Price

BEARING, CRANKSHAFT
BEARING, CRANKSHAFT (BLACK)

12229-39G00-0B0 1222939G000B0

$20,97

Unit Price

BEARING, CRANKSHAFT
BEARING, CRANKSHAFT (BROWN)

12229-39G00-0C0 1222939G000C0

$20,97

Unit Price

WASHER, CRANK THRUST

12652-38A00-000 1265238A00000

$73,97

Unit Price

CONNECTING ROD ASSY
ROD ASSY, CONNECTING

12160-45C30-000

Not available

.NUT

09159-09001-000 0915909001000

$6,97

Unit Price

BEARING, CRANK PIN
BEARING, CRANK PIN (GREEN)

12164-38E00-0A0 1216438E000A0

$15,97

Unit Price

BEARING, CRANK PIN
BEARING, CRANK PIN (BLACK)

12164-38E00-0B0 1216438E000B0

$16,97

Unit Price

BEARING, CRANK PIN
BEARING, CRANK PIN (BROWN)

12164-38E00-0C0 1216438E000C0

$15,97

Unit Price

BEARING, CRANK PIN
BEARING, CRANK PIN (YELLOW)

12164-38E00-0D0 1216438E000D0

$16,97

Unit Price

BEARING, CRANK PIN
BEARING, CRANK PIN (BLUE)

12164-38E00-0E0 1216438E000E0

$16,97

Unit Price

PISTON

12111-41F10-0F0 1211141F100F0

$138,97

Unit Price

RING SET, PISTON

12140-41F00-000 1214041F00000

$67,97

Unit Price

PIN, PISTON

12151-24A00-000 1215124A00000

$25,97

Unit Price

CIRCLIP PISTON PIN
SNAP RING

09381-20004-000 0938120004000

$2,97

Unit Price

PISTON SET, OS 0.5
PISTON SET (OS:0.5)

12100-41F10-050 1210041F10050

$158,97

Unit Price

SPROCKET, CAM CHAIN DRIVE, R
SPROCKET, CAM CHAIN DRIVE RH (NT:21)

12731-38A00-000 1273138A00000

$52,97

Unit Price

GEAR, PRIMARY DRIVE
GEAR, PRIMARY DRIVE (NT:42)

21111-38A00-000 2111138A00000

$115,97

Unit Price

BOLT (12X28)

09103-12013-000 0910312013000

$11,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CRANKSHAFT of your Suzuki BOULEVARD 800 of BOULEVARD. Let us know if you have any questions.
