Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

REAR FENDER (MODEL N / P / R) REFER TO FIG.45A(I-15) FOR MODEL S

REAR FENDER (MODEL S) FOR SUZUKI INTRUDER 800 1992

REAR FENDER (MODEL T / V)

Item numbers

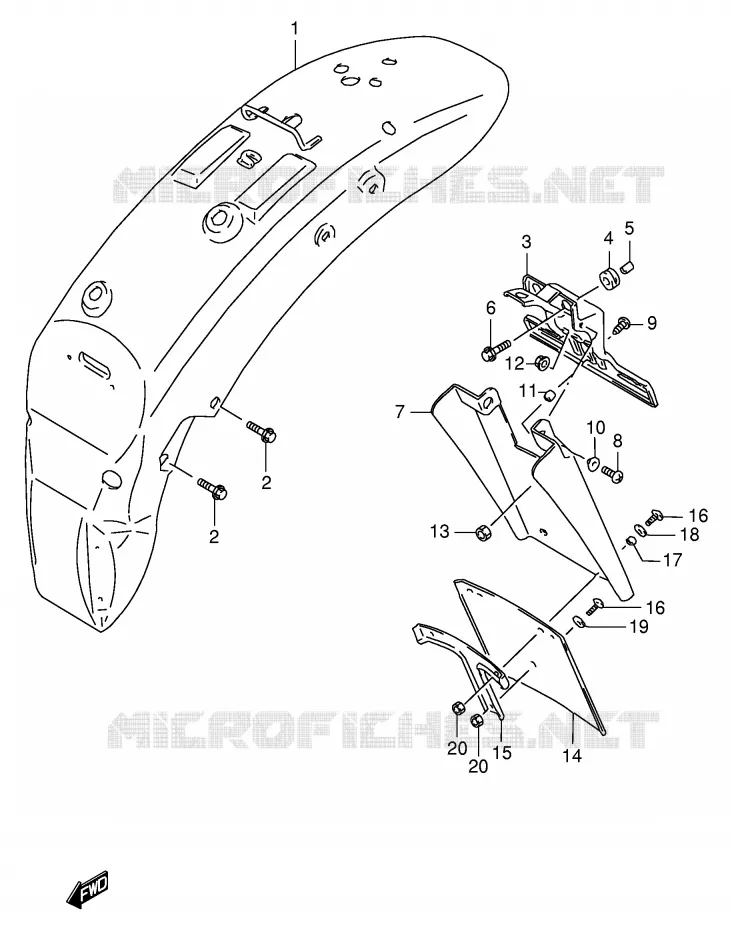

REAR FENDER (MODEL S) Suzuki MOTO 800 INTRUDER 1992 VS800GLN(E2)
1
1
1
1
2
2
3
4
5
6
7
7
8
9
10
11
12
13
14
15
16
16
17
18
19
20
20
1
DISCONTINUE
FENDER, REAR (MAROON)

63110-38A00-20F   6311038A0020F

6311038A0020F
Not available
1
DISCONTINUE
FENDER, REAR (BLACK)

63110-38A00-33J   6311038A0033J

6311038A0033J
Not available
1
FENDER, REAR (MAROON)

63110-38A30-20F   6311038A3020F

6311038A3020F
Not available
1
FENDER, REAR (BLACK)

63110-38A30-33J   6311038A3033J

6311038A3033J
Not available
2
BOLT

01550-06103-000  

01550-0610B-000
 0155006103000

Unit Price

3
BRACKET, LICENSE LAMP

35920-38A00-000   3592038A00000

3592038A00000
Not available
4
CUSHION
CUSHION, LICENSE LAMP

35765-38A30-000   3576538A30000

3576538A30000

Unit Price

5
SPACER
SPACER, LICENSE LAMP

35766-38A00-000   3576638A00000

3576638A00000

Unit Price

6
BOLT

09116-06083-000  

09116-06167-000
 0911606083000

Unit Price

7
EXTENSION, REAR FENDER

63311-38A10-000   6331138A10000

6331138A10000
Not available
7
EXTENSION, REAR FENDER

63311-38A20-000   6331138A20000

6331138A20000
Not available
8
SCREW

02142-06163-000  

02142-0616A-000
 0214206163000

Unit Price

9
SCREW

02112-06163-000  

02112-0616A-000
 0211206163000

Unit Price

10
LOCK WASHER

09169-06037-000  

09169-06011-000
 0916906037000

Unit Price

11
SPACER(6.2X8.3X6.1)<br />SPACER
SPACER(6.2X8.3X6.1)
SPACER

09180-06092-000   0918006092000

0918006092000

Unit Price

12
NUT

08316-20063-000  

08316-10067-000
 0831620063000

Unit Price

13
NUT

08319-31065-000  

08319-3106A-000
 0831931065000

Unit Price

14
MUD FLAP, REAR FENDER

63332-43520-000   6333243520000

6333243520000
Not available
15
PLATE, MUD FLAP

63312-38A00-000   6331238A00000

6331238A00000
Not available
16
SCREW

02142-05123-000  

02142-0512A-000
 0214205123000

Unit Price

17
SPACER(5.5X8X4)

09180-05015-000  

09180-05046-000
 0918005015000

Unit Price

18
WASHER

08322-01053-000  

08322-0105B-000
 0832201053000

Unit Price

19
WASHER(5.5X16X1.2)<br />WASHER, LOWER
WASHER(5.5X16X1.2)
WASHER, LOWER

09160-05037-000   0916005037000

0916005037000

Unit Price

20
NUT

08319-21055-000  

08319-2105A-000
 0831921055000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
