Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

FRONT FORK (MODEL N / P / R / S) REFER TO FIG.48A(K-3) FOR MODEL T/V

FRONT FORK (MODEL T / V) FOR SUZUKI INTRUDER 800 1992

STEERING COLUMN (MODEL N / P / R) REFER TO FIG.49A(K-5) FOR MODEL S

Item numbers

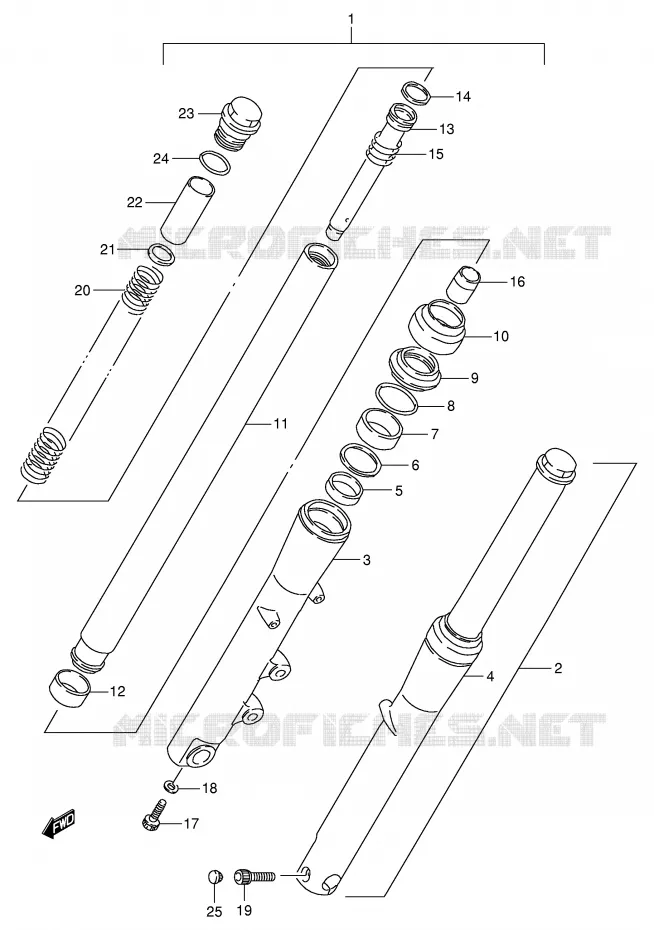

FRONT FORK (MODEL T/V) Suzuki MOTO 800 INTRUDER 1992 VS800GLN(E2)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
1
DISCONTINUE
DAMPER ASSY, FRONT FORK RH

51103-39A41-000   5110339A41000

5110339A41000
Not available
2
DISCONTINUE
DAMPER ASSY, FRONT FORK LH

51104-39A41-000   5110439A41000

5110439A41000
Not available
3
DISCONTINUE
TUBE, OUTER RH

51131-39A00-000   5113139A00000

5113139A00000
Not available
4
DISCONTINUE
TUBE, OUTER LH

51141-39A00-000   5114139A00000

5114139A00000
Not available
5
BUSH, GUIDE

51152-39A40-000   5115239A40000

5115239A40000

Unit Price

6
SPACER, SEAL

51168-39A00-000   5116839A00000

5116839A00000

Unit Price

7
SEAL, OIL
OIL SEAL

51153-19D00-000   5115319D00000

5115319D00000

Unit Price

8
RING, OIL SEAL STOPPER
RING, STOPPER

51156-32B00-000   5115632B00000

5115632B00000

Unit Price

9
SEAL, DUST
DUST SEAL

51173-19D00-000   5117319D00000

5117319D00000

Unit Price

10
COVER, CASE

51572-38B00-000   5157238B00000

5157238B00000

Unit Price

11
DISCONTINUE
TUBE, INNER

51110-39A41-000   5111039A41000

5111039A41000
Not available
12
BUSH, SLIDE

51121-39A40-000   5112139A40000

5112139A40000

Unit Price

13
DISCONTINUE
PIPE, SEAT

51146-39A00-000   5114639A00000

5114639A00000
Not available
14
RING, PISTON

51196-32B00-000   5119632B00000

5119632B00000

Unit Price

15
SPRING, REBOUND

51177-32B00-000   5117732B00000

5117732B00000

Unit Price

16
PIECE, OIL LOCK

51195-38B00-000   5119538B00000

5119538B00000

Unit Price

17
BOLT(8X27)<br />BOLT
BOLT(8X27)
BOLT

51147-48130-000   5114748130000

5114748130000

Unit Price

18
GASKET
GASKET

51148-36011-000   5114836011000

5114836011000

Unit Price

19
BOLT<br />BOLT, RH
BOLT
BOLT, RH

07130-08357-000   0713008357000

0713008357000

Unit Price

20
SPRING

51171-39A00-000   5117139A00000

5117139A00000

Unit Price

21
WASHER, SPRING
JOINT, SPRING

51172-32B00-000   5117232B00000

5117232B00000

Unit Price

22
COLLAR, SPRING
SPACER, SPRING

51176-39A00-000   5117639A00000

5117639A00000

Unit Price

23
BOLT, FORK
BOLT, INNER TUBE

51351-39A00-000   5135139A00000

5135139A00000

Unit Price

24
O RING

51117-39A00-000   5111739A00000

5111739A00000

Unit Price

25
CAP

09250-06009-000   0925006009000

0925006009000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
