SWINGARM

REAR WHEEL FOR SUZUKI INTRUDER 800 1992

OPTIONS

Item numbers

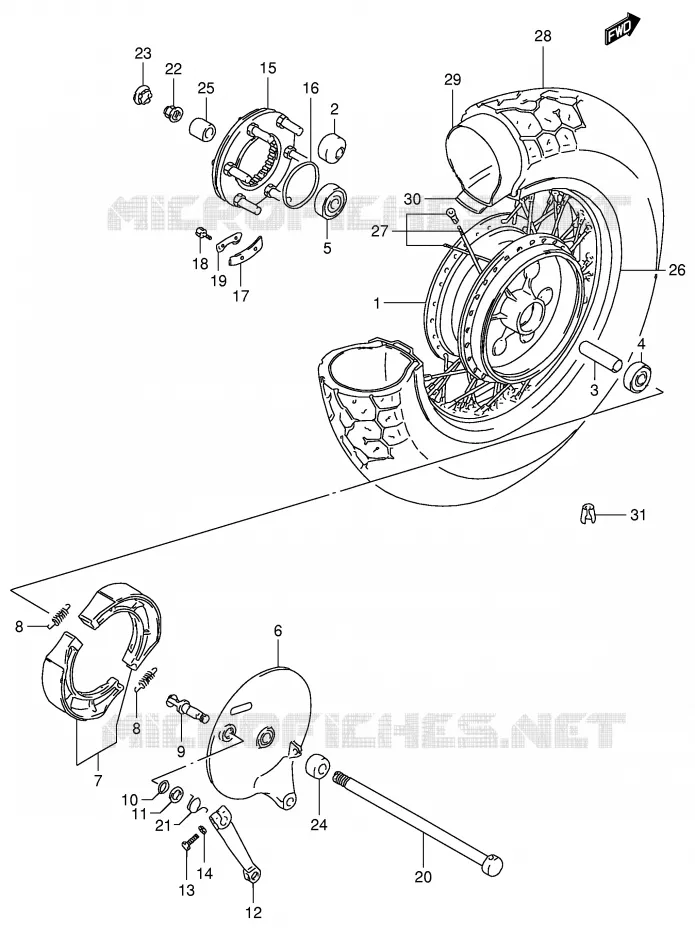

REAR WHEEL Suzuki MOTO 800 INTRUDER 1992 VS800GLN(E2)
1
1
2
3
4
5
6
7
8
8
9
9
10
11
12
13
13
13
14
15
15
16
17
18
19
20
21
22
23
24
25
26
26
26
27
27
27
28
29
30
31
31
1
DISCONTINUE

64100-07860-000  

6410007860000
Not available
2
BUSH
BUSHING

09319-12019-000   0931912019000

0931912019000

Unit Price

3
SPACER, REAR HUB (17.5X25X80)

09180-17091-000   0918017091000

0918017091000
Not available
4
BEARING
BEARING

08133-62037-000  

08133-6203B-000
 0813362037000

Unit Price

5
B. BEARING 17X47X14<br />BEARING, LH
B. BEARING 17X47X14
BEARING, LH

08143-63037-000   0814363037000

0814363037000

Unit Price

6
PANEL, RR BRAKE ANCHOR

64210-38A20-000  

64210-38A21-000
 6421038A20000

Unit Price

7
SHOE SET, BRAKE

64400-38810-000   6440038810000

6440038810000

Unit Price

8
SPRING,BRAKE SHOE<br />SPRING, SHOE
SPRING, BRAKE SHOE
SPRING, SHOE

55420-30000-000   5542030000000

5542030000000

Unit Price

9
CAM, RR BRAKE
CAM, BRAKE

64441-38A20-000   6444138A20000

6444138A20000

Unit Price

9
DISCONTINUE<br />CAM, BRAKE
DISCONTINUE
CAM, BRAKE

64440-38A00-000   6444038A00000

6444038A00000
Not available
10
O'RING<br />O RING (ID:14.8,D:2.40)
O'RING
O RING (ID:14.8, D:2.40)

09280-15003-000   0928015003000

0928015003000

Unit Price

11
WASHER, 15.5X24X1.6

09160-15001-000  

09160-15048-000
 0916015001000

Unit Price

12
LEVER, RR BRAKE CAM
LEVER, BRAKE CAM

64451-38A01-000   6445138A01000

6445138A01000

Unit Price

13
BOLT

01107-06257-000  

01500-06257-000
 0110706257000

Unit Price

13
BOLT

01570-06257-000   0157006257000

0157006257000

Unit Price

13
BOLT

01137-06258-000   0113706258000

0113706258000
Not available
14
WASHER, LOCK

08321-21067-000  

08321-01067-000
 0832121067000

Unit Price

15
JOINT ASSY, RR HUB DRIVEN

64680-07A01-000  

64680-45113-000
 6468007A01000

Unit Price

16
O RING, D:2.1, ID:65
O RING (ID:65, D:2.10)

09280-65003-000   0928065003000

0928065003000

Unit Price

17
WASHER, THRUST(T:1.6)
WASHER, THRUST

64677-45110-000   6467745110000

6467745110000

Unit Price

18
BOLT (6X16)

09119-06049-000   0911906049000

0911906049000

Unit Price

19
WASHER

09169-06030-000   0916906030000

0916906030000

Unit Price

20
AXLE, RR
AXLE, REAR (L:302)

64711-38A11-000   6471138A11000

6471138A11000

Unit Price

21
SPRING ****
SPRING, CAM

09448-33006-000   0944833006000

0944833006000

Unit Price

22
NUT

08319-31148-000  

08319-3114A-000
 0831931148000

Unit Price

23
CAP, RR AXLE, R
CAP, RH

64791-38B00-000   6479138B00000

6479138B00000

Unit Price

24
SPACER, RR AXLE, L

64741-38A22-000  

64751-46D00-000
 6474138A22000

Unit Price

25
SPACER, RR AXLE, L
SPACER, LH

64772-34201-000   6477234201000

6477234201000

Unit Price

26
DISCONTINUE

65311-38A01-000  

6531138A01000
Not available
27
SPOKE ASSY, RR WHEEL

65320-38A01-000  

65320-38A02-000
 6532038A01000

Unit Price

28
DISCONTINUE
TIRE, REAR (140/90-15 M/C 70H) (BRIDGESTONE)

65100-38A41-000   6510038A41000

6510038A41000
Not available
29
DISCONTINUE

65200-38A00-000  

6520038A00000
Not available
30
DISCONTINUE
PROTECTOR, INNER TUBE

65261-38A00-000   6526138A00000

6526138A00000
Not available
31
BALANCER, WHEEL(30G)

55412-38A00-000  

55412-41F00-000
 5541238A00000

Unit Price

31
BALANCER, WHEEL(30G)

55413-38A00-000  

55413-41F00-000
 5541338A00000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
